PICO840/842 Pico-ITX Board

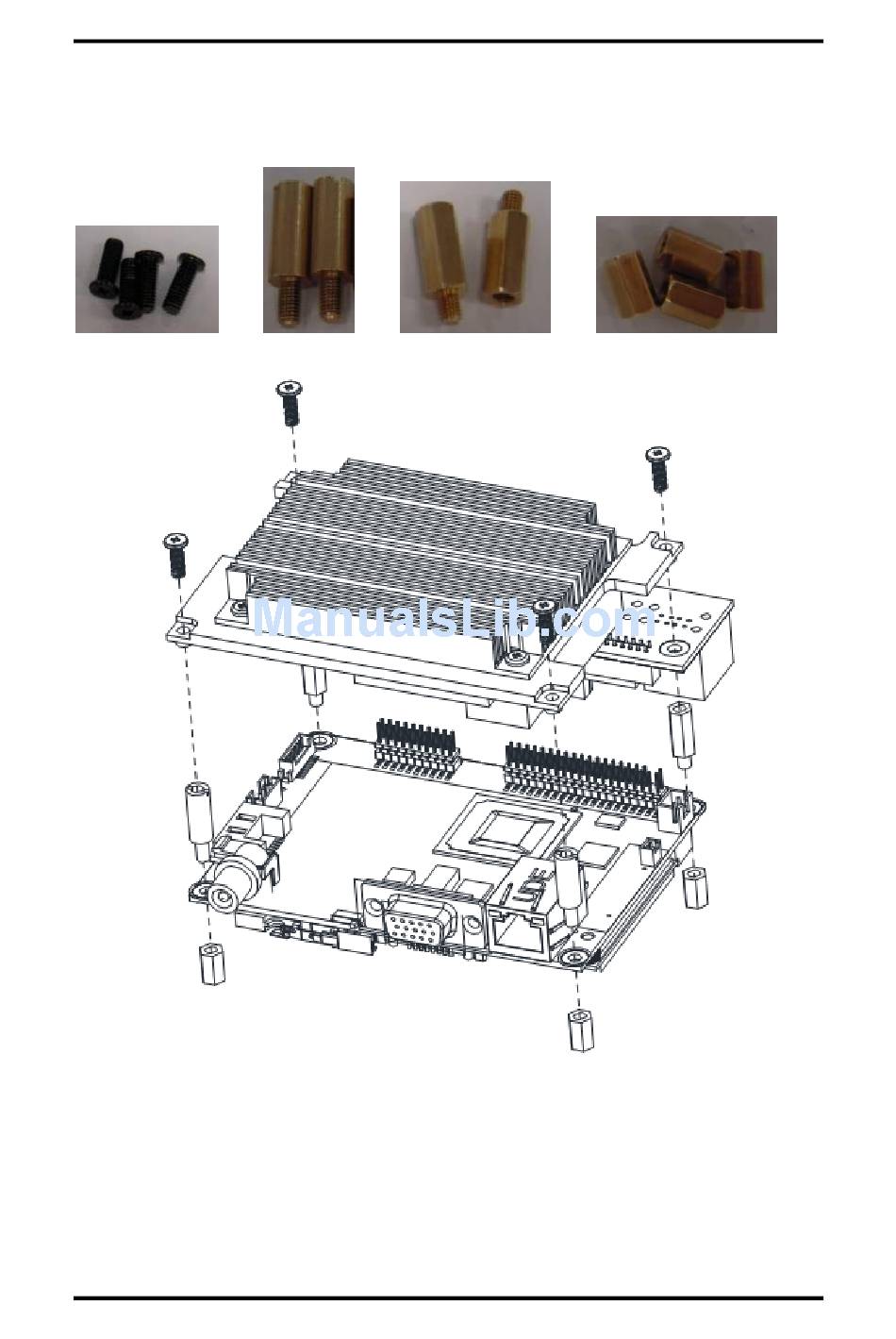

Installing Heatspreader and AX93283 I/O Board
Gently insert I/O board into CN12 and CN13. Align and firmly secure the heatspreader plate
and I/O board to PICO840/842. Be careful not to over-tighten the screws. See chapter 3 for
more details of AX93283 I/O board.
x4
x2
x2
x4
Board and Pin Assignments
11
