PICO840/842 Pico-ITX Board

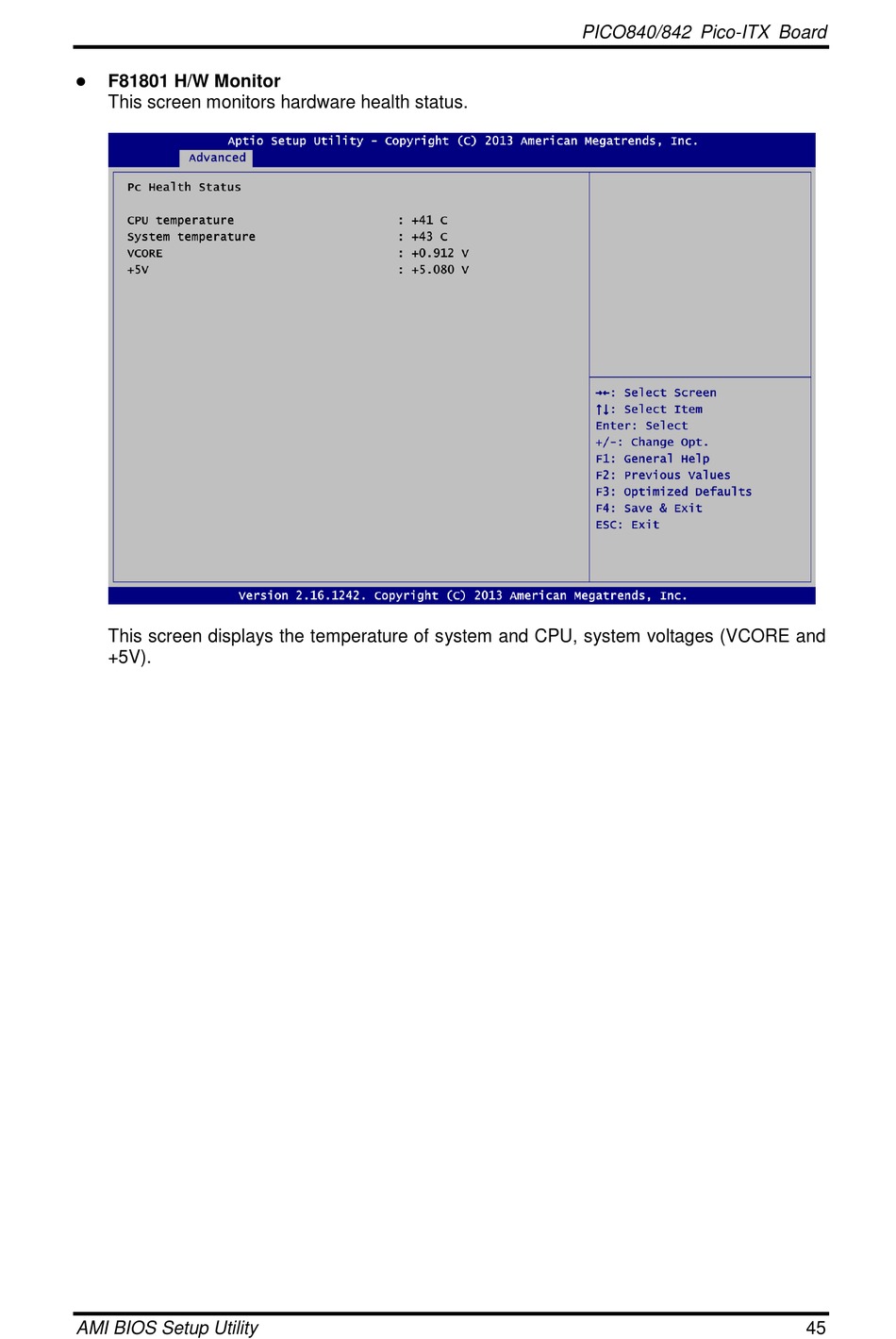

F81801 H/W Monitor
This screen monitors hardware health status.
This screen displays the temperature of system and CPU, system voltages (VCORE and
+5V).
AMI BIOS Setup Utility
45
