PICO840/842 Pico-ITX Board

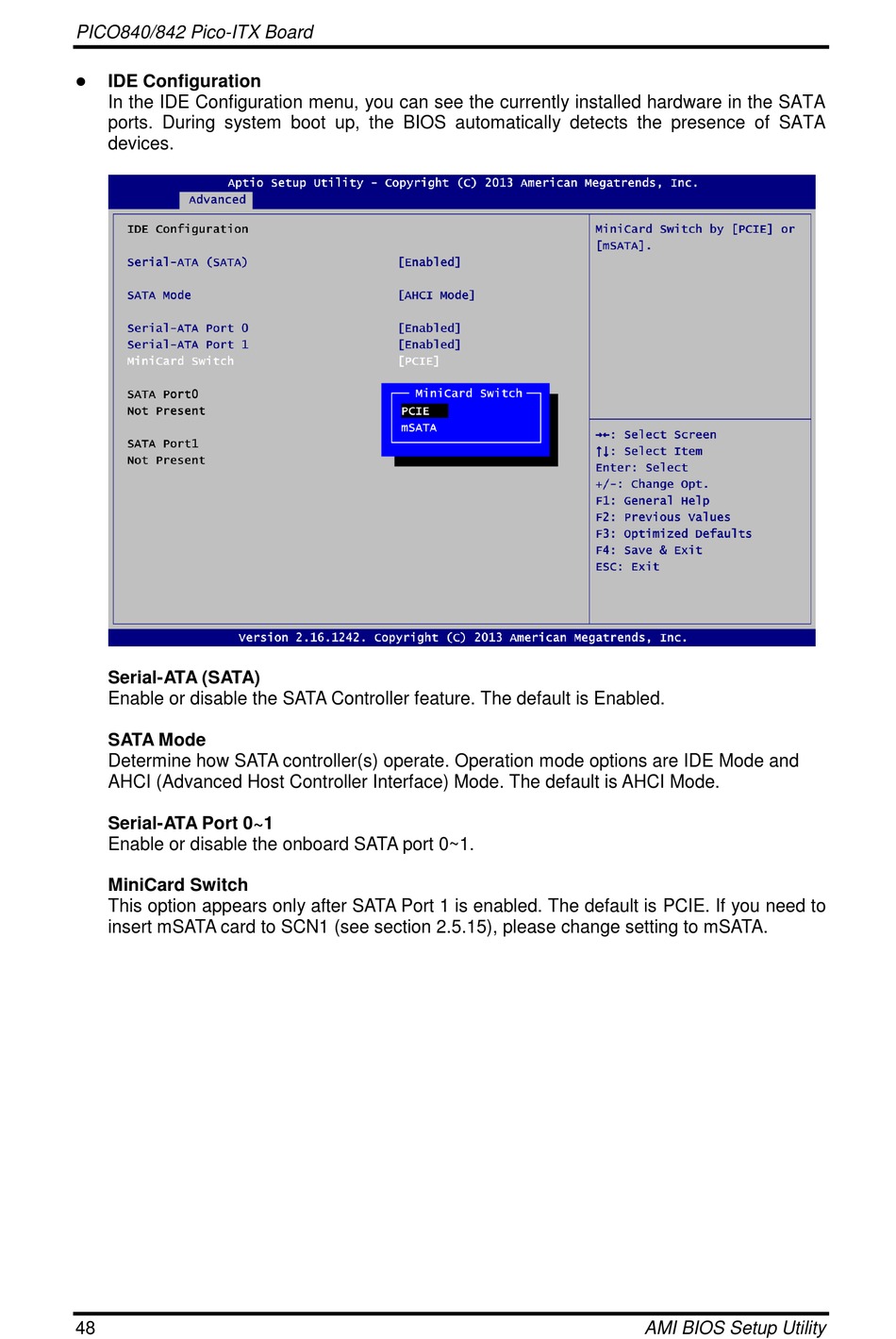

 IDE Configuration
In the IDE Configuration menu, you can see the currently installed hardware in the SATA
ports. During system boot up, the BIOS automatically detects the presence of SATA
devices.
Serial-ATA (SATA)
Enable or disable the SATA Controller feature. The default is Enabled.
SATA Mode
Determine how SATA controller(s) operate. Operation mode options are IDE Mode and
AHCI (Advanced Host Controller Interface) Mode. The default is AHCI Mode.
Serial-ATA Port 0~1
Enable or disable the onboard SATA port 0~1.
MiniCard Switch
This option appears only after SATA Port 1 is enabled. The default is PCIE. If you need to
insert mSATA card to SCN1 (see section 2.5.15), please change setting to mSATA.
48 AMI BIOS Setup Utility
