PICO840/842 Pico-ITX Board
For thermal dissipation, a heatspreader enables the PICO840/842's components to dissipate
heat efficiently. Images below illustrate how to install the heat spreader.
Installing Heatspreader

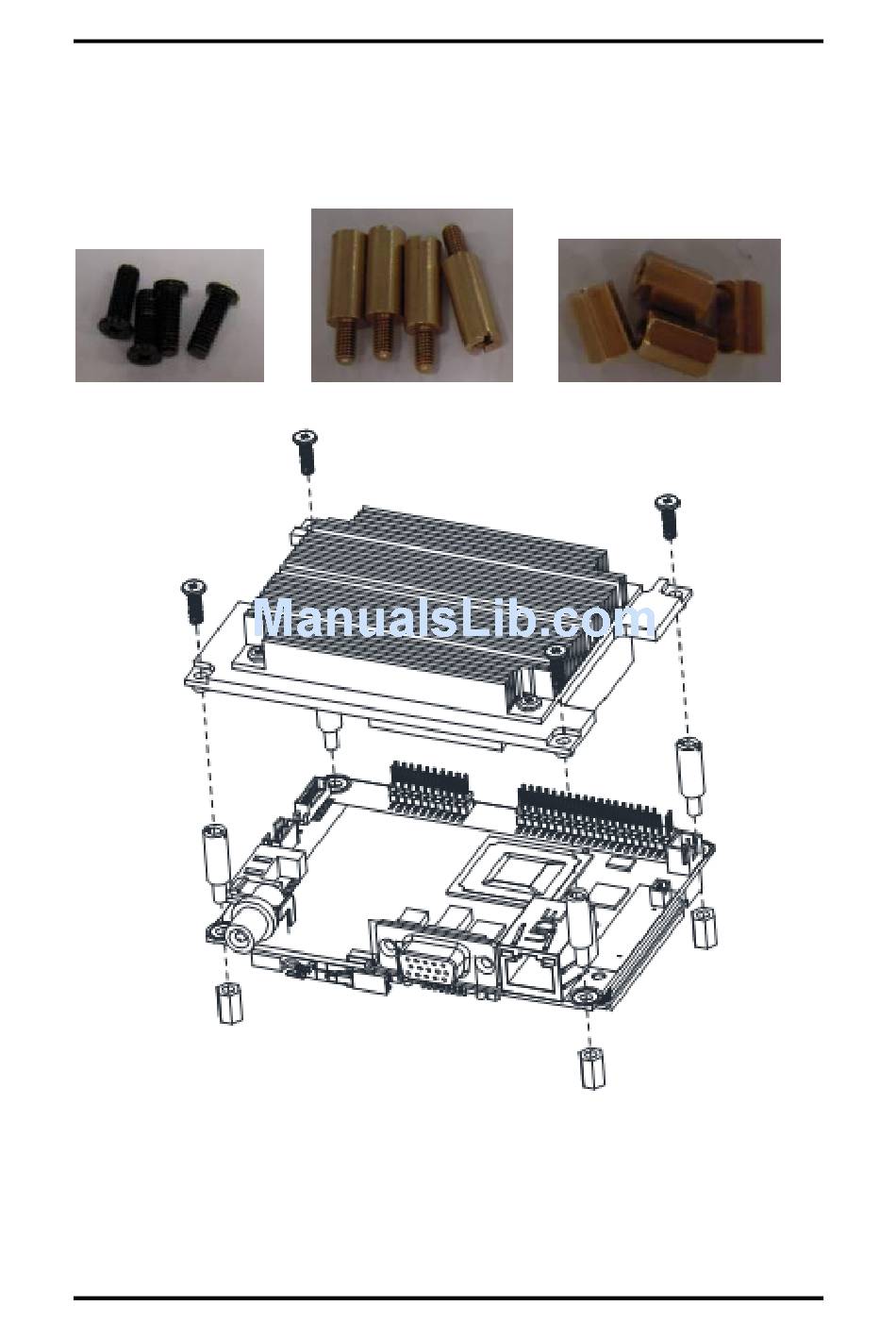

The PICO840/842 has four assembly holes for installing heatspreader plate. Align and firmly
secure the heatspreader plate to the PICO840/842. Be careful not to over-tighten the screws.
x4
x4
x4
