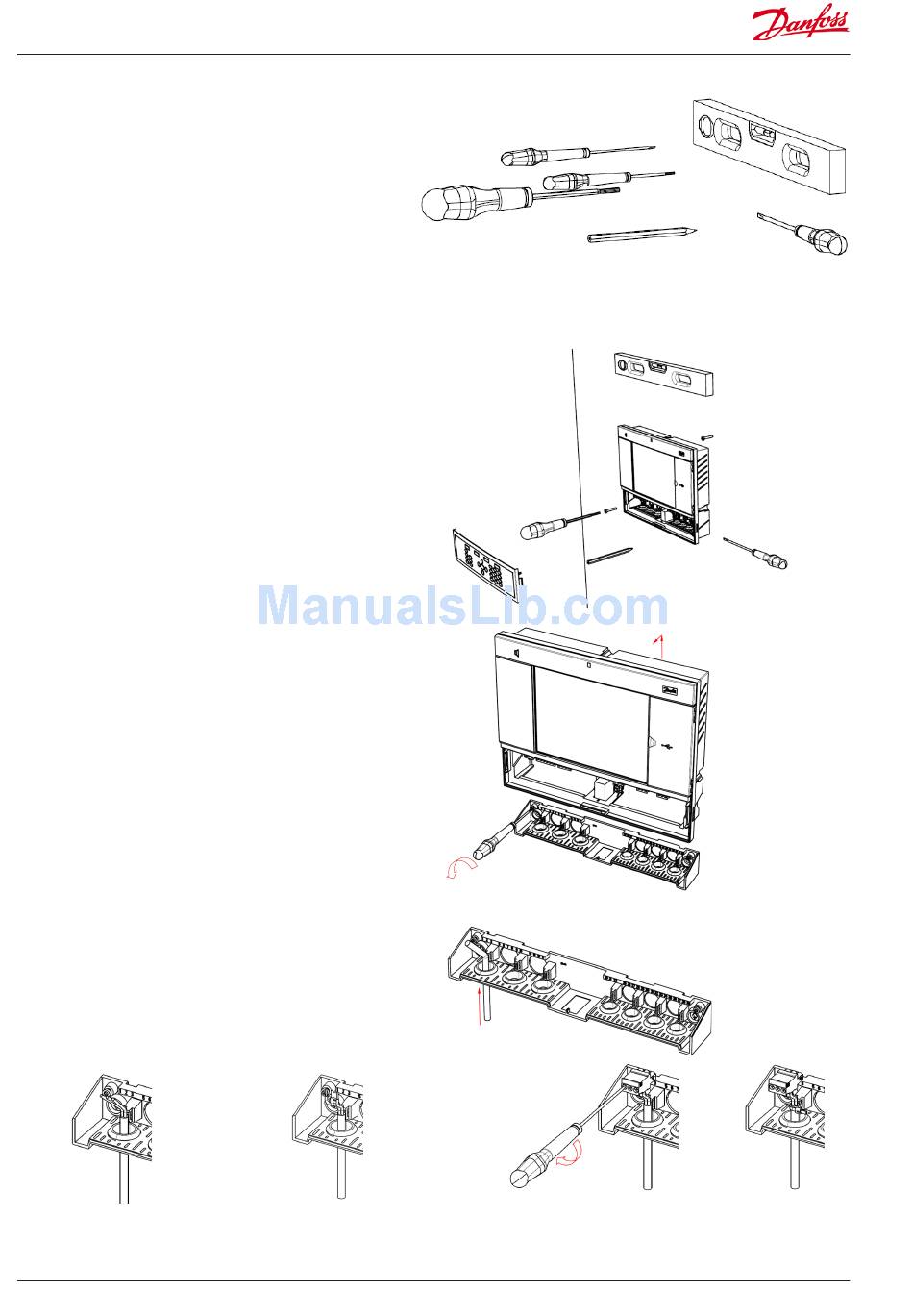

Installation

Tools needed
Bubble level
Small slotted screwdriver for connector screws
Torx 8 screwdriver for releasing the electronic unit and for
fastening the unit when recessed mounted
Screwdriver for fixating the AK-SM 850
Pen for marking the 2 lower fixation holes
Larger slotted screwdriver for releasing the Technician lid
Wall Mounting- box
Attach screw to the wall
Mount AK-SM 850 to the screw
Loosen Technician lid (three sides)
Remove Technician lid
Level the AK-SM 850
If drilling is necessary, mark up 2 screws in Connector part.
Attach the Connector part to the wall using another 2 screws
Wall Mounting- wiring
Insert cables through the rubber grommets
Secure wires in connectors by screwdriver
Strip the cables Strip the wires
Strain relief the cables
