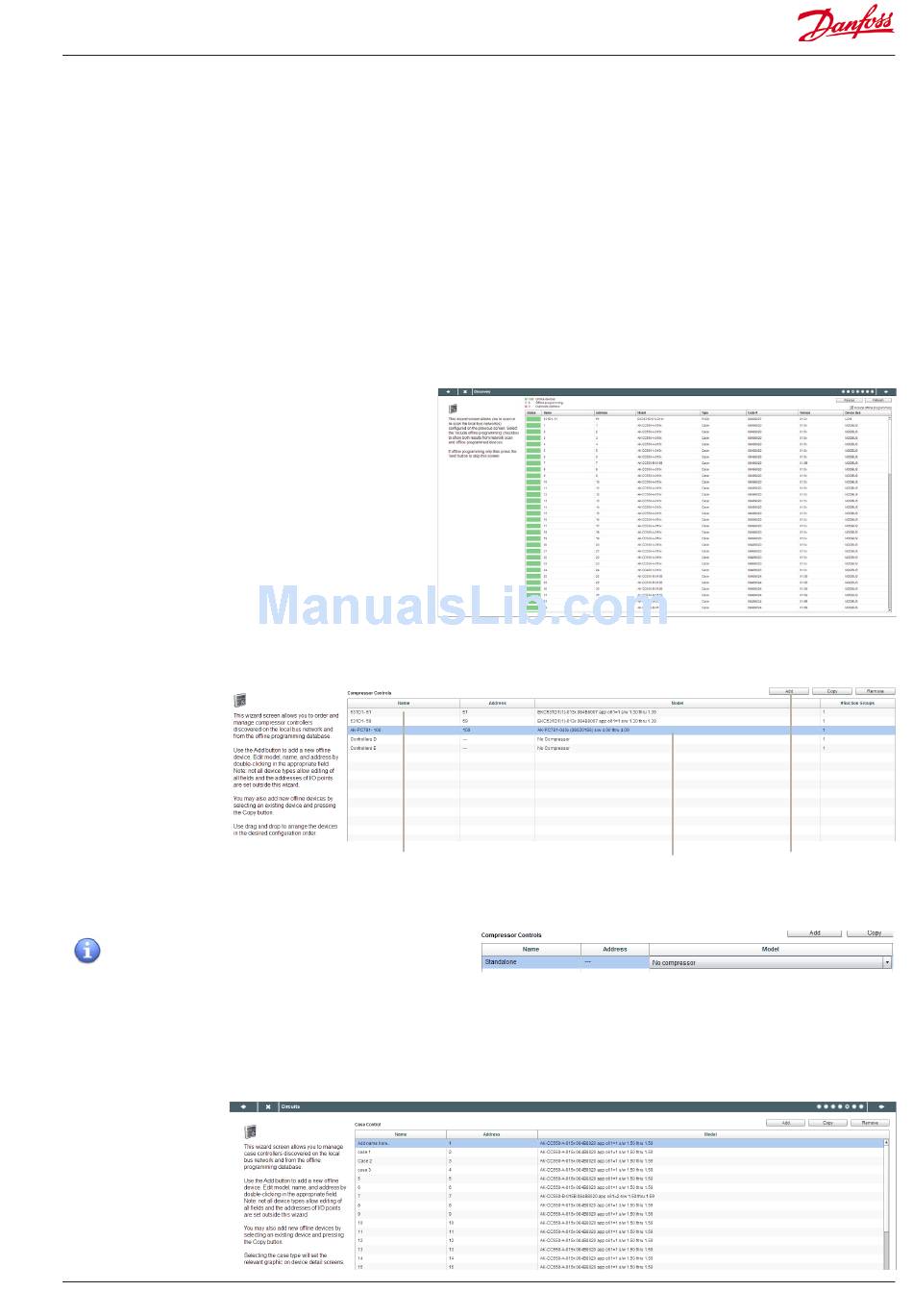

Open the Refrigeration layout wizard and follow the described
steps, each step has some description for the available actions.
The following wizard screens are available in sequential order;
Network (select and perform network scan)
Discovery (list scanned devices)
Compressors (Input Pack controller name, view address, model,
add, copy, remove)
Circuits (Input Evaporator controller name, view address, model,
add, copy, remove)
Suction Group mapping (Drag and drop your evap controllers
under each pack)
Summary (view your groupings before finishing wizard and thus
processing your selections to the AK-SM)
After the relevant networks have been selected an scanned the
'Discovery' screen will show all detected devices. Once satisfied
with the correct content press the forward button to continue
the wizard.
The 'Compressors' screen allows for custom text input. If working
offline (programming a database not being connected to a
AK-SM) the Add, Copy and Remove buttons can be used.
Double click the 'Name' line to enter a custom description for the
device. Pressing return will automatically focus on the next
device name in the list.
If your scanned list has known devices that are stan-
dalone (not associated with a Pack) these must be
mapped under 'No Compressor'. Manually add a new
compressor and double click the model line and select
'No Compressor'. When the final wizard screen is
presented any standalone controls can be mapped under
this 'No Compressor' group.
The 'Circuits' screen follows the same principle as the Compres-
sors screen.
AK-SM 850 User Guide USCO.PI.R1.E1.02 © Danfoss 07-2013
Lit. no.
Use the Add button when creating offline nodes. Double
click the 'model' line to bring up a selection of nodes
