Danfoss AK-SM 850 User Manual page 34

Configuration -> HISTORY
Controllers

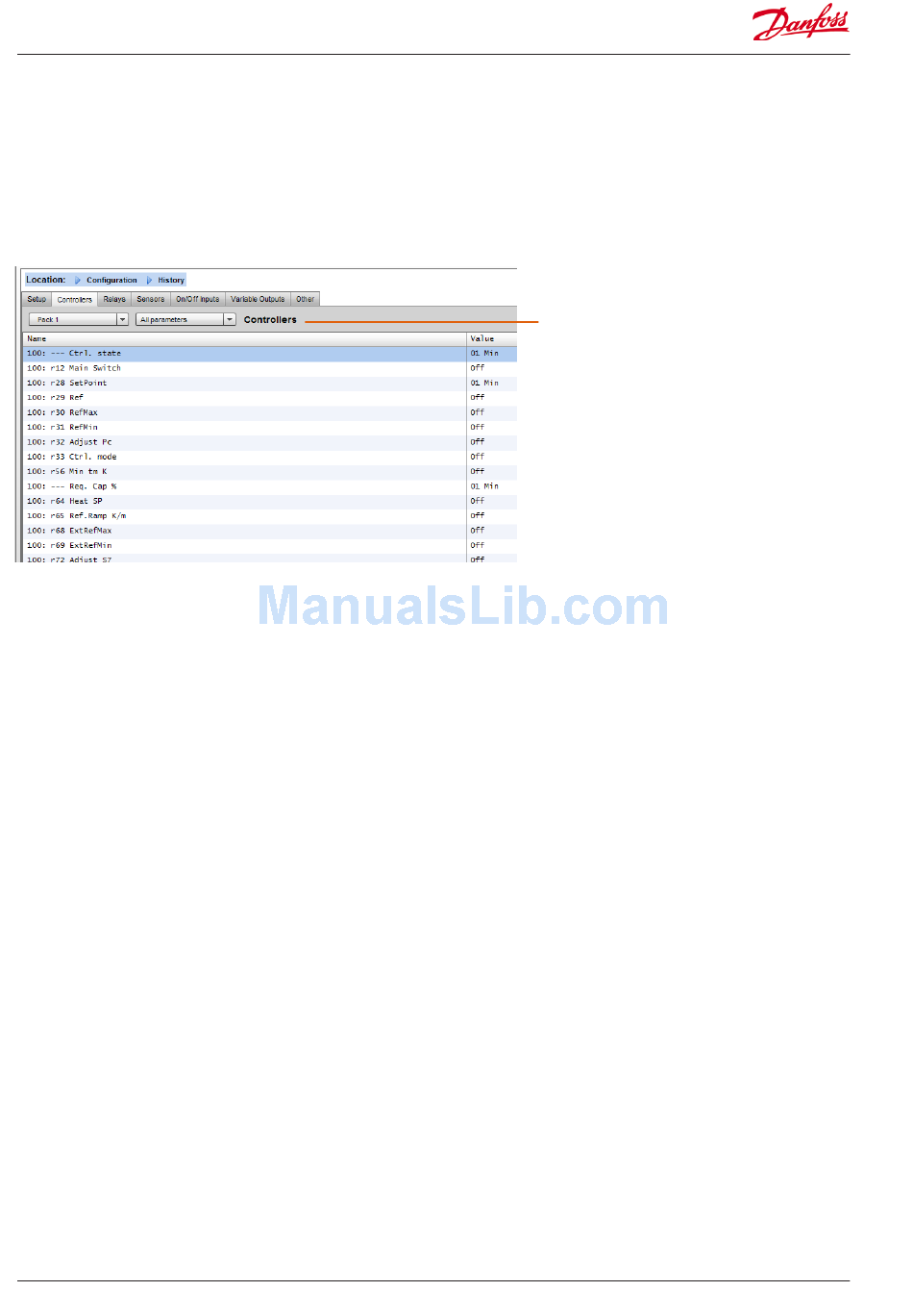

If any controllers are configured for history collection, these can
be seen in the 'Controllers' tab. The example below shows a
evaporator controller with the various control groups accessible
via a drop down menu. Any auto history settings will be seen in
these controller group lists, manual configuration of any param-
eter can be done in this page.
Relays, Sensors, On/Off Inputs, Variable Outputs & Other
Depending on the defined control criteria, other points may be
viewed and modified under the respective tabs.
34 User Guide USCO.PI.R1.E1.02 © Danfoss 07-2013
Lit. no.
Navigate and select appropriate points for
history collection, via the drop down menu
selector. Double click a required line, a pop up
selection box allows the choice of sample rates;
1,2,10,30 mins
1 Hr
AK-SM 850
