Service Tool Support - Danfoss AK-SM 850 User Manual

Service Tool Support

Your AK-SM supports the Danfoss Service Tool (version 3.23 and
higher). The Service Tool (CT) must be connected via an IP
interface. Once an connection is established the ST will show the
AK-SM and all AK2 platform devices. Note that non AK2 platform
based devices will not show up in the ST device list.

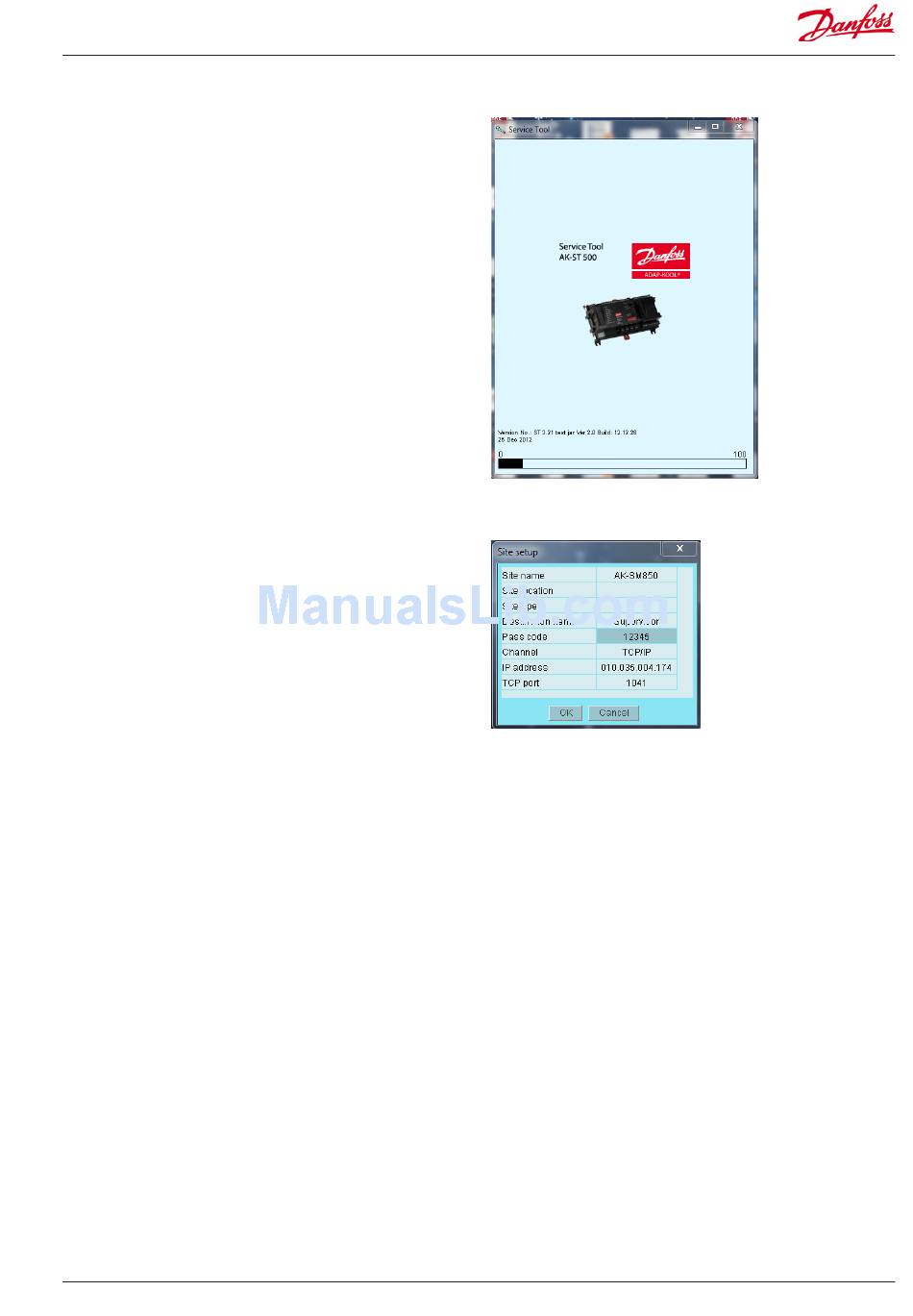

When creating a new connection in your ST make sure you select
TCP/IP channel.
Assuming the factory default user name and password, enter
Supervisor for the Destination name
12345 for the Pass code
Once connected, navigate to your required controller in the
available list. Access to all AK2 parameters is available via this
connection.
AK-SM 850 User Guide USCO.PI.R1.E1.02 © Danfoss 07-2013
Lit. no.
35
