General navigation, operation and use (via web)

Once your AK-SM has been configured, general navigation and
daily use is done via the Dashboard screen. The Dashboard
screen acts as the central system home page, where further
system details can be reached. The Dashboard and subsequent
device screens have been developed to provide an easy to use
navigation environment for the user, where typical status and
setting can be found.

Connecting to your AK-SM:

Using a standard web browser or your StoreView Desktop
application, enter your AK-SM IP address
Translation Tool (used for local language translation)
Download Report (system report of configuration)
Log Off
Use the simulator tool to
simulate configured Misc
points
Data poll refresh info
Active alarm panel
Lighting panel
Once the correct user name and password has been entered the
Dashboard screen will load. The Dashboard screen will only
reflect what your application configuration has been set to. For
example, if your application does not have any HVAC configured
the Dashboard will not show the HVAC panel. Dashboard panels
are automatically generated depending on the configuration, no
user action is required to build the panels.
AK-SM 850
The factory default User name
& password:
User Name: Supervisor
Password: 12345
Dashboard screen System View screen Schedule screen
Global alarms (all
connected AK-SM units)
Expand panel button
Misc panel
User Guide USCO.PI.R1.E1.02 © Danfoss 07-2013
Lit. no.

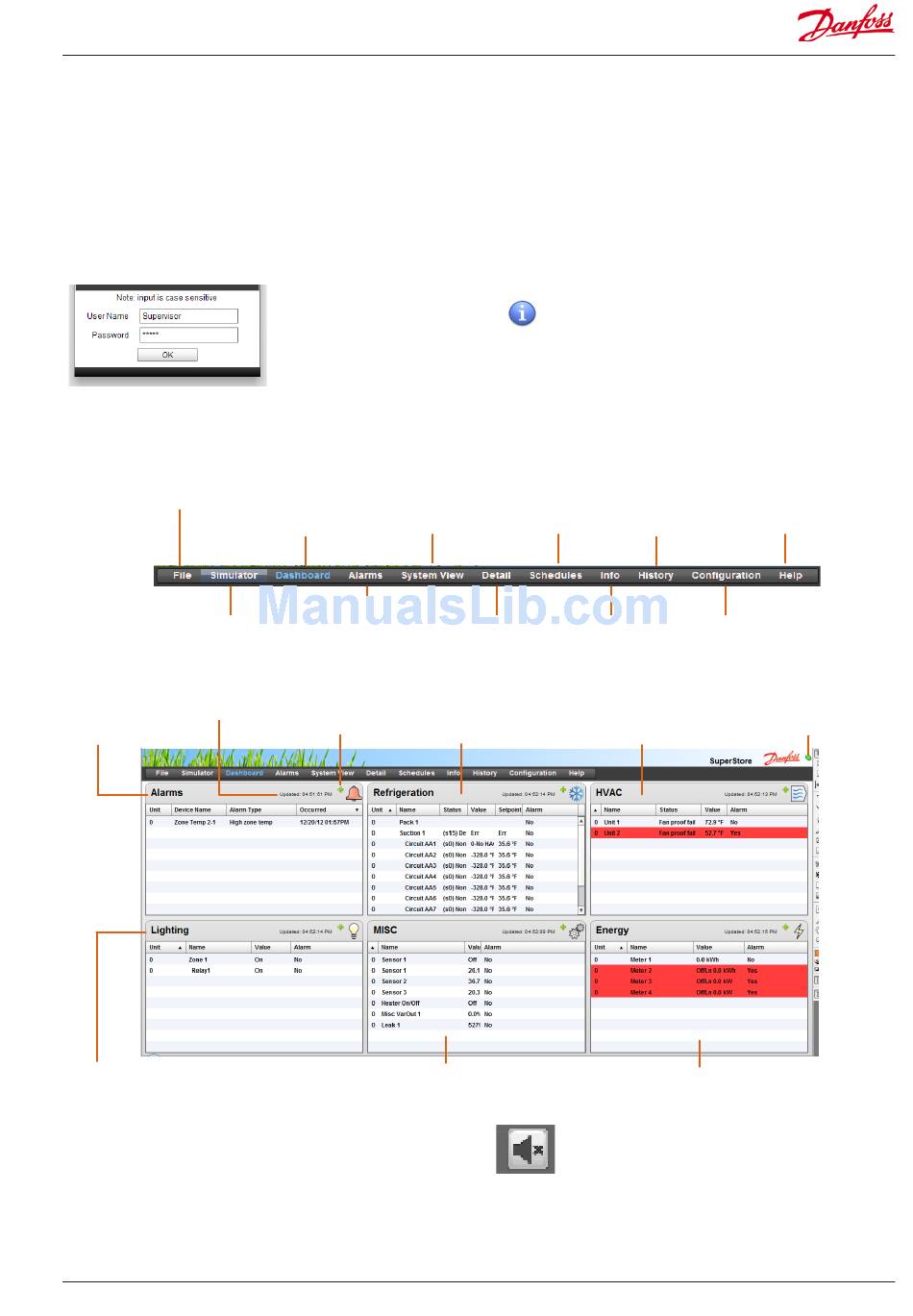

Dashboard view:

Once the correct user name and password has been entered the
Dashboard screen will load. The Dashboard screen will only
reflect what your application configuration has been set to. For
example, if your application does not have any HVAC configured
the Dashboard will not show the HVAC panel. Dashboard panels
are automatically generated depending on the configuration, no
user action is required to build the panels.
To guarantee the best experience when
connecting to your AK-SM, ensure you PC
has the latest version of Adobe® Flash®
Device detail screen Info screen (soft-
ware version, etc)
Refrigeration panel
Upon the Dashboard loading, if any active alarms are
present the built in alarm buzzer can be heard. To silence the
alarm press the silence button. This does not acknowledge or
clear any alarms.
On board quick setup
Histroy (logs)
guide
Central AK-SM configuration
screens
HVAC panel data communication status
Energy panel
