System view:

The system view provides a generic yet graphical view of your
configured controls.
The same principle of the navigation tree can be seen in the left
side of the screen. The system view screen shows any configured
Rack or Pack, with associated evaporator circuits. To see addi-
tional information, hover your mouse pointer over an icon, a pop
up box will appear showing additional information. To view
additional information and gain access to settings click the 'show
Detail' button. A dashboard will slide across, where a Status,
Settings and Manual operation can be seen. Simply click an asset
to highlight and the detail table will update with reference to this
selected device. Once complete with the device settings, close
the dashboard by clicking the 'Hide Detail' button.

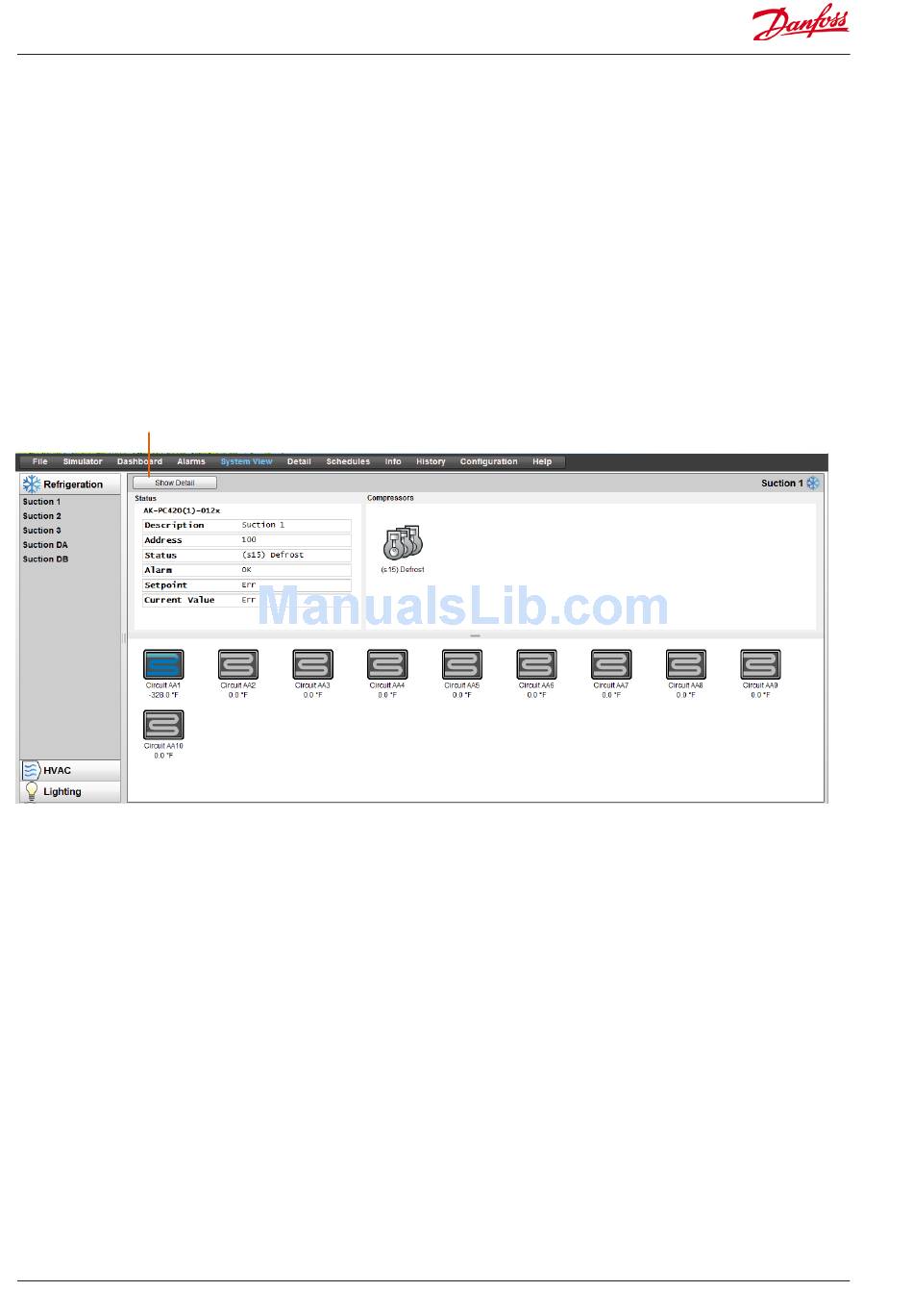

System View (Refrigeration)
Gain access to more details via the 'Show Details' button
