Sensors Tab

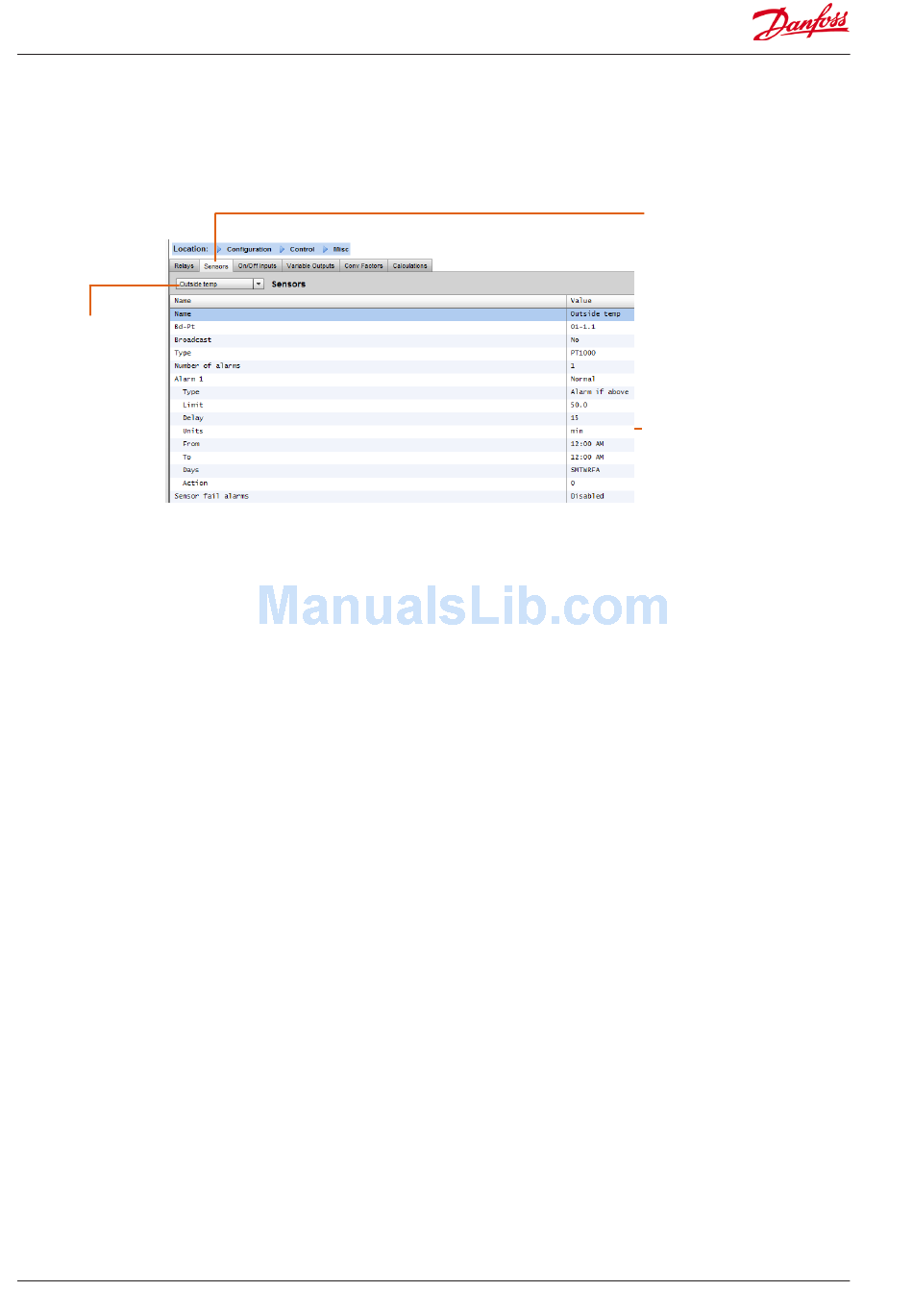

The example below shows the Misc Sensors tab. Navigate down
the control lines and configure as required.
Example of Misc Sensors Tab
If configured, navigate
to additional sensors
via the drop down box
Name: Enter custom description for sensor
Bd-Pt: Enter a valid Board & Point address (using AK I/O modules)
Broadcast:
No: The value of the point will not be broadcast to be used in
logic on other controllers.
Send: The value of the point (whether it is ON or OFF) will be
available on the host network for use by other controllers. Be
sure that each sending Board-Point combination is unique
throughout the system. (If the controller at address #01 is
sending from its Bd-Pt address 1-02, then no other controller
can have an output at its Bd-Pt address 1-02 sending.
Rec: The value of the point is being received from another
controller on the host network. You must enter, in the Bd-Pt
fields, the Bd-Pt address of the sending point.
Type: Select from various option in the drop down list (this
example uses a PT1000 sensor)
Control Input: It is possible to use other defined points (includ-
ing calculations) to act as the control Input, these will be seen in a
drop down list
Number of alarms: Enter the amount of alarms (max 3)
Alarm 1: Enter the alarm level (Disabled, Log only, Normal,
Severe, Critical)
Type: Alarm if above or if below limit (seen below)
Limit: Enter the alarm limit
Delay: Enter delay time
Units: Seconds, Minutes, Hours
From: Defines alarm output time window
To: Defines alarm output time window
Days: Define the days associated with alarm
Action: Define the alarm action
Sensor fail alarms: Enter the alarm level to issue alarm if sensor
fails (Disabled, Log only, Normal, Severe, Critical)
