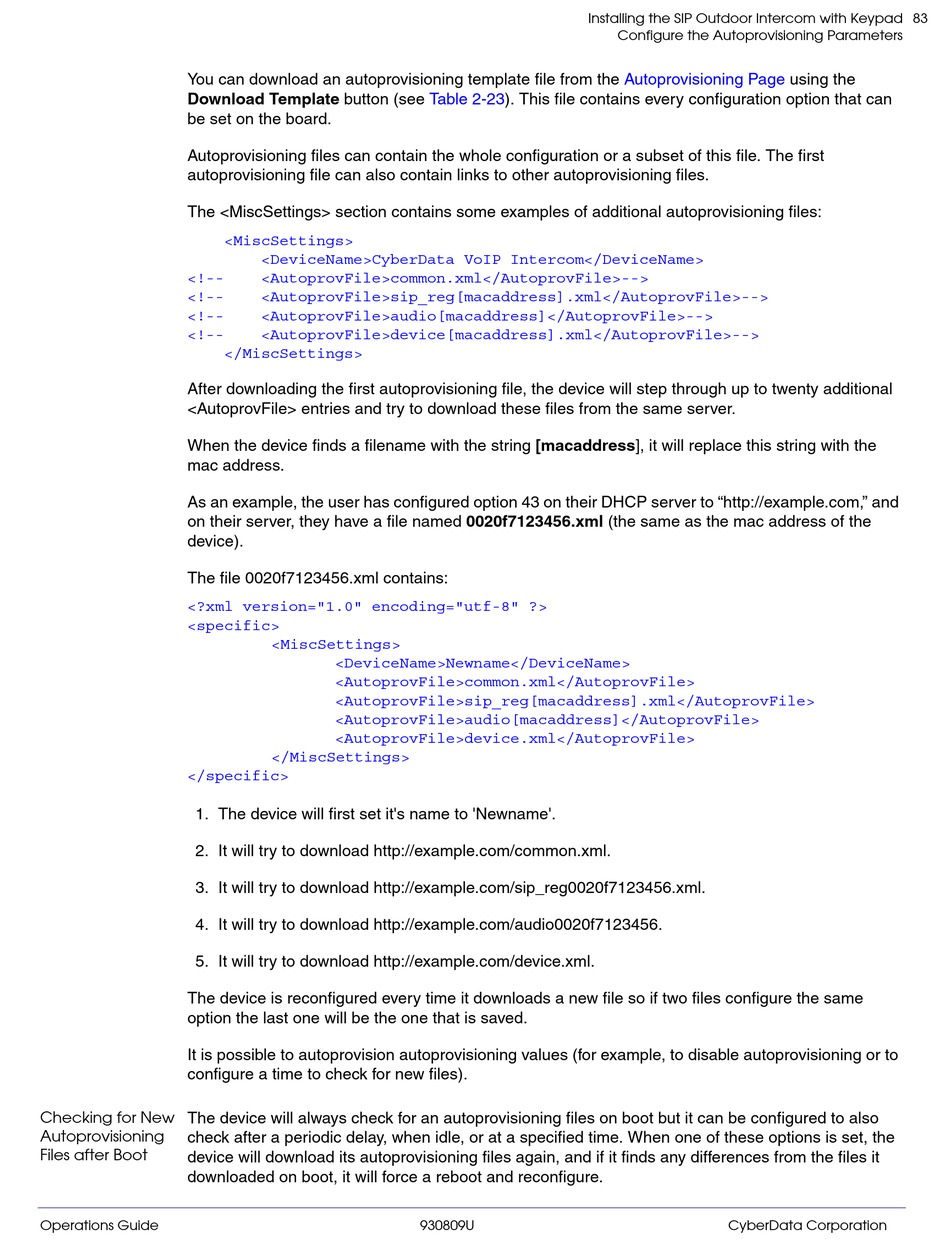

CyberData 011214 Operation Manual page 91

You can download an autoprovisioning template file from the
Download Template button (see
be set on the board.
Autoprovisioning files can contain the whole configuration or a subset of this file. The first
autoprovisioning file can also contain links to other autoprovisioning files.
The <MiscSettings> section contains some examples of additional autoprovisioning files:
<!--
<!--
<!--
<!--
After downloading the first autoprovisioning file, the device will step through up to twenty additional
<AutoprovFile> entries and try to download these files from the same server.
When the device finds a filename with the string [macaddress], it will replace this string with the
mac address.
As an example, the user has configured option 43 on their DHCP server to "http://example.com," and
on their server, they have a file named 0020f7123456.xml (the same as the mac address of the
device).
The file 0020f7123456.xml contains:
<?xml version="1.0" encoding="utf-8" ?>
<specific>
</specific>
1. The device will first set it's name to 'Newname'.
2. It will try to download http://example.com/common.xml.
3. It will try to download http://example.com/sip_reg0020f7123456.xml.
4. It will try to download http://example.com/audio0020f7123456.
5. It will try to download http://example.com/device.xml.
The device is reconfigured every time it downloads a new file so if two files configure the same
option the last one will be the one that is saved.
It is possible to autoprovision autoprovisioning values (for example, to disable autoprovisioning or to
configure a time to check for new files).
Checking for New The device will always check for an autoprovisioning files on boot but it can be configured to also
Autoprovisioning
check after a periodic delay, when idle, or at a specified time. When one of these options is set, the
Files after Boot
device will download its autoprovisioning files again, and if it finds any differences from the files it
downloaded on boot, it will force a reboot and reconfigure.
Operations Guide
<MiscSettings>
<DeviceName>CyberData VoIP Intercom</DeviceName>
<AutoprovFile>common.xml</AutoprovFile>-->
<AutoprovFile>sip_reg[macaddress].xml</AutoprovFile>-->
<AutoprovFile>audio[macaddress]</AutoprovFile>-->
<AutoprovFile>device[macaddress].xml</AutoprovFile>-->
</MiscSettings>
<MiscSettings>
<DeviceName>Newname</DeviceName>
<AutoprovFile>common.xml</AutoprovFile>
<AutoprovFile>sip_reg[macaddress].xml</AutoprovFile>
<AutoprovFile>audio[macaddress]</AutoprovFile>
<AutoprovFile>device.xml</AutoprovFile>
</MiscSettings>
Installing the SIP Outdoor Intercom with Keypad
Table 2-23). This file contains every configuration option that can
930809U
Configure the Autoprovisioning Parameters
Autoprovisioning Page using the
CyberData Corporation
83
