4

Board Interfaces

This chapter illustrates the board layout, connector pin
assignments, and jumper settings.

4.1 cPCI-3620 Series Board Layout

USB
LAN1
LAN2
VGA
®
CPU
Intel
J1
CompactPCI connector J1
J2
CompactPCI connector J2
USB
USB 3.0 port
Board Interfaces
CPU
Solder
Side
SW
Atom™ Processor

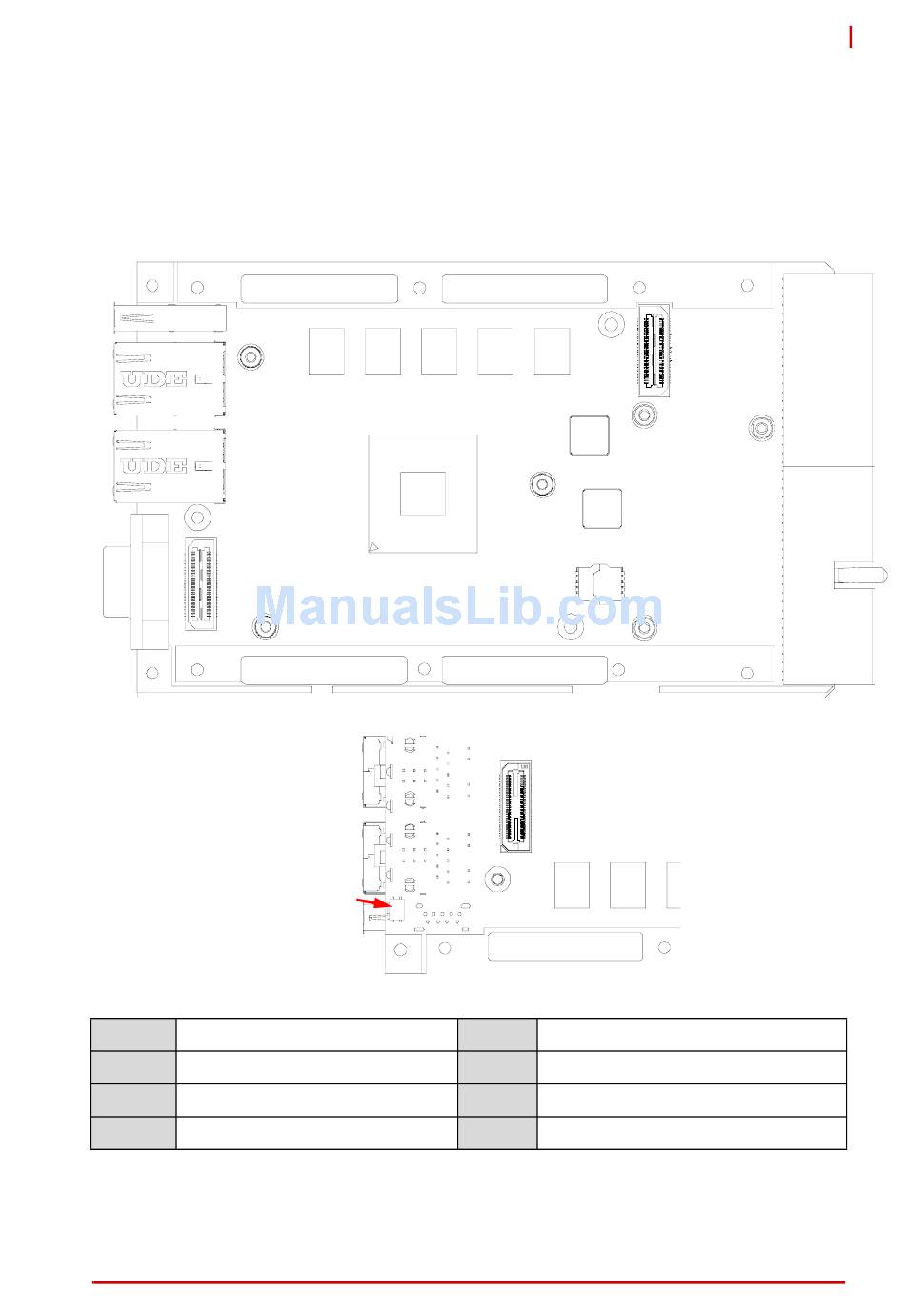

Figure 4-1: cPCI-3620 Series Board Layout

LAN1
Ethernet RJ-45 connector
LAN2
Ethernet RJ-45 connector
VGA
DB-15 female VGA connector
SW
Reset Button
cPCI-3620
J2
J1
21
