4.6 cPCI-3620 Series Faceplate

cPCI-3620
cPCI-3620D
cPCI-3620N

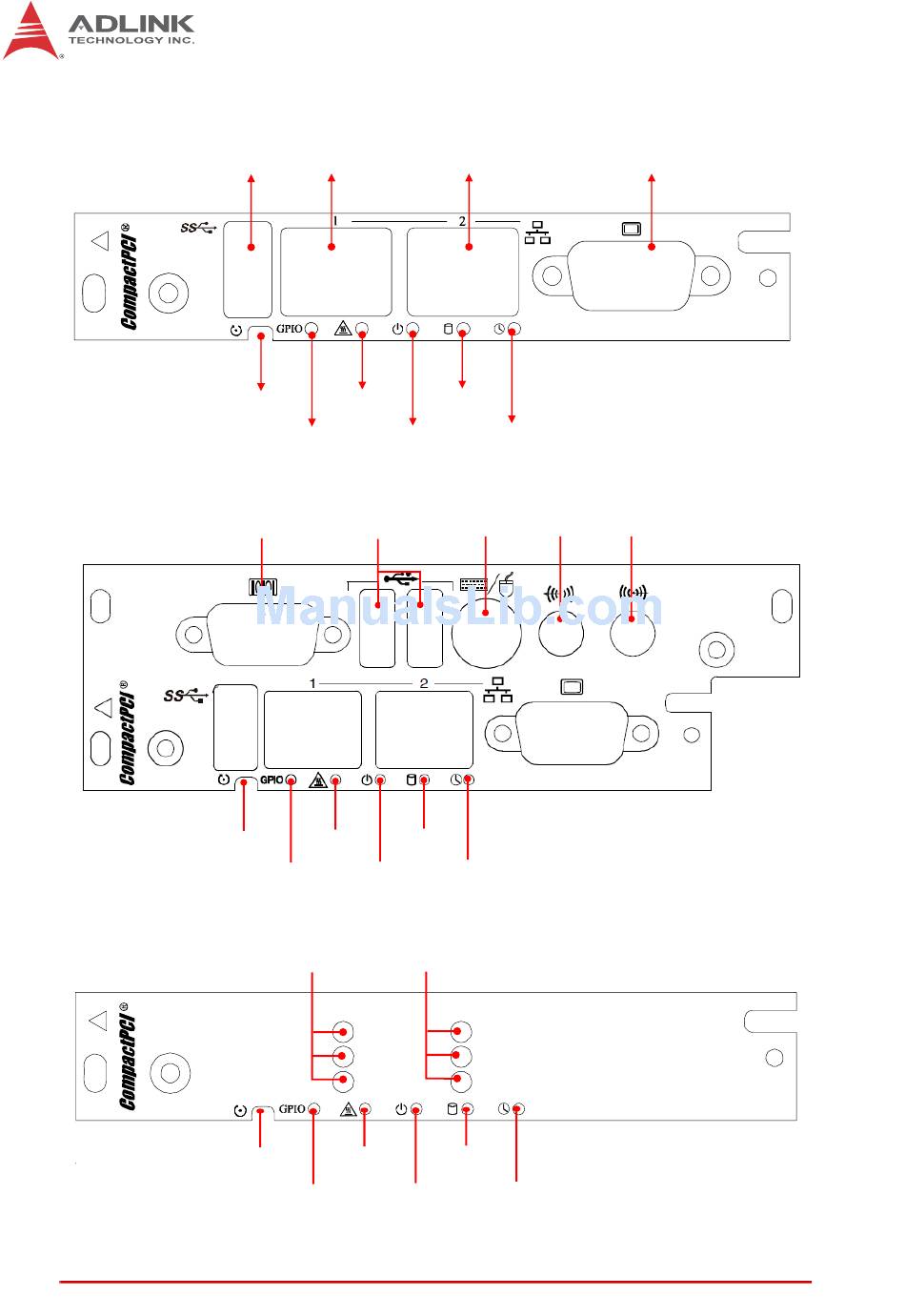

Figure 4-6: cPCI-3620, cPCI-3620D, cPCI-3620N Faceplate Layout
26
USB 3.0 LAN1
Reset Thermal
LED LED
GPIO Power
LED
USB 2.0
COM1
Reset Thermal
LED LED
GPIO Power
LED LED
LAN1
LED
100M
1000M
Link
Reset Thermal
LED LED
GPIO Power
LED
LAN2
HDD
LED
WDT
LED LED
PS/2
KB/MS Line out
HDD
LED
WDT
LED
LAN2
LED
100M
1000M
Link
HDD
LED
WDT
LED LED
VGA
Line in
Board Interfaces
