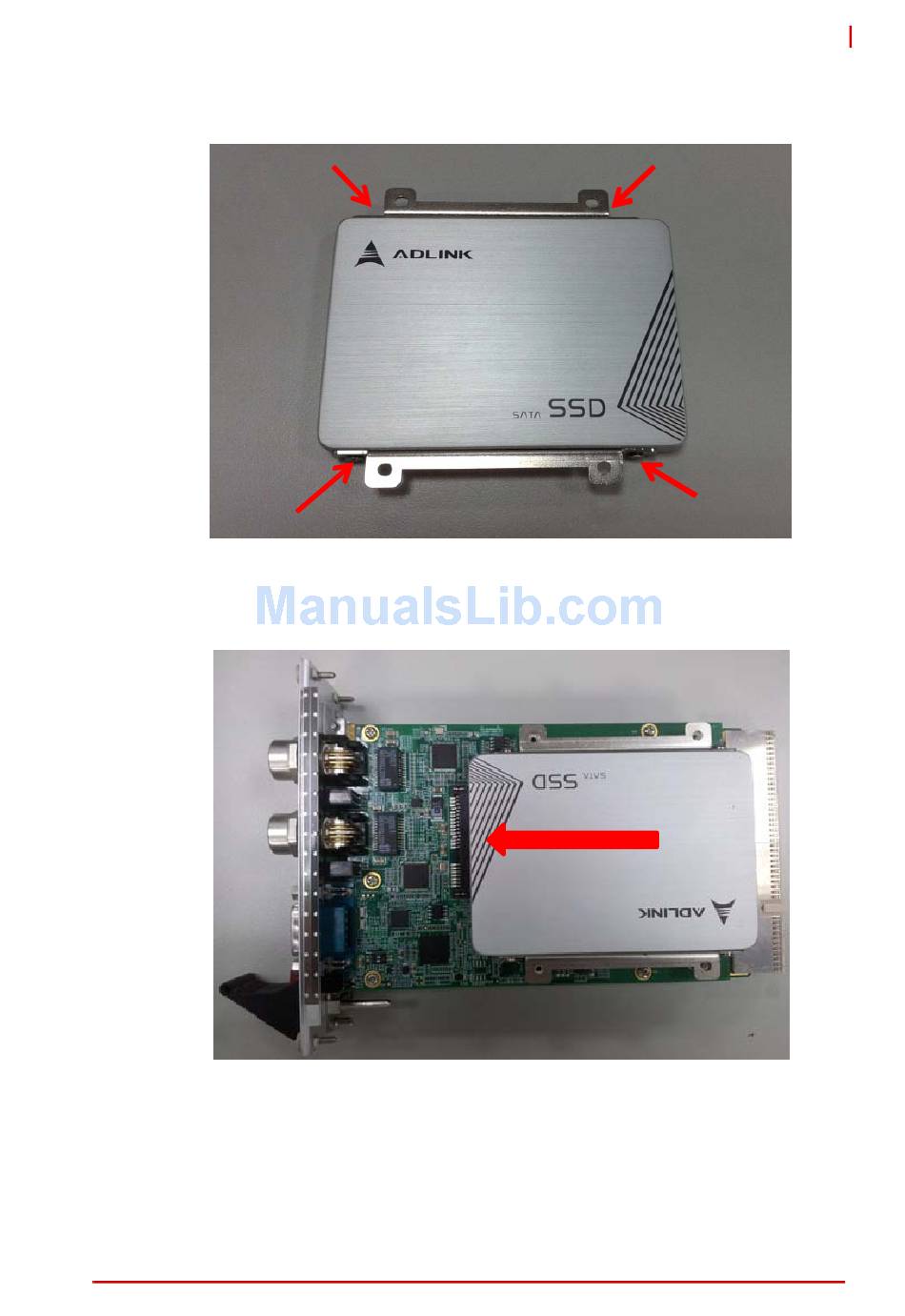

3. Screw the brackets to the 2.5" SATA drive with the four
with M3 screws provided.
4. Align the drive assembly with the cPCI-3620D/T and
insert it into the onboard SATA connector until it is prop-
erly seated.
Getting Started
cPCI-3620
51
