4.2 cPCI-3620 Blade Assembly Layout

This section describes the final assembly layout of the single slot
cPCI-3620 blade with the storage daughter board.

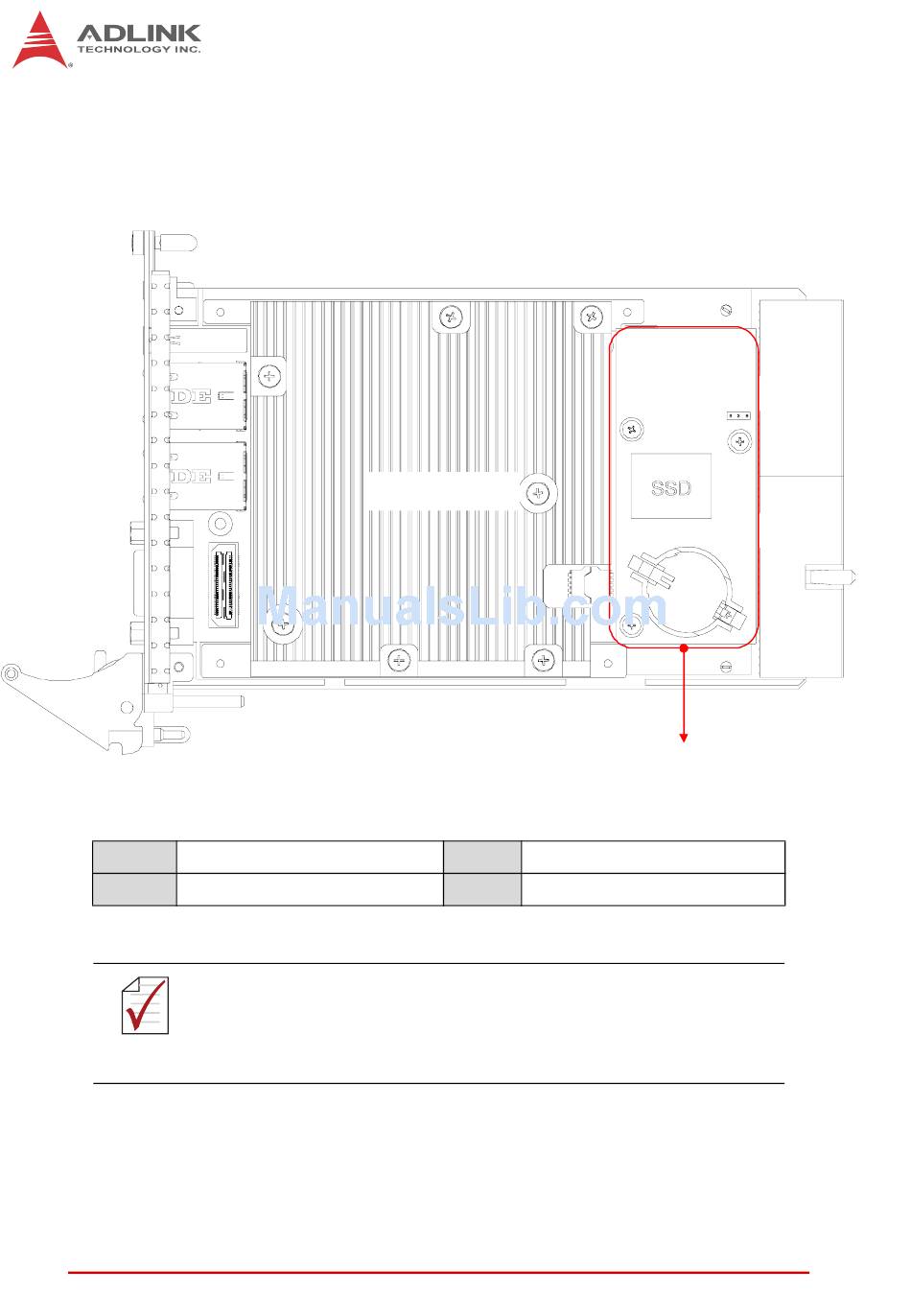

Figure 4-2: cPCI-3620 Blade Assembly Layout

BT1
Battery
The onboard SSD on the storage daughter board is optional.
A daughter board with only an RTC battery and no onboard
SSD is also available. Please contact your ADLINK represen-
NOTE:
NOTE:
tative for more information.
22
Heatsink
J1
CompactPCI connector J1
J2
CompactPCI connector J2
Battery
Storage Daughter Board
Board Interfaces
J2
J1
