1. Introduction

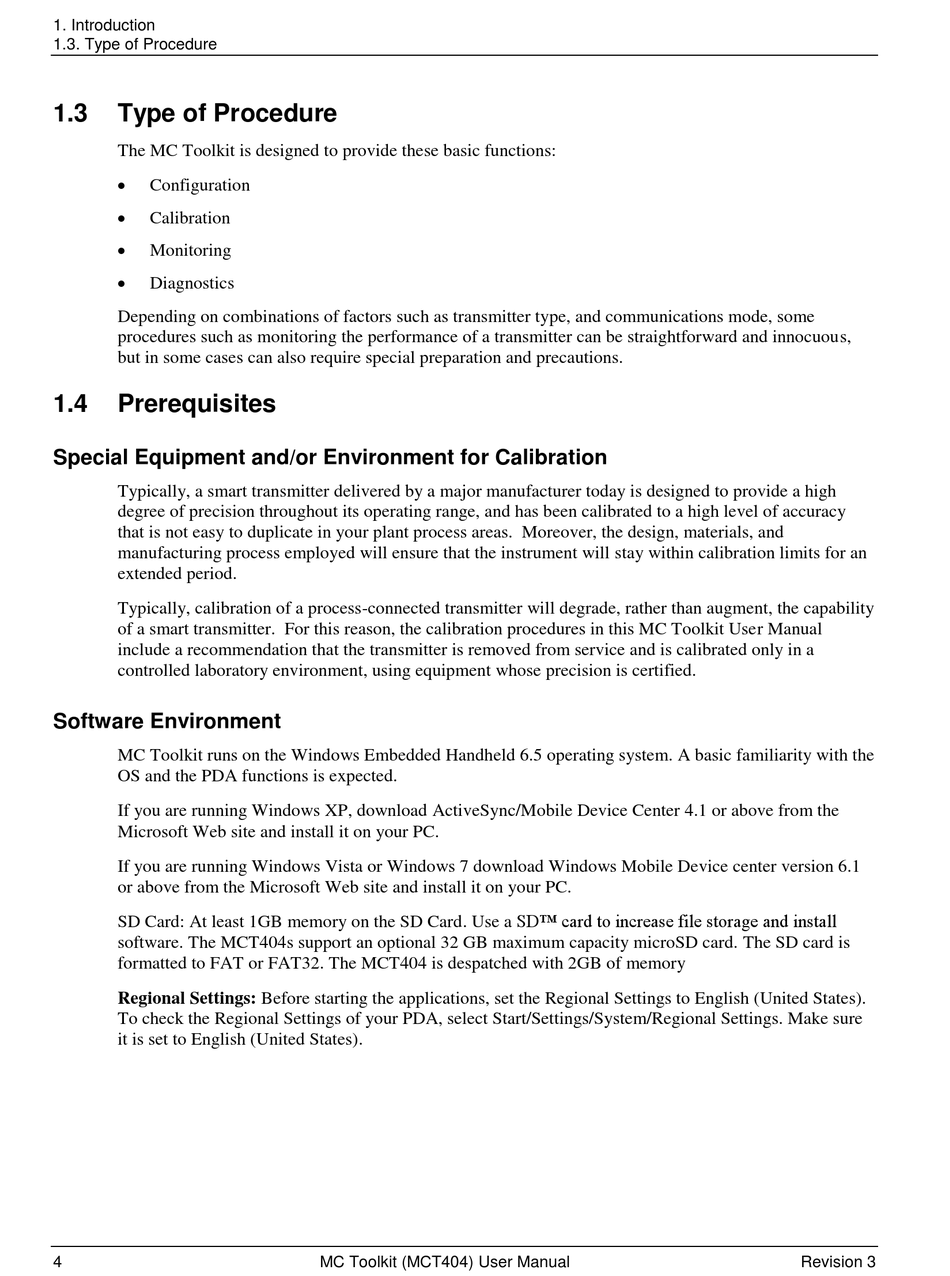

1.3. Type of Procedure

1.3 Type of Procedure
The MC Toolkit is designed to provide these basic functions:

Configuration

Calibration

Monitoring

Diagnostics
Depending on combinations of factors such as transmitter type, and communications mode, some
procedures such as monitoring the performance of a transmitter can be straightforward and innocuous,
but in some cases can also require special preparation and precautions.
1.4

Prerequisites

Special Equipment and/or Environment for Calibration

Typically, a smart transmitter delivered by a major manufacturer today is designed to provide a high
degree of precision throughout its operating range, and has been calibrated to a high level of accuracy
that is not easy to duplicate in your plant process areas. Moreover, the design, materials, and
manufacturing process employed will ensure that the instrument will stay within calibration limits for an
extended period.
Typically, calibration of a process-connected transmitter will degrade, rather than augment, the capability
of a smart transmitter. For this reason, the calibration procedures in this MC Toolkit User Manual
include a recommendation that the transmitter is removed from service and is calibrated only in a
controlled laboratory environment, using equipment whose precision is certified.

Software Environment

MC Toolkit runs on the Windows Embedded Handheld 6.5 operating system. A basic familiarity with the
OS and the PDA functions is expected.
If you are running Windows XP, download ActiveSync/Mobile Device Center 4.1 or above from the
Microsoft Web site and install it on your PC.
If you are running Windows Vista or Windows 7 download Windows Mobile Device center version 6.1
or above from the Microsoft Web site and install it on your PC.
SD Card: At least 1GB memory on the SD Card. Use a SD™ card to increase file storage and install
software. The MCT404s support an optional 32 GB maximum capacity microSD card. The SD card is
formatted to FAT or FAT32. The MCT404 is despatched with 2GB of memory
Regional Settings: Before starting the applications, set the Regional Settings to English (United States).
To check the Regional Settings of your PDA, select Start/Settings/System/Regional Settings. Make sure
it is set to English (United States).
4 MC Toolkit (MCT404) User Manual Revision 3
