System Clock Source
[Figure
The AC701 board has a 2.5V LVDS differential 200 MHz oscillator (U51) soldered onto the
back side of the board and wired to an FPGA MRCC clock input on bank 34. This 200 MHz
signal pair is named SYSCLK_P and SYSCLK_N, which are connected to FPGA U1 pins R3
and P3 respectively.
•
•
•
For more details, see the Si Time SiT9102 data sheet
shown in
X-Ref Target - Figure 1-11
Programmable User Clock Source
[Figure
The AC701 board has a programmable low-jitter 3.3V differential oscillator (U34) driving
the FPGA MRCC inputs of bank 14. This USER_CLOCK_P and USER_CLOCK_N clock
signal pair are connected to FPGA U1 pins M21 and M22 respectively. On power-up, the
user clock defaults to an output frequency of 156.250 MHz. User applications can change
the output frequency within the range of 10 MHz to 810 MHz through an I2C interface.
Power cycling the AC701 board reverts the user clock to its default frequency of
156.250 MHz.
•
•
AC701 Evaluation Board
UG952 (v1.3) April 7, 2015
1-2, callout 6]
Oscillator: Si Time SiT9102AI-243N25E200.00000 (200 MHz)
PPM frequency tolerance: 50 ppm
Differential output
Figure 1-11.
C30
0.1 μF 10V
X5R
GND

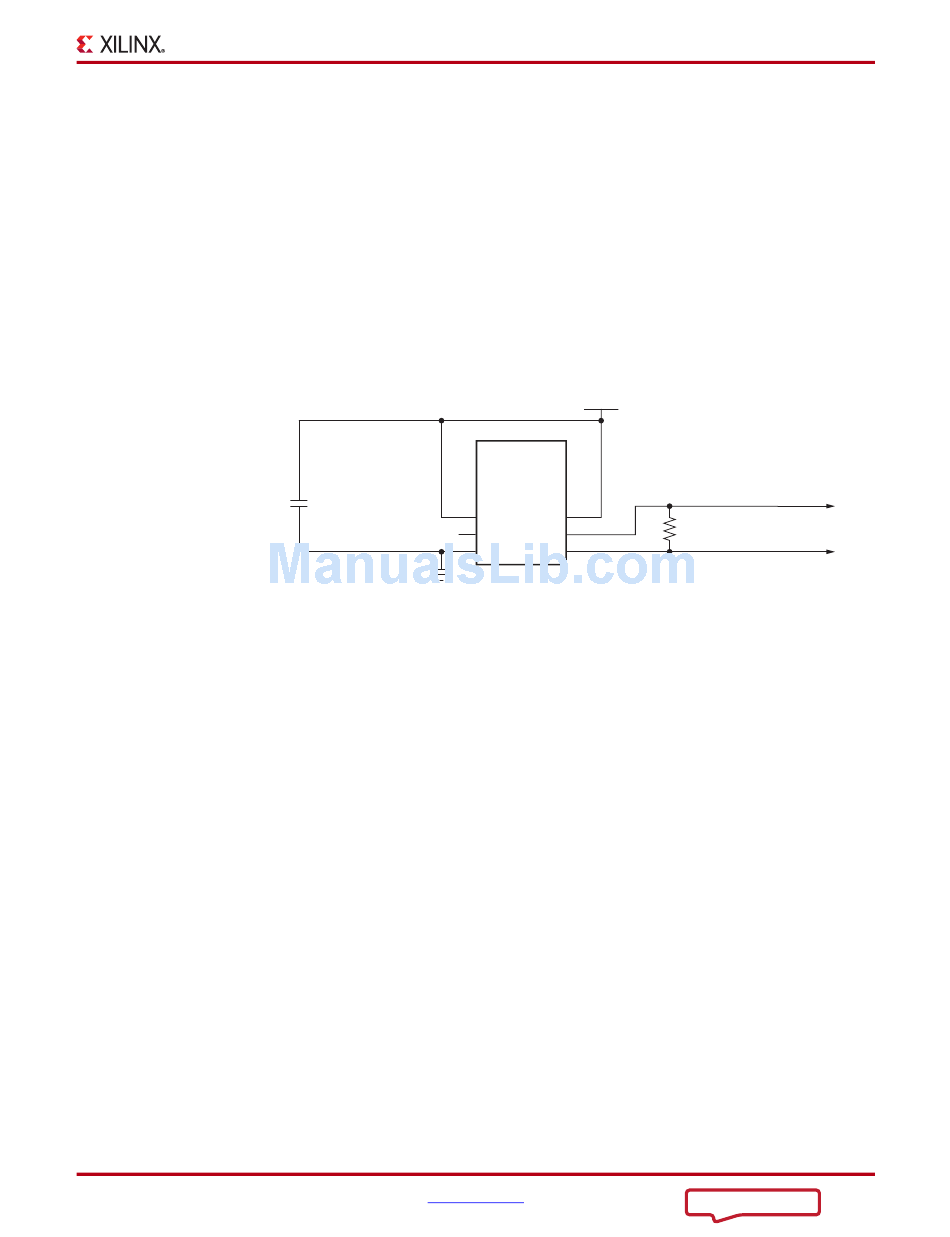

Figure 1-11: System Clock Source
1-2, callout 7]
Programmable oscillator: Silicon Labs Si570BAB000544DG (10 MHz – 810 MHz)
Differential output
www.xilinx.com
[Ref
VCC2V5
U51
SIT9102
200 MHz
Oscillator
1 6
OE VCC
2 5
NC OUT_B
3 4
GND OUT
Feature Descriptions
20]. The system clock circuit is
SYSCLK_N
R166
100Ω 1%
SYSCLK_P
UG952_c1_10_100212
