ML505/506
QuickStart
October 2008

Advertisement

loading

Related Manuals for Xilinx ML505

Summary of Contents for Xilinx ML505

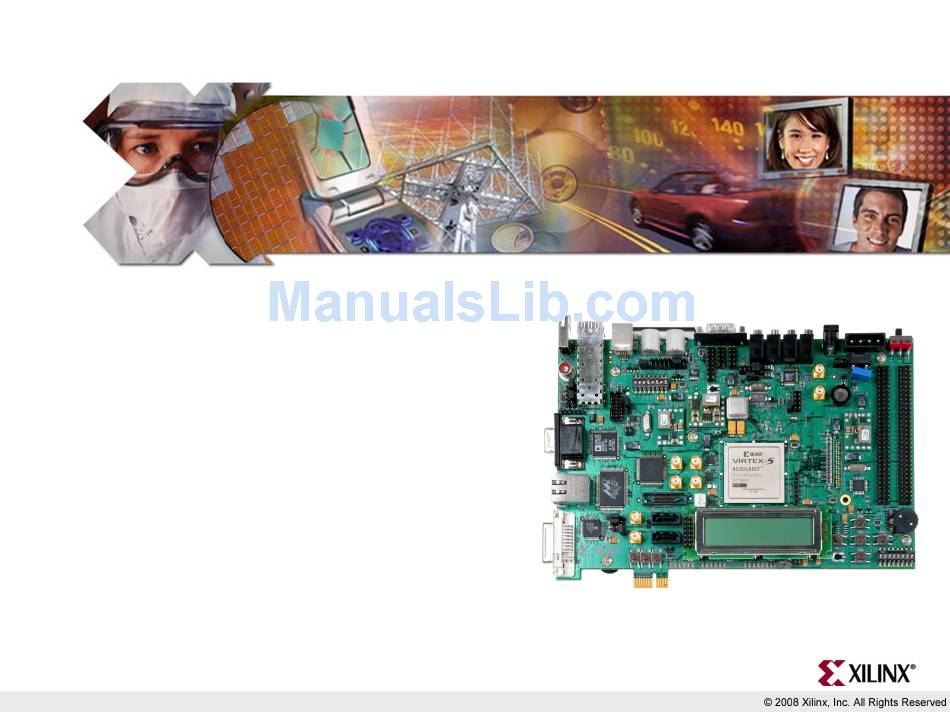

  • Page 1 ML505/506 QuickStart October 2008...
  • Page 2 Overview • Setup • Boot with ACE-loader ACE File • Observe LCD and Terminal messages • Load new Configuration • Re-load ACE-loader Note: This Presentation applies to the ML505 and ML506...
  • Page 3 – DDR2 Interface (256 MB) – BRAM – External Memory Controller (EMC) • ZBT SRAM – Networking – UART – Interrupt Controller – System ACE CF Interface – GPIO (IIC, LEDs and LCD) – PLB Arbiter Note: Presentation applies to the ML505 and ML506...
  • Page 4 • Refer to ml505_overview_setup document for details on: – Software Requirements – ML505 Board Setup • Equipment and Cables • Software • Network – Terminal Programs • This presentation requires the 9600-8-N-1 Baud terminal setup Note: Presentation applies to the ML505 and ML506...

  • Page 5: Hardware Setup

    Hardware Setup • Connect the Xilinx Platform Cable USB to the ML505 board • Connect the RS232 null modem cable to the ML505 board Note: Presentation applies to the ML505 and ML506...
  • Page 6 Hardware Setup • The ML505 uses a DVI video interface • Connect a DVI monitor • Use a DVI/VGA adapter to connect a VGA monitor – http://www.belkin.com Note: Presentation applies to the ML505 and ML506...

  • Page 7: Usb Keyboard

    Hardware Setup • USB Keyboard – www.dell.com Note: Presentation applies to the ML505 and ML506...
  • Page 8 Factory CompactFlash • The CompactFlash shipped with the ML505 board has the following ace files preloaded: Note: Presentation applies to the ML505 and ML506...
  • Page 9 Verify Factory Default Settings • Set the Ethernet PHY jumpers, J22, J23 to positions 1-2 (1) • Insert the Factory CompactFlash into the ML505 board (2) • Set the Front DIP switches (SW3) to 00010101 (1 = ON) (3) • Set the Rear DIP switches (SW6) to 11001010 (4) •...
  • Page 10 Bootload • The system_bootload.ace loads: Note: Presentation applies to the ML505 and ML506...
  • Page 11 • The terminal window also reflects the bootload application • Use the left/center/right buttons to choose an application or type a number in the terminal window • After each demo, push the SysACE reset to return to bootload Note: Presentation applies to the ML505 and ML506...
  • Page 12 Slideshow • Type 1, to launch the slideshow application in Configuration 1 • The slideshow loads the presentation into memory then presents it Note: Presentation applies to the ML505 and ML506...
  • Page 13 Slideshow • The slideshow app will present a series of slides on the Monitor: Note: Presentation applies to the ML505 and ML506...
  • Page 14 Web Server • Type 2, to launch the web server application in Configuration 2 – Note: You may need to turn off your browser's proxy and specify a direct connection to the Internet in your browser options Note: Host IP is 1.2.3.9, subnet mask is 255.0.0.0; Ethernet connection is 100 Full Duplex...

  • Page 15: Web Server

    Web Server • In your web browser, enter http://1.2.3.4:8080/index.html Note: Presentation applies to the ML505 and ML506...
  • Page 16 Simon • Type 3, to launch the Simon application in Configuration 3 Note: Presentation applies to the ML505 and ML506...

  • Page 17: Board Diagnostics

    Board Diagnostics • Type 4, to launch the XROM application in Configuration 4 Note: Presentation applies to the ML505 and ML506...
  • Page 18 Board Diagnostics • XROM includes a series of board test routines Note: Presentation applies to the ML505 and ML506...

  • Page 19: Usb Keyboard

    USB Keyboard • Type 5, to launch the USB Keyboard application in Configuration 5 • Type ML505 and view results: Note: Presentation applies to the ML505 and ML506...
  • Page 20 My ACE • Type 6, to launch the My ACE application in Configuration 6 Note: Presentation applies to the ML505 and ML506...
  • Page 21 Ringtone • Type 7, to launch the Ringtone application in Configuration 7 • Press any key then press 1-7 to play a simple melody Note: Presentation applies to the ML505 and ML506...
  • Page 22 Documentation • Virtex-5 – Silicon Devices http://www.xilinx.com/products/devices.htm – Virtex-5 Multi-Platform FPGA http://www.xilinx.com/products/virtex5/index.htm – Virtex-5 Family Overview: LX, LXT, SXT, and FXT Platforms http://www.xilinx.com/support/documentation/data_sheets/ds100.pdf – Virtex-5 FPGA DC and Switching Characteristics Data Sheet http://www.xilinx.com/support/documentation/data_sheets/ds202.pdf...
  • Page 23 Documentation • Virtex-5 – Virtex-5 FPGA User Guide http://www.xilinx.com/support/documentation/user_guides/ug190.pdf – Virtex-5 FPGA Configuration User Guide http://www.xilinx.com/support/documentation/user_guides/ug191.pdf – Virtex-5 System Monitor User Guide http://www.xilinx.com/support/documentation/user_guides/ug192.pdf – Virtex-5 Packaging and Pinout Specification http://www.xilinx.com/support/documentation/user_guides/ug195.pdf...
  • Page 24 Documentation • Virtex-5 RocketIO – RocketIO GTP Transceivers http://www.xilinx.com/products/virtex5/lxt.htm – RocketIO GTP Transceiver User Guide – UG196 http://www.xilinx.com/support/documentation/user_guides/ug196.pdf – RocketIO GTX Transceivers http://www.xilinx.com/products/virtex5/fxt.htm – RocketIO GTX Transceiver User Guide – UG198 http://www.xilinx.com/support/documentation/user_guides/ug198.pdf...
  • Page 25 Documentation • Design Resources – ISE Development Tools and IP http://www.xilinx.com/ise – Integrated Software Environment (ISE) Foundation Resources http://www.xilinx.com/ise/logic_design_prod/foundation.htm – ISE Manuals http://www.xilinx.com/support/software_manuals.htm – ISE Development System Reference Guide http://toolbox.xilinx.com/docsan/xilinx10/books/docs/dev/dev.pdf – ISE Development System Libraries Guide http://toolbox.xilinx.com/docsan/xilinx10/books/docs/virtex5_hdl/virtex5_hdl.pdf...
  • Page 26 Documentation • Additional Design Resources – Customer Support http://www.xilinx.com/support – Xilinx Design Services: http://www.xilinx.com/xds – Titanium Dedicated Engineering: http://www.xilinx.com/titanium – Education Services: http://www.xilinx.com/education – Xilinx On Board (Board and kit locator): http://www.xilinx.com/xob...
  • Page 27 Documentation • Platform Studio – Embedded Development Kit (EDK) Resources http://www.xilinx.com/edk – Embedded System Tools Reference Manual http://www.xilinx.com/support/documentation/sw_manuals/edk10_est_rm.pdf – EDK Concepts, Tools, and Techniques http://www.xilinx.com/support/documentation/sw_manuals/edk_ctt.pdf...
  • Page 28 Documentation • PowerPC 440 – Embedded Processor Block in Virtex-5 FPGAs Reference Guide – UG200 http://www.xilinx.com/support/documentation/user_guides/ug200.pdf – PPC440 Virtex-5 Wrapper – DS621 http://www.xilinx.com/support/documentation/ip_documentation/ ppc440_virtex5.pdf – DDR2 Memory Controller for PowerPC 440 Processors – DS567 http://www.xilinx.com/support/documentation/data_sheets/ds567.pdf...
  • Page 29 Documentation • MicroBlaze – MicroBlaze Processor http://www.xilinx.com/microblaze – MicroBlaze Processor Reference Guide – UG081 http://www.xilinx.com/support/documentation/sw_manuals/mb_ref_guide.pdf...
  • Page 30 Documentation • ChipScope Pro – ChipScope Pro 10.1i Serial IO Toolkit User Manual http://www.xilinx.com/ise/verification/chipscope_pro_siotk_10_1_ug213.pdf – ChipScope Pro 10.1i ChipScope Pro Software and Cores User Guide http://www.xilinx.com/ise/verification/chipscope_pro_sw_cores_10_1_ug029.pdf...
  • Page 31 Memory Interface Solutions with Xilinx FPGAs – http://www.demosondemand.com/clients/xilinx/001/page_new2/index.asp#35 – Xilinx Memory Corner http://www.xilinx.com/products/design_resources/mem_corner – Additional Memory Resources http://www.xilinx.com/support/software/memory/protected/index.htm – Xilinx Memory Interface Generator (MIG) 2.1 User Guide http://www.xilinx.com/support/software/memory/protected/ug086.pdf – Memory Interfaces Made Easy with Xilinx FPGAs and the Memory Interface Generator http://www.xilinx.com/support/documentation/white_papers/wp260.pdf...
  • Page 32 Documentation • Ethernet – Virtex-5 Embedded Tri-Mode Ethernet MAC Wrapper Data Sheet http://www.xilinx.com/support/documentation/ip_documentation/ v5_emac_ds550.pdf – Virtex-5 Embedded Tri-Mode Ethernet MAC Wrapper Getting Started Guide http://www.xilinx.com/support/documentation/ip_documentation/ v5_emac_gsg340.pdf – Virtex-5 Tri-Mode Ethernet Media Access Controller User Guide http://www.xilinx.com/support/documentation/user_guides/ug194.pdf – LightWeight IP (lwIP) Application Examples – XAPP1026...
  • Page 33 Documentation • PCIe – LogiCORE Endpoint Block Plus for PCI Express Data Sheet http://www.xilinx.com/support/documentation/ip_documentation/ pcie_blk_plus_ds551.pdf – LogiCORE Endpoint Block Plus for PCI Express Designs http://www.xilinx.com/support/documentation/ip_documentation/ pcie_blk_plus_ug341.pdf – LogiCORE Endpoint Block Plus Getting Started Guide for PCI Express Designs http://www.xilinx.com/support/documentation/ip_documentation/ pcie_blk_plus_gsg343.pdf –...
  • Page 34 Documentation • System Generator – System Generator for DSP http://www.xilinx.com/sysgen – Xilinx System Generator for DSP User Guides http://www.xilinx.com/support/documentation/sw_manuals/sysgen_bklist.pdf – XtremeDSP Design Considerations http://www.xilinx.com/support/documentation/user_guides/ug193.pdf...
  • Page 35 Documentation • PLB v4.6 IP – Processor Local Bus (PLB) v4.6 Data Sheet – DS531 http://www.xilinx.com/support/documentation/ip_documentation/plb_v46.pdf – Multi-Port Memory Controller (MPMC) – DS643 http://www.xilinx.com/support/documentation/ip_documentation/mpmc.pdf – XPS Multi-CHannel External Memory Controller (XPS MCH EMC) – DS575 http://www.xilinx.com/support/documentation/ip_documentation/ xps_mch_emc.pdf – XPS LocalLink TEMAC – DS537 http://www.xilinx.com/support/documentation/ip_documentation/xps_ll_temac.pdf...
  • Page 36 Documentation • PLB v4.6 IP – XPS IIC Bus Interface – DS606 http://www.xilinx.com/support/documentation/ip_documentation/xps_iic.pdf – XPS SYSACE (System ACE) Interface Controller – DS583 http://www.xilinx.com/support/documentation/ip_documentation/xps_sysace.pdf – XPS Timer/Counter – DS573 http://www.xilinx.com/support/documentation/ip_documentation/xps_timer.pdf – XPS Interrupt Controller – DS572 http://www.xilinx.com/support/documentation/ip_documentation/xps_intc.pdf – Using and Creating Interrupt-Based Systems Application Note...
  • Page 37 Documentation • PLB v4.6 IP – XPS General Purpose Input/Output (GPIO) – DS569 http://www.xilinx.com/support/documentation/ip_documentation/xps_gpio.pdf – XPS External Peripheral Controller (EPC) – DS581 http://www.xilinx.com/support/documentation/ip_documentation/xps_epc.pdf – XPS 16550 UART – DS577 http://www.xilinx.com/support/documentation/ip_documentation/ xps_uart16550.pdf – PLBV46 to DCR Bridge Data Sheet – DS578 http://www.xilinx.com/support/documentation/ip_documentation/...
  • Page 38 Documentation • IP – Local Memory Bus Data Sheet – DS445 http://www.xilinx.com/support/documentation/ip_documentation/lmb_v10.pdf – Block RAM Block Data Sheet – DS444 http://www.xilinx.com/support/documentation/ip_documentation/bram_block.pdf – Microprocessor Debug Module Data Sheet – DS641 http://www.xilinx.com/support/documentation/ip_documentation/mdm.pdf – LMB Block RAM Interface Controller Data Sheet – DS452 http://www.xilinx.com/support/documentation/ip_documentation/...
  • Page 39 Documentation • IP – JTAGPPC Controller Data Sheet – DS298 http://www.xilinx.com/support/documentation/ip_documentation/jtagppc_cntlr.pdf – Processor System Reset Module Data Sheet – DS402 http://www.xilinx.com/support/documentation/ip_documentation/ proc_sys_reset.pdf – Clock Generator v2.0 Data Sheet – DS614 http://www.xilinx.com/support/documentation/ip_documentation/ clock_generator.pdf – Util Bus Split Operation Data Sheet – DS484 http://www.xilinx.com/support/documentation/ip_documentation/...
  • Page 40 • ML505/506/507 – ML505 Overview http://www.xilinx.com/ml505 – ML506 Overview http://www.xilinx.com/ml506 – ML507 Overview http://www.xilinx.com/ml507 – ML505/506/507 Evaluation Platform User Guide – UG347 http://www.xilinx.com/support/documentation/boards_and_kits/ug347.pdf – ML505/506/507 Getting Started Tutorial – UG348 http://www.xilinx.com/support/documentation/boards_and_kits/ug348.pdf – ML505/506/507 Reference Design User Guide – UG349 http://www.xilinx.com/support/documentation/boards_and_kits/ug349.pdf...
  • Page 41 Documentation • ML505/506/507 – ML505/506/507 Schematics http://www.xilinx.com/support/documentation/boards_and_kits/ ml50x_schematics.pdf – ML505/506/507 Bill of Material http://www.xilinx.com/support/documentation/boards_and_kits/ ml505_501_bom.xls...
