13. Diagnostics

13.1. Fault diagnostic

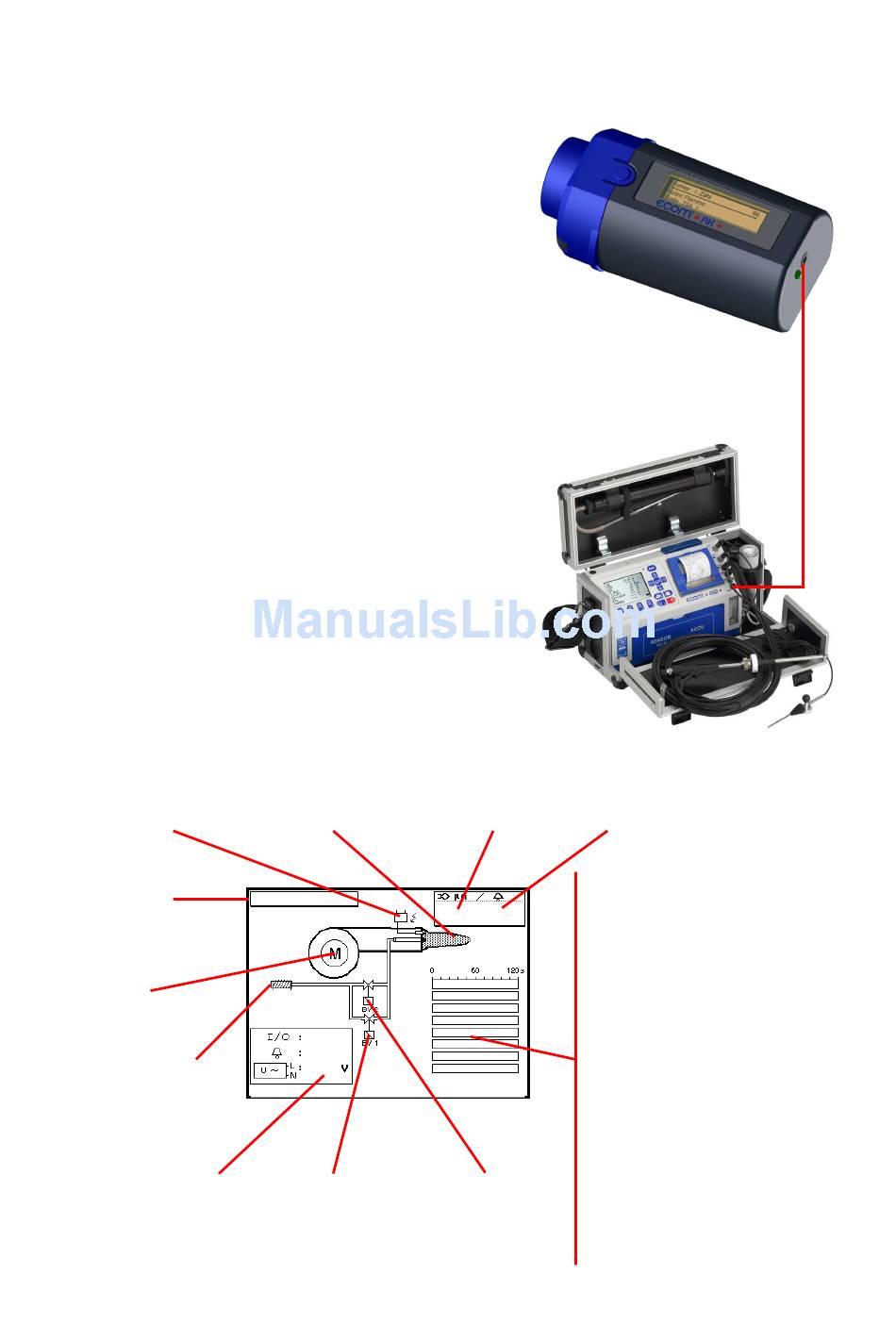

The ecom-EN2 is able to receive and to
process information provided via cable
transfer by the ecom-AK (read-out head
for digital firing automates).
Out of the main menu, select the sub-
menu "Fault diagnostic" and confirm
with <Enter>. The ecom-EN2 tries to
establish a connection with the ecom-
AK (display message: „Search in pro-
cess"). By successful attempt, the cur-
rent burner operation stand is displayed
as a graphic on the display. The opera-
tion stand can be recorded (max. 120
sec). Press <Enter> to initiate a new
recording (reset).
Ignition is
active
Model
name
Engine
on
Oil pre-warmer /
Air pressure
monitor is on
Operation
voltage
Page 36
Flame identi-
fied
D K O 9 7 2 / 2 2
1/0
RM
OV
RZ
BV1
OFF
BV2
OFF
FL
228 Err
Valve 1
is on
Current Min. flame
flame signal signal
Recording of operation
stand (max. 120 sec.):
2.3 1.2
1/0 = Continuous phase
RM = Fan motor
OV = Oil preheater
RZ = Ignition
BV1 = Valve 1
BV2 = Valve 2
FL = Flame identified
Err = Disturbance
Reset = Starts a new re-
Valve 2
cording (confirm with
is on
<Enter>)
ecom-AK
Cable connection to
AUX connector
ecom-EN2
st stage
nd stage
ecom-EN2
