Step 12: Set the Polling/Bit Strobe/COS/Cyclic I/O connection path for the
I-7242D as figure 6-29.

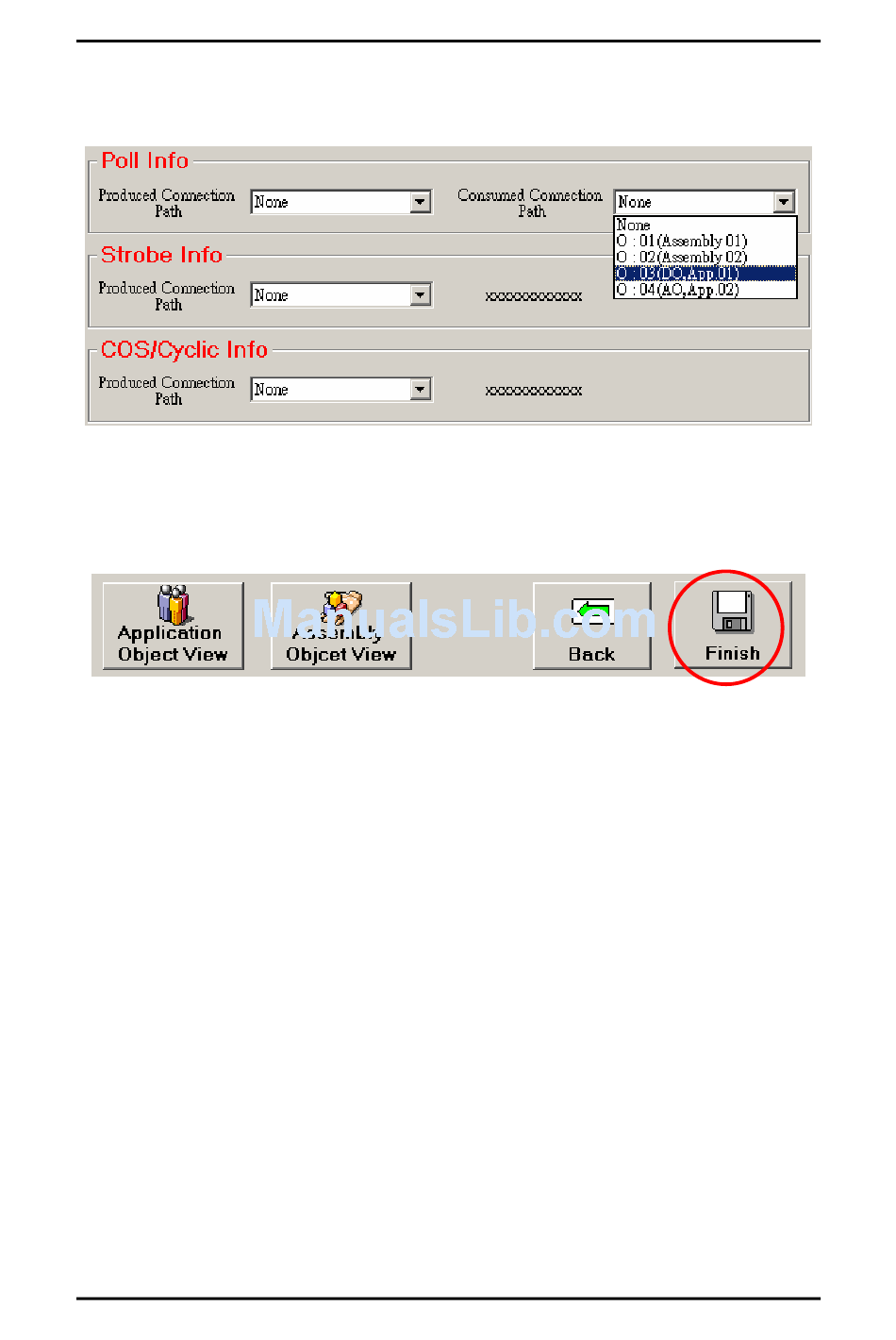

Figure 6-29. "Produced/Consumed I/O Connection Path"
Step 13: Click the "Finish" button to complete the I-7242D configuration and
the DNS_MRU Utility will create the EDS file for users as figure 6-30.
Step 14: After click the "Finish" button, the main window would be pop-up.
Then press the "Exit program" button to exit the program.
I-7242D DeviceNet/Modbus RTU Gateway User's Manual, July 2006, Version 1.1
Figure 6-30. "Finish and Create EDS File."
