Example:
In the application, we should set Master MAC ID as 0x05 and Slave MAC
ID as 0x03. Then, we try to set/get the data of attribute 0x14 of instance 0x01
of class 0x64.
Press the "GetAttribute" button to get the data of attribute 20 of Instance 1
of class 100. The result is shown as figure 9-3.
Press the "SetAttribute" button to set the needed data to attribute 20 of
Instance 1 of class 100. The result is shown as figure 9-4, .
I-7242D DeviceNet/Modbus RTU Gateway User's Manual, July 2006, Version 1.1

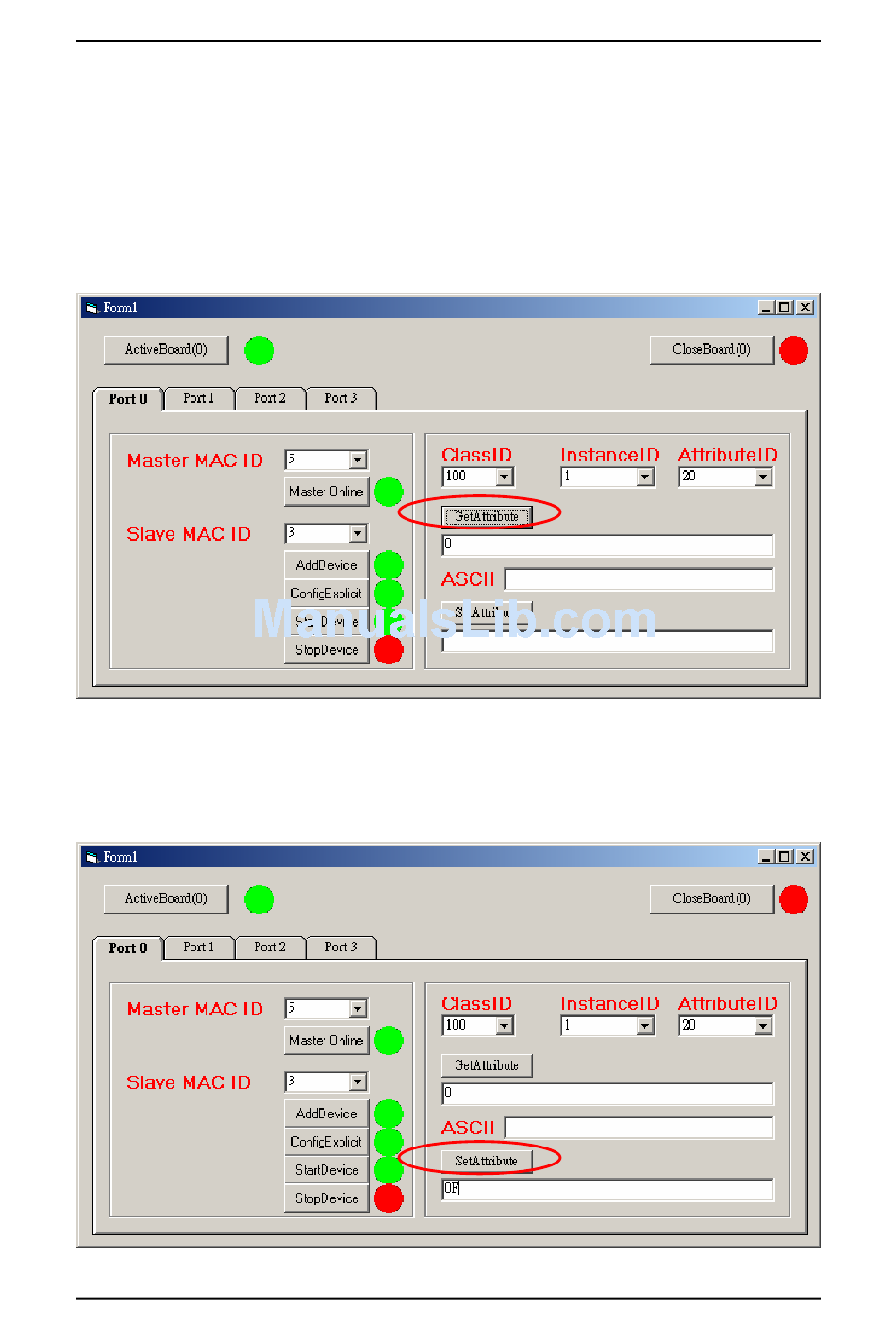

Figure 9-3 "GetAttribute"
Figure 9-3 "SetAttribute"
I-7242D user manual
118/124
