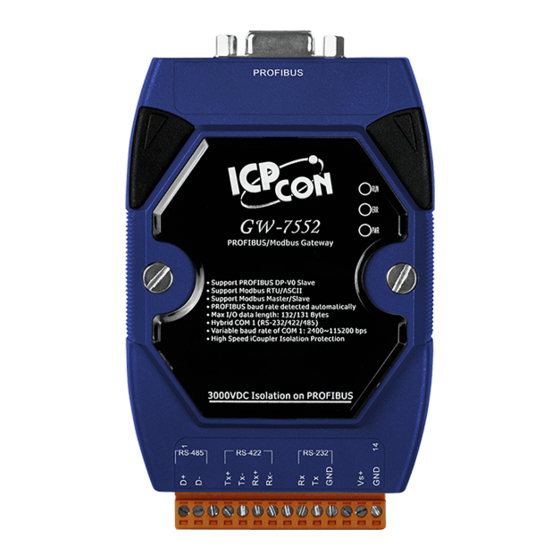

GW-7552 PRIFIBUS/MODBUS GATEWAY
Quick Start User Guide
1. Introduction
This manual introduces the GW-7552's basic setting and operating quickly, the user
can refer to the user manual in the ICP DAS companion CD-ROM (Path:
"CD:\PROFIBUS\Gateway\GW-7552\ manual\GW-7552 user manual.pdf").
This manual helps users to understand about the GW-7552 module and application.
In the following examples the CIF50-PB PROFIBUS master card from Hilscher is
used. The configuration and communication is done by the program "SyCon"
provided by Hilscher.

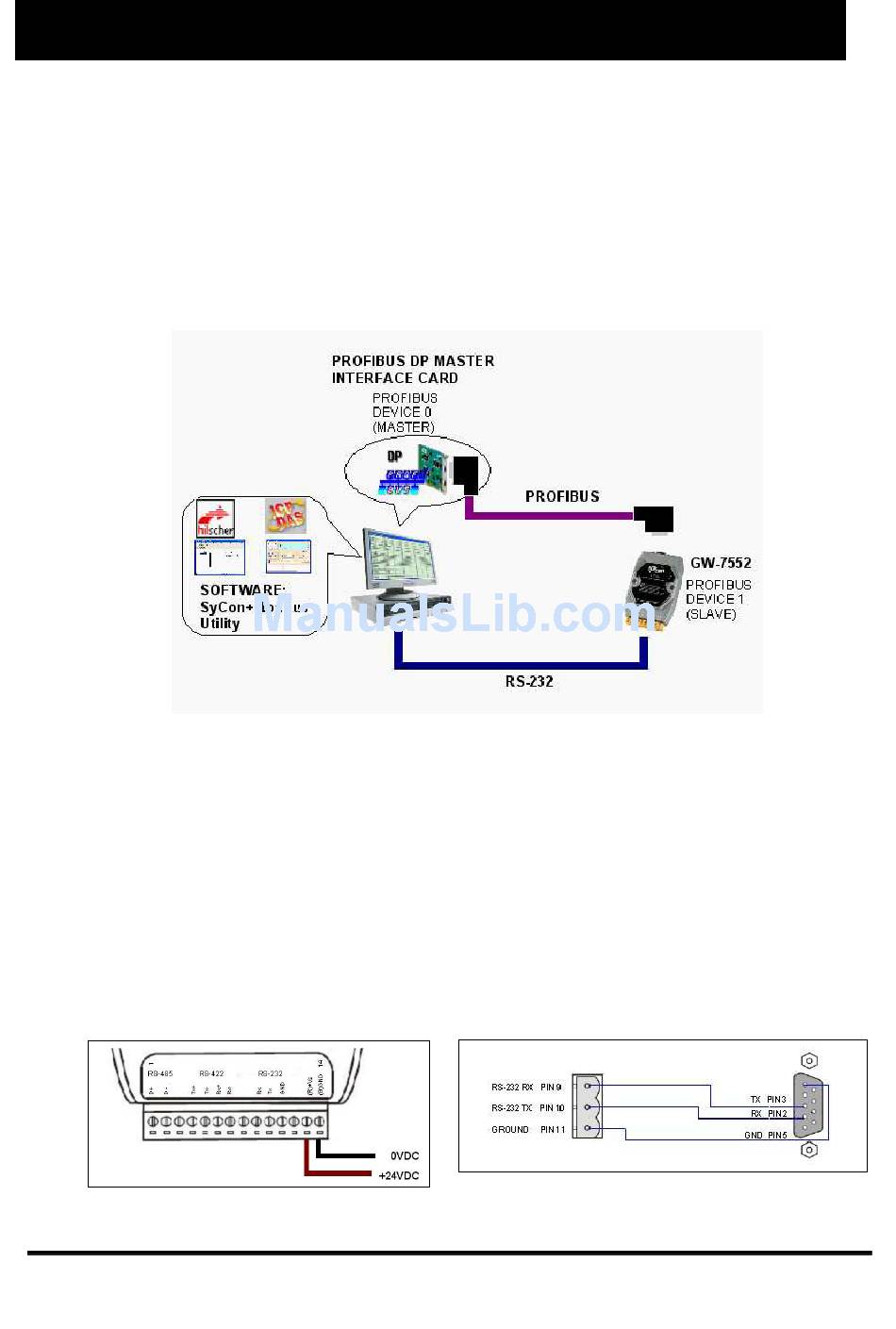

Application example of PROFIBUS to Modbus
In this example the GW-7552 acts as a Modbus slave device. When the GW-7552
module receives a write DO Modbus command from PC's COM Port, the GW-7552
module can send the message to the input data area of PROFIBUS master station.
When the GW-7552 module receives a read DI Modbus command from PC's COM
Port, GW-7552 module can refer to the output data area of PROFIBUS master
station to produce response message and send it to PC's COM Port.
2. Hardware configuration
Power connection
RS232 connection
GW-7552 PROFIBUS/MODBUS GATEWAY Quick Start User Guide (Version 1.00)
PAGE：1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ICP DAS USA GW-7552
Summary of Contents for ICP DAS USA GW-7552
-
Page 1: Hardware Configuration
Hilscher. Application example of PROFIBUS to Modbus In this example the GW-7552 acts as a Modbus slave device. When the GW-7552 module receives a write DO Modbus command from PC’s COM Port, the GW-7552 module can send the message to the input data area of PROFIBUS master station. - Page 2 The GW-7552 is a slave device of PROFIBUS DP protocol. The station address of GW-7552 can be set by dip switch. The dip switch can be seen by open the cover, as shown in the below. The range of dip switch is 0~126, here we set GW-7552 module’s dip switch to 1.
-
Page 3: Software Configuration
4. Software configuration GSD file Please copy the GSD file (IPDS0B87.gsd) and the Bitmap file (ICP_7552. bmp , i_7552.bmp) from the CD of the GW-7552 module into the Profibus configuration tool. File->CopyGSD (Directory: --> CD:\PROFIBUS\ GATEWAY\GW-7552\GSD\) the example of how to load GSD file Here, we use the hilscher CIF50-PB PROFIBUS communication interface to show how to load GW-7552’s GSD file step by step. - Page 4 Please refer to user manual section 4.3 The Configuration of the common parameters. Double click Click <Parameter Data> 7552’s icon to enter the button to enter the Parameter Slave configuration dialog Data dialog GW-7552 PROFIBUS/MODBUS GATEWAY Quick Start User Guide (Version 1.00) PAGE：4...
- Page 5 In this example, we configure a “system setting module”, an “Output Relay/Coil--2 Byte module” and an “Input Relay/Coil--2 Byte module”, as follows. Double click GW-7552’s icon to Configure module and click OK enter Slave configuration dialog button GW-7552 PROFIBUS/MODBUS GATEWAY Quick Start User Guide (Version 1.00) PAGE：5...
- Page 6 When the user finishes the configuration and saves setting in the PROFIBUS master station successfully, the 'RUN' LED indicator of GW- 7552 is turned on. That shows the GW-7552 working in the data exchange mode. Click <Online->Download> to download the setting into PROFIBUS master station 5.
- Page 7 (” 01 02 02 00 00 B9 B8”). In this message, the user can know the value of DI0 & DI1 is “0” in the GW-7552. --Send output data to write DI of the GW-7552 by the Profibus master The user needs to set “0xFE”...
- Page 8 Byte 0x00 → Output 2 Byte 0x00 0xFE Output module Output 3 Byte → 0x00 0xDC Send Modbus command to read DI of the GW-7552 and receive data (0xFE, 0xDC) GW-7552 PROFIBUS/MODBUS GATEWAY Quick Start User Guide (Version 1.00) PAGE：8...
