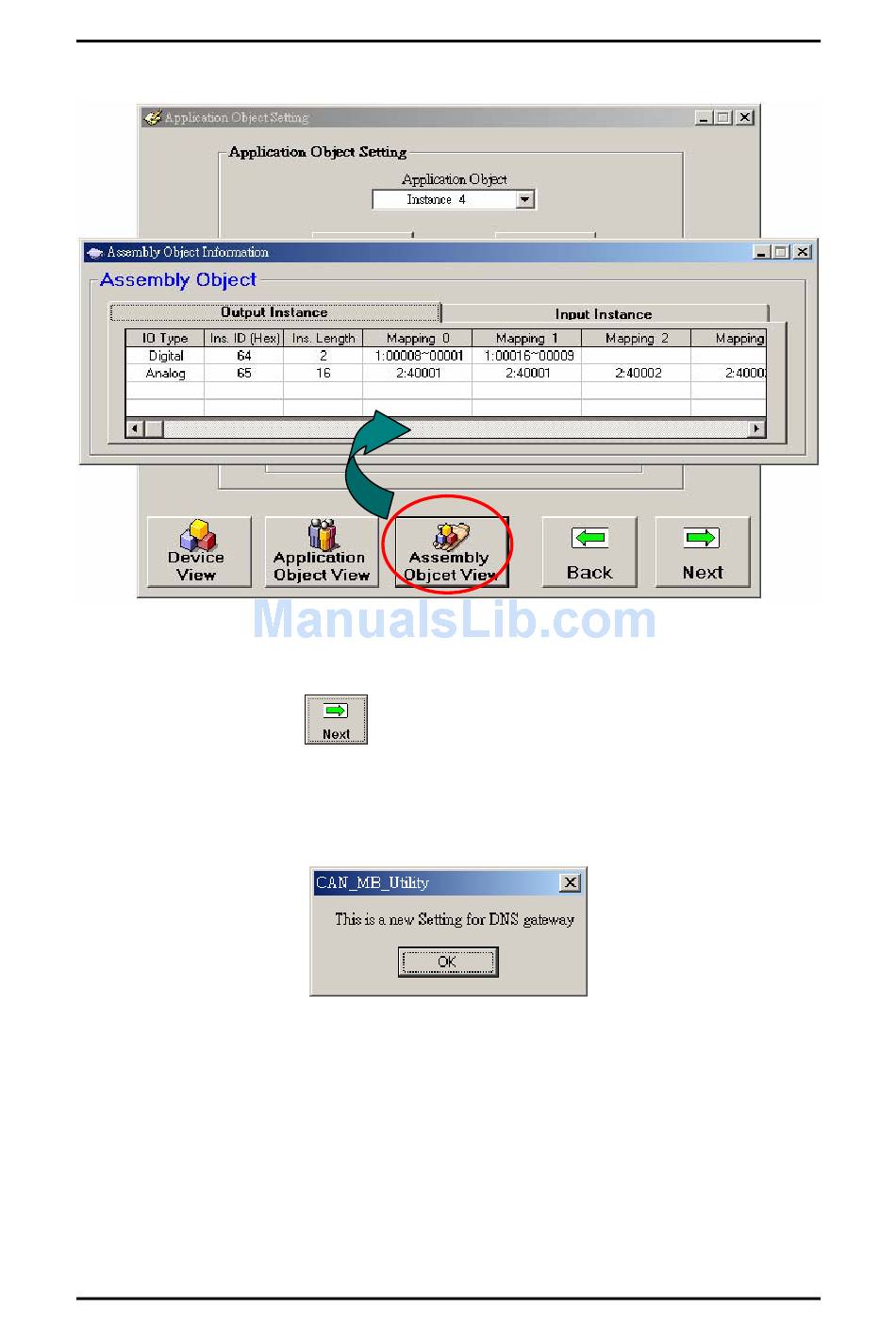

Figure 6-25. "Assembly Object Information"
Step 9: After the configuration of Modbus devices parameters, press the
"Next" button,
, and start to build the specific EDS file for the
I-7242D. If the I/O connection path stored in EEPROM of I-7242D is
not correct. Or you modify the parameters of Modbus devices. Then
the warring dialog would be pop-up as figure 6-26.
Figure 6-26. "Warning Dialog Box"
I-7242D DeviceNet/Modbus RTU Gateway User's Manual, July 2006, Version 1.1
