V.4.2.1

CODEC mode

In this operation mode, this output contains the signal coming from the
second line (Talkback Rx).
V.4.2.2

INTERCOM mode

In this mode the audio signal going through line 2 (Talkback Tx) is added to the
AUX output.
V.4.2.3

Other configurations for the Intercom mode

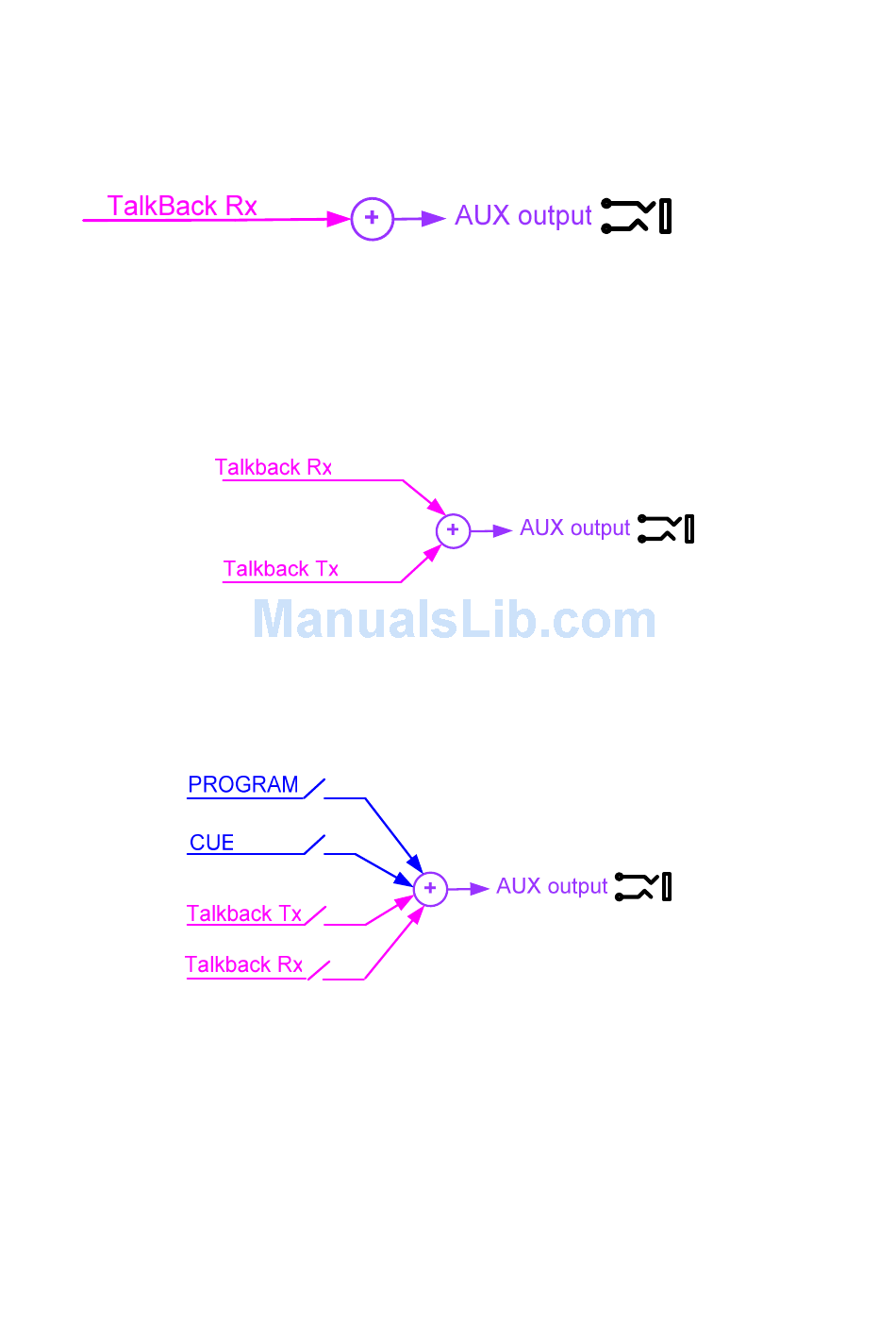

This diagram shows all the signals which can be routed to the 'aux' output:
PortaNet User Manual 28 of 156
