Prodys PortaNet User Manual page 13

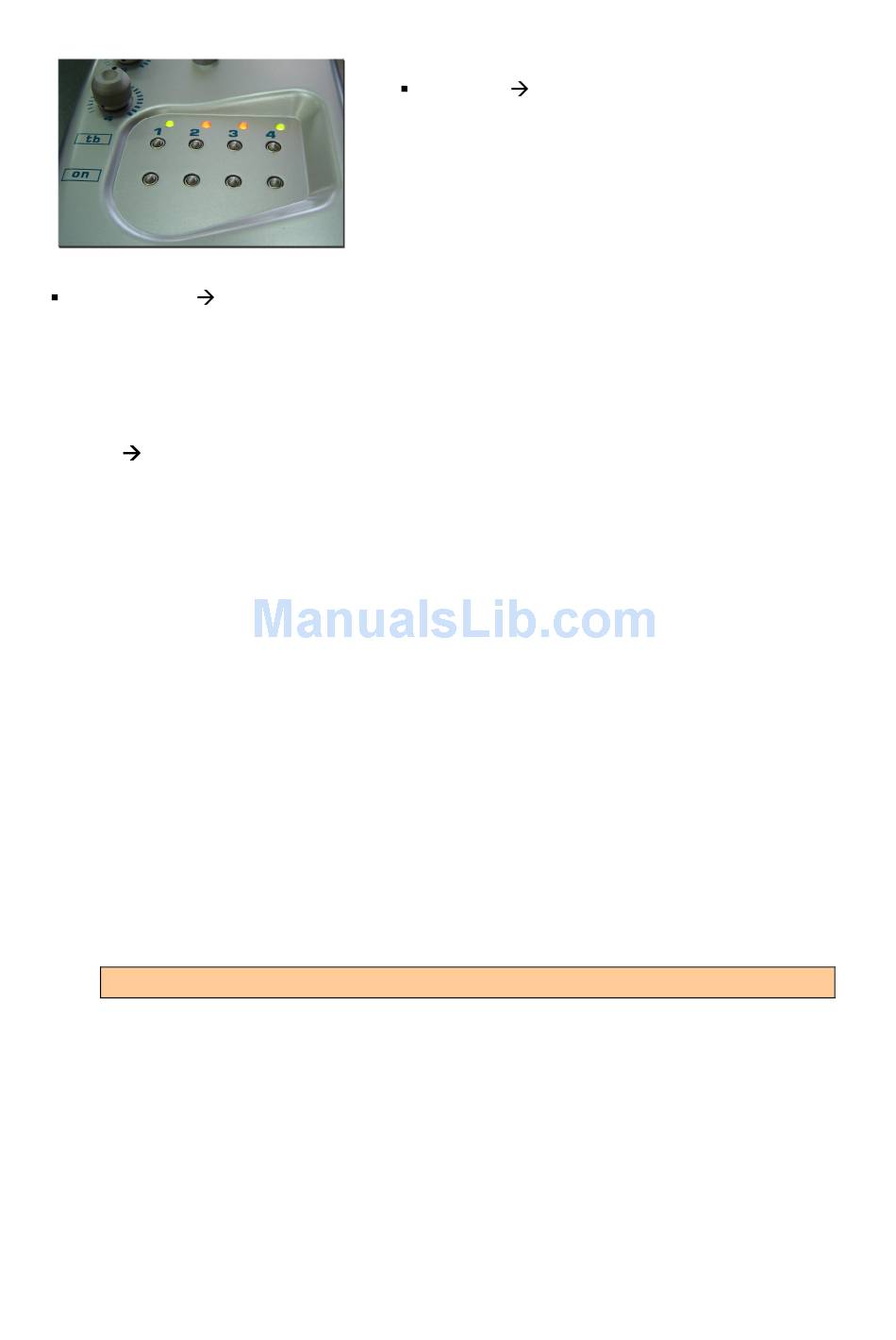

Input audio control keypad.
Tb Key
communications, using either IP or ISDN. Each input can be configured to be
sent through the program line (line 1) or through the coordination or TalkBack
line (line 2). Pressing the Tb key for one input causes this input to be mixed with
those signals assigned to the coordination or TalkBack line (line 2).
LED´s
There is a led related to the status of each input:
• OFF: Input disabled.
• Green: Input enabled and connected to the program line (line 1).
• Red: Input enabled and connected to the TalkBack line (line 2).
Power LED
It shows the power supply status and also battery status.
-GREEN: The external power converter is powering the unit. The battery is
not connected.
-BLINKING ORANGE: The external power converter is powering the unit.
The battery is connected and it is being charged on the system.
-ORANGE: The external power converter is not powering the unit. The
battery is connected and powering the unit.
-BLINKING RED: The external power converter is not powering the unit.
The battery is connected and powering the unit, but it is about to run out
(about 20 minutes / 10% of battery capacity).
When the unit is starting, the Power LED will be blinking green.
PortaNet User Manual
PortaNet allows the user to establish two independent
On Key Each audio input has a key to
enable/disable it. When an audio input is
enabled, it is connected to the program
line (line 1).
13 of 156
