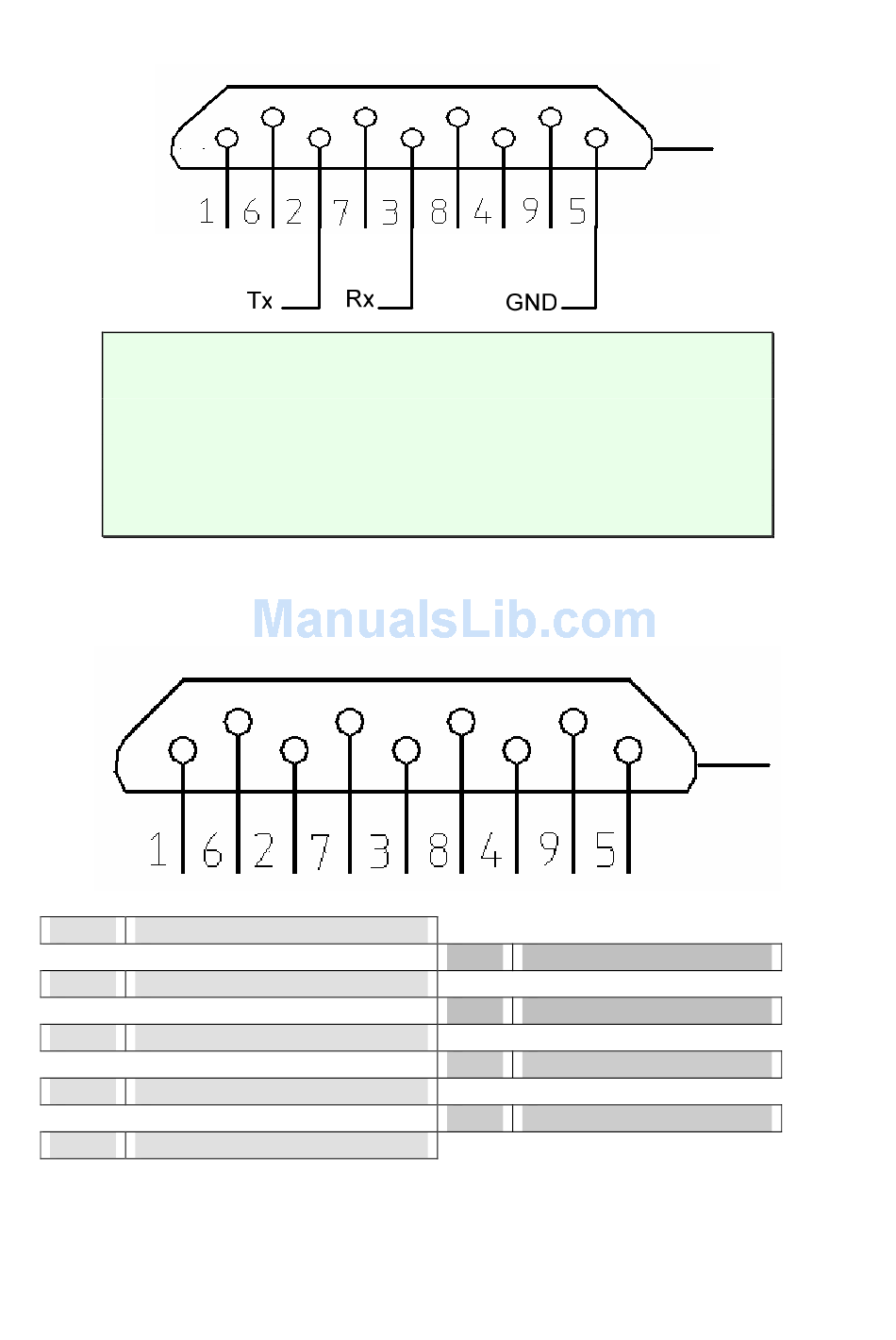

XIV.6 RS 232 port

The PortaNet acts as a DCE device, therefore the connection to each of the
RS232 ports is wired in the following way:
The PortaNet ignores hardware handshaking signals.

XIV.7 GPIO Port

Pin 1 Input 1
Pin 2 GND
Pin 3 Common Relay 1
Pin 4 Normally Closed Relay 2
Pin 5 Normally Open Relay 2
PortaNet User Manual
PortaNet – Pin 2.........................Pin 2 PC
PortaNet – Pin 3.........................Pin 3 PC
PortaNet – Pin 5..........................Pin 5 PC
Pin 6 Input 2
Pin 7 Normally Closed Relay 1
Pin 8 Normally Open Relay 1
Pin 9 Common Relay 2
