X.2 Audio MIC/LINE inputs

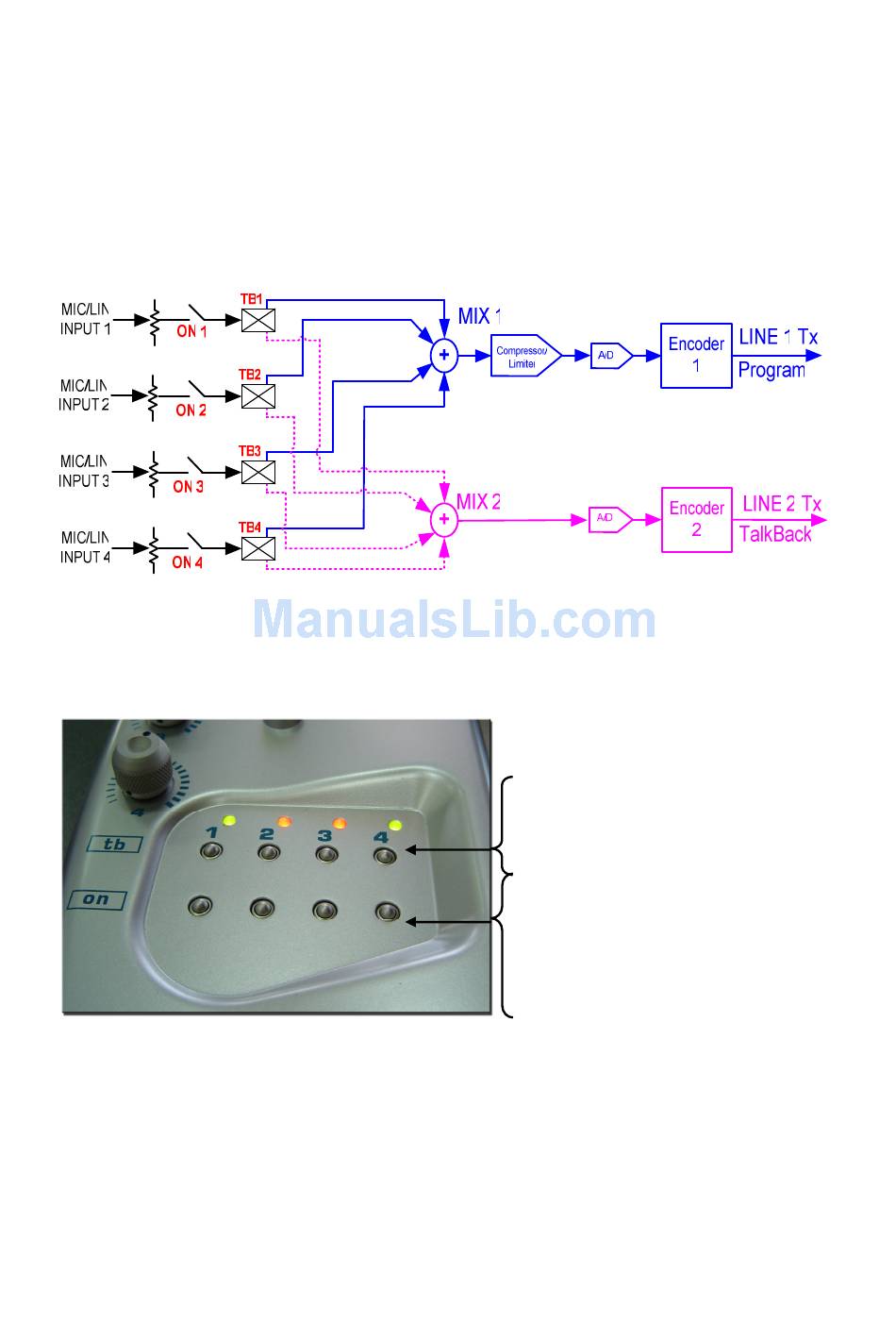

There are four MIC/LINE level audio inputs which can be assigned to either
communication channel:
PortaNet is equipped with four MIC/LINE level audio inputs, and each input can
be configured to accept LINE or MIC level signals. There are two mixers, one for
each communication channel or line, and each audio input can be configured to
be added to the audio contribution on either mix1 or mix2:
The TB key is used to determine which mixer the corresponding audio input will
be added to.
PortaNet User Manual
These are the four TB keys
corresponding to the four inputs
of the unit.
The 'ON' key determines if the
corresponding input
enabled or disabled (muted).
will be
