XI.2 Connecting to an external mixer

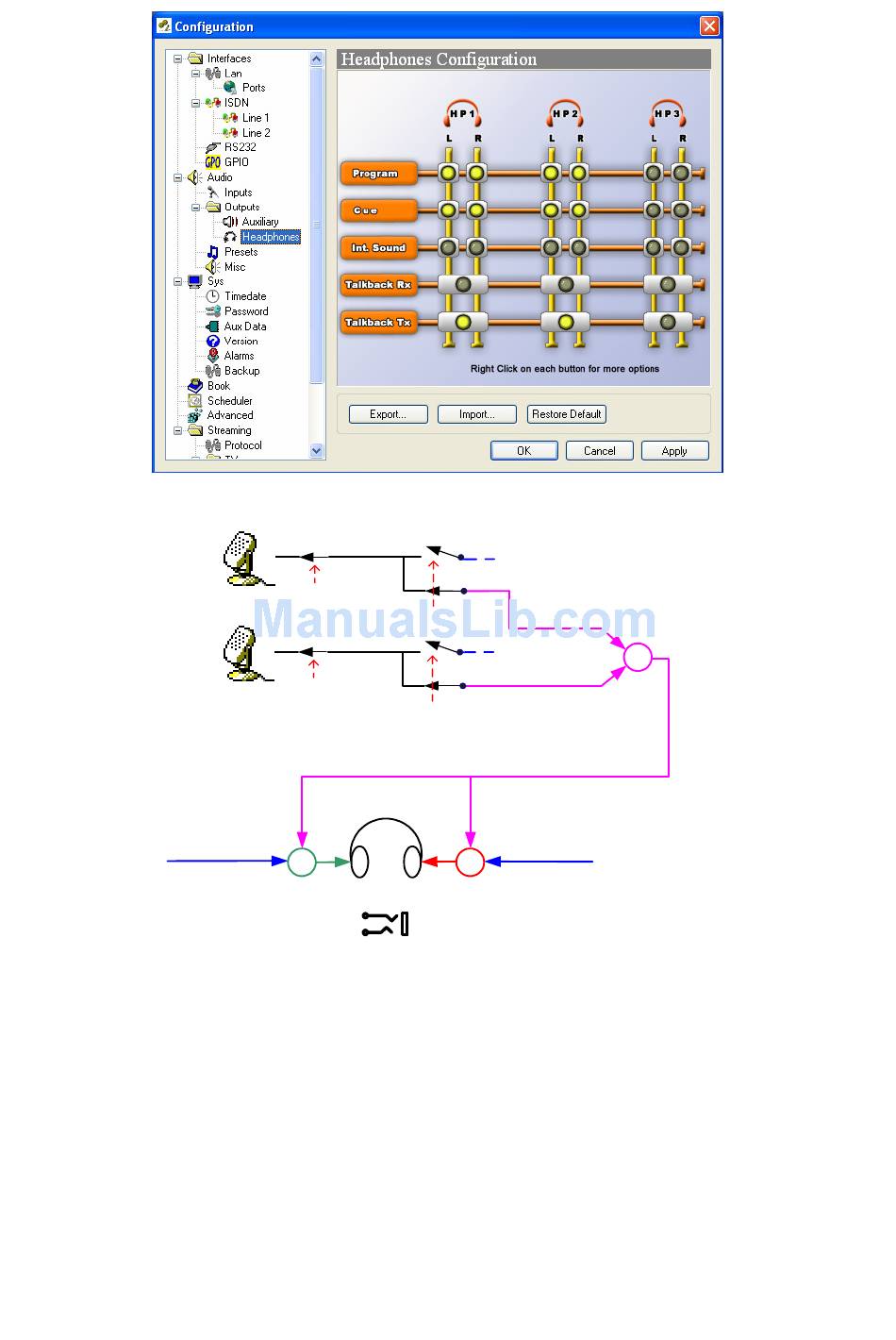

1. Configure two inputs to work with line levels.
2. One of the inputs must be connected to the TalkBack line by pressing the
corresponding Tb key. This input will act as TalkBack audio channel. The
other input will be connected to the program line (ON key) and will act as
program audio channel.
