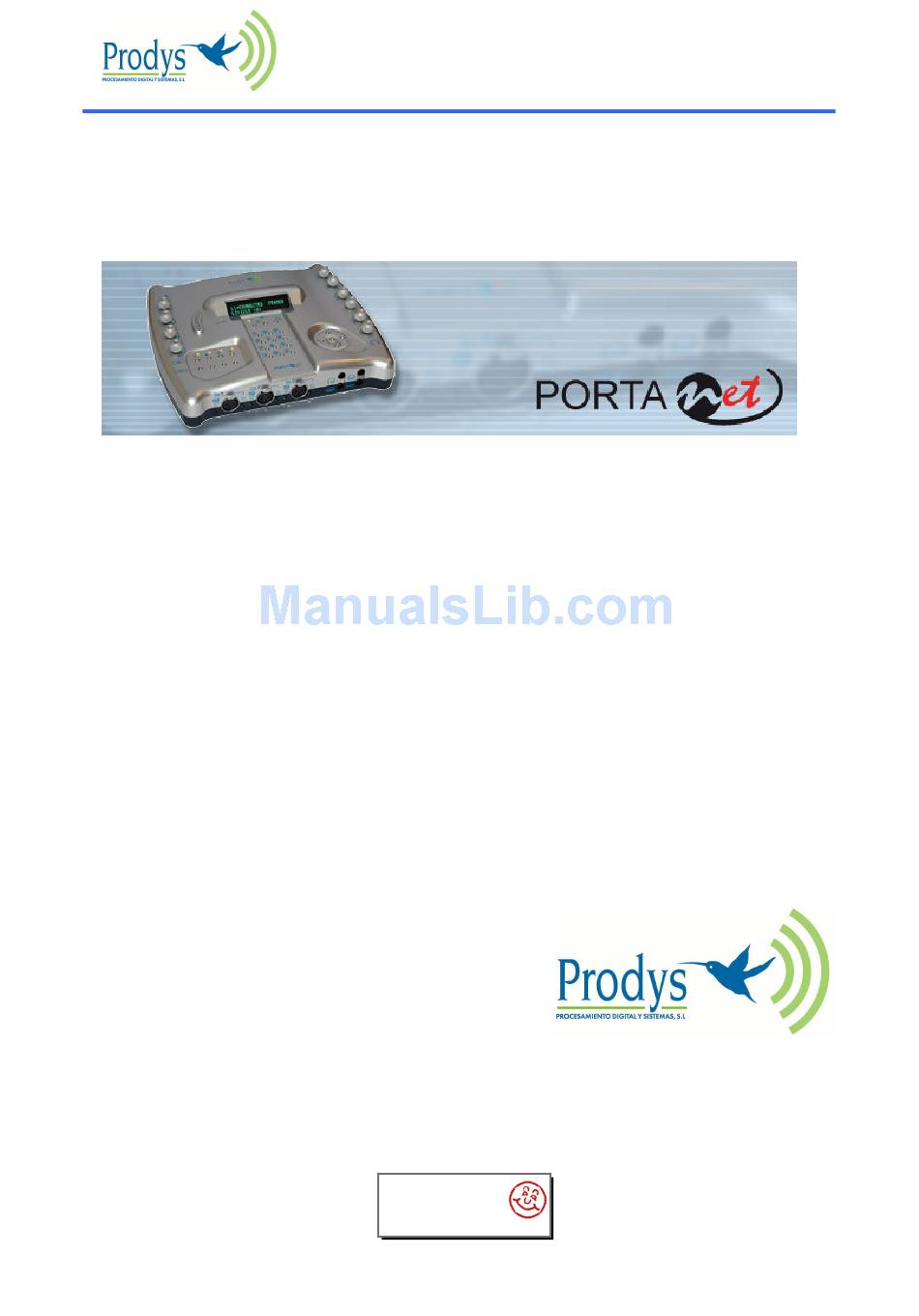

Page 1: User Manual
PortaNet User Manual PortaNet User Manual Ver. 5.4.1.2 interstage Phistersvej 31, 2900 Hellerup, Danmark Telefon 3946 0000, fax 3946 0040 www.interstage.dk - pro audio with a smile...
Page 2: Table Of Contents
IV.2.2 International Sound LINE level input. IV.3 Audio Level Controls IV.4 Audio input configuration IV.4.1 ON keys IV.4.2 TB Keys PortaNet audio Outputs ............22 V.1 Location V.2 Headphone outputs. V.2.1 Technical specifications V.2.2 Operation mode – Headphones Matrix V.2.2.1 Attenuation when the MIC/LINE level input goes to Talkback or Program................
Page 3 VII.10.1.1 Establishing a call when PortaNet is configured as an IP Unicast/Multicast codec............. 39 VII.10.1.2 Establishing a call when PortaNet is configured as an IP Multi- Unicast codec (NET = IP) ............40 VII.10.1.3 Establishing a call when PortaNet is configured as an ISDN codec (NET = ISDN)................
Page 4 VIII.2.3.3 Rx ................73 VIII.2.3.4 Test ................ 73 VIII.2.3.5 Real Time Monitoring............ 75 VIII.3 Call Log VIII.4 Keypad locking VIII.4.1 Locking the keypad from the Portanet keyboard VIII.5 Audio control keypad VIII.6 Scheduler VIII.6.1 Configuration VIII.6.2 How to enable/disable the Scheduler VIII.6.3 Automatic and manual call...
Page 5 IX.1 Selecting the communications interface IX.2 Configuration parameters that are dependant on the network type selected IX.3 PortaNet working as a “DUAL CODEC” over ISDN IX.4 PortaNet working as a “DUAL CODEC” over IP IX.5 About how the Decoder works and automatic searching IX.6 The PortaNet operating as IP codec (Proprietary Protocols)
Page 6 XII.3.2 When connecting two audiocodecs in unicast, there is no audio at one end. XII.3.3 No audio when connecting two audiocodecs using Multicast XII.3.4 Interruptions to audio when connecting two Prodys Codecs. Technical specifications ............. 145 Audio Interfaces Audio Compression...
Page 7 XIV.2 Headphone outputs XIV.3 Aux output XIV.4 Rec output XIV.5 LAN port XIV.5.1 Connecting to a HUB or SWITCH XIV.5.2 Connecting to a PC XIV.6 RS 232 port XIV.7 GPIO Port Updating the firmware............154 PortaNet User Manual 7 of 156...
Page 8: Ce Declaration Of Compliance
CE168X marking is in compliance with Electromagnetic Compatibility Directive (89/336/EEC), and the Low Voltage Directive (72/23/EEC) of the European Union. A “Declaration of conformity” for PortaNet is available on file at Prodys offices in Spain. To obtain this information, please email sales@prodys.net. CAUTION PortaNet uses a Lithium battery.
Page 9: About This Manual
About this manual This manual is the installation and operation guide for Portanet. With this manual, the user will gain a fundamental understanding about the main features and operation modes. This manual is arranged in the following manner: 1. PortaNet general specifications.
Page 10: General Specifications
ISDN interface, which allows ISDN connectivity at those places where IP is not available. PortaNet, as a member of the Prodys IP audio codec family, includes all the features of the ProntoNet, but adds some important enhancements in the audio interfaces and operationally for portable use.
Page 11: Installing The Portanet
Prodys or its distributor as soon as possible. III.1 PortaNet overview PortaNet has all its connections in its front and rear panels. The keypads and display are placed in the top surface. III.1.1...
Page 12 Audio Level controls for the MIC/LINE inputs Each audio input can be adjusted independently. The audio level control can be made locally or remotely by using the PortaNet web browser. Audio Level controls for the headphone outputs The headphone audio level can be adjusted independently for each ear. It is possible to monitor different signals on either side of the headphones.
Page 13 (line 1). Tb Key PortaNet allows the user to establish two independent communications, using either IP or ISDN. Each input can be configured to be sent through the program line (line 1) or through the coordination or TalkBack line (line 2).
Page 14: Iii.1.2 The Front Panel And Its Connectors
Signals present on the headphone audio outputs will be dependent on the configuration of the audio headphone matrix available in the PortaNet web browser. More information about it in next chapter about PortaNet’s input and outputs.
Page 15: Iii.1.3 Rear Panel
Called REC output, this output can carry the program line signal, the return from the program line or the sum of both signals. This is a balanced XLR connector. Further information about audio output configuration can be obtained from chapter 5 - PortaNet Blocks. PortaNet User Manual 15 of 156...
Page 16: Iii.1.3.3 Auxiliary Data: Gpio And Rs232 Ports
Over ISDN, it is possible to choose between ProntoNet format and Pronto2/3 format (in which the GPIOs information cannot be sent). To be backward compatible with ISDN Pronto2/3 Prodys devices, select Pronto2/3 format. When selecting IP as communication interface, the auxiliary data can be sent via a different path, different from the audio one.
Page 17: Iii.1.3.5 Isdn Port
100FD III.1.3.5 ISDN Port The PortaNet incorporates an ISDN terminal adapter that allows connection to a basic rate ISDN line (2B+D). It supports different ISDN protocols (EURO_ISDN, DMS100, AT&T 5ESS and NAT1). There is one RJ45 connector for connecting to an S/T interface S/T (S There is available a special version with U ISDN interface.
Page 18 Once the unit is switched on, the boot sequence will start. This sequence will take about 50 seconds to finish, when the screen will display the status display. When the unit is starting, the Power LED will be blinking green. PortaNet User Manual 18 of 156...
Page 19: Portanet Audio Inputs
PortaNet audio inputs IV.1 Location There are four MIC/LINE level inputs, switchable between LINE and MIC level. Three of them are located on the front panel, and the fourth one is on the rear panel. Moreover, there is an additional line level input located on the rear panel which can be mixed to the headphone outputs.
Page 20: Iv.3 Audio Level Controls
Each audio input can be adjusted independently. The audio level control can be made locally from the knobs or remotely by using the PortaNet web browser. Once the audio input gain setting has been selected to be controlled by remote control, the PortaNet reminds this effect on its display upon any attempt to increase or decrease the audio gains locally by means of the audio control knobs.
Page 21 However, it is possible to change this operation mode from the web page. When the Recover Last Mode is selected, the input will recover its previous status when it leaves the TalkBack line. PortaNet User Manual 21 of 156...
Page 22: Portanet Audio Outputs
V.2.2 Operation mode – Headphones Matrix The audio sources for the headphones can be selected from the PortaNet web browser. At the same time, it is possible to define if some of them will be attenuated depending on which line (program or talkback) its corresponding input t is connected.
Page 23 By right clicking on each cross point a new dialog appears that allows to define the behaviour of the selected output depending on where the corresponding input is connected, that is, depending on if the MIC/LINE level input is connected PortaNet User Manual 23 of 156...
Page 24: V.2.2.1 Attenuation When The Mic/Line Level Input Goes To Talkback Or Program
Talkback Rx. When it is enabled, the corresponding signal will be sent to the headphone outputs only when the corresponding input has been connected to the Talkback channel, that is when its corresponding Tb key has been pressed. PortaNet User Manual 24 of 156...
Page 25: V.3 Line Level Balanced Audio Output: Rec
Talkback channel or not. V.3 Line level balanced audio output: REC The audio sources for the REC output can be selected from the PortaNet web browser. V.3.1 Technical specifications Bandwidth 20Hz-20kHz (0.3dB).
Page 26: V.3.2.1 Codec Mode
(CUE signal). One application might be to record an interview or a retransmission. This mode is selected by clicking Cue and Program signals in the auxiliary output configuration matrix. PortaNet User Manual 26 of 156...
Page 27: Technical Specifications
THD+N < 0.005% @ 1kHz. SNR < 100 dB. Output impedance < 50 ohms. V.4.2 Operation modes Depending on which signals are selected from the auxiliary output configuration, the AUX output supports different configurations. PortaNet User Manual 27 of 156...
Page 28: Codec Mode
In this mode the audio signal going through line 2 (Talkback Tx) is added to the AUX output. V.4.2.3 Other configurations for the Intercom mode This diagram shows all the signals which can be routed to the ‘aux’ output: PortaNet User Manual 28 of 156...
Page 29: Portanet Audio Presets
PortaNet audio presets PortaNet Audio presets allow the user to save audio settings and reapply them in a single step. Audio presets are available in the Audio configuration menu of the PortaNet web browser: VI.1 What is an audio preset?
Page 30: Vi.2 Creating & Modifying A Preset
Once the name of the new preset has been added to the list, it is necessary to press Ok or Apply in order for the audio preset to be stored. The new audio preset will be created with the current audio configuration. PortaNet User Manual 30 of 156...
Page 31: Vi.3 Loading A Preset
“Load” button. The new configuration can be checked by moving through the different audio configuration menus. Until the “Apply” or “Ok” buttons are not pressed, the new audio configuration will not take effect. This option is available from version 5.4.0 onwards PortaNet User Manual 31 of 156...
Page 32: Operation Guide
This key provides the user with a simple and quick way to display detailed information about the status and configuration of the PortaNet. As the screen is not able to display all the information at once, you can cycle through the different information screens by repeatedly pressing the INF button.
Page 33: Vii.3 Selecting The Communication Interface
VII.3 Selecting the communication interface PortaNet is able to communicate both via ISDN and via IP. The interface can be selected from the NET option within the menu. M A I N M E N U { N E T } E N C...
Page 34: Vii.4 Configuring The Communication Interface
An abbreviation for ‘Calling Number’. This option allows you to program up to a maximum of three numbers that will work as incoming call filters. When the CNUM option is activated, the PortaNet will respond automatically only to calls made from these CNUM numbers. It is possible to program each line separately.
Page 35: Vii.4.2 Configuring The Lan Port
Configuring the LAN port Before making a connection over any IP network it is necessary to configure the IP addressing parameters: IP address, netmask and gateway. PortaNet allows the assignment of the IP parameters either manually or by DHCP. Manually User must enter the following IP parameters manually: 1.
Page 36: Vii.7 Audio Checking
L 2 : D O W N VII.7 Audio checking PortaNet is equipped with a Vu meter on the top panel, and furthermore it offers the possibility to get audio level information from the display by pressing the INF key in the menu keypad. Let’s take a look at both types of information: The VU meter on the top panel measures the audio level just before the compressor/limiter.
Page 37: Vii.8 Selecting The Compression Algorithm
VII.10 Calling from PortaNet PortaNet can establish connections both via ISDN and IP networks. The procedure is very similar and can be carried out from the web page or the main menu. Let’s see how to establish a call from the top surface control keypad.
Page 38: Vii.10.1 Call1, Call2 And Phone Book Keys
A long press (over 1 second) will disconnect the associated line. It is possible to program a number of call retries from the PortaNet web page. DUAL codec: PortaNet is able to operate as a DUAL codec over ISDN and over IP (when configured in ‘DOUBLE’ mode).
Page 39: Vii.10.1.1 Establishing A Call When Portanet Is Configured As An Ip Unicast/Multicast Codec
VII.10.1.1 Establishing a call when PortaNet is configured as an IP Unicast/Multicast codec Pressing CALL 1 the screen will display the following: L A N L 1 M O D E { M U L T I C A S T } U N I C A S T...
Page 40: Vii.10.1.2 Establishing A Call When Portanet Is Configured As An Ip Multi
1 0 . 0 . 0 . 0 To make the connection press OK. “Period” is selected with the # key. VII.10.1.2 Establishing a call when PortaNet is configured as an IP Multi- Unicast codec (NET = IP) Pressing CALL 1 the screen will display the following:...
Page 41: Vii.10.1.3 Establishing A Call When Portanet Is Configured As An Isdn Codec (Net = Isdn)
L 1 : 1 2 3 4 5 6 7 8 9 0 L 2 : 1 2 3 4 5 6 7 8 9 0 Pressing OK again will process this information, that is, the PortaNet will configure the Encoder according to the BOOK entry and make the connection over ISDN or IP.
Page 42: Vii.12 Incoming Calls
In this way we can automatically map incoming calls to each line, and each line will only respond to those calls which were made to this local number. When the local number is programmed the unit only detects as an incoming call PortaNet User Manual 42 of 156...
Page 43: Vii.12.2 Incoming Calls Via Ip
In addition, support for industry- standard algorithms is provided under the ‘Streaming Protocol’ tab in the Configuration window of PortaNet web page. A preliminary version of all protocols defined as ‘mandatory’ by the EBU group in their N/ACIP (Audio Contribution Over IP) project is supported. This project defines the standard to achieve interoperability between audio codecs over IP.
Page 44 All the calls made from line 1 in ProntoNet or PortaNet will be received through line 1. All the calls made from line 2 in ProntoNet or PortaNet will be received through line 2. Capít ulo I PortaNet User Manual...
Page 45: Portanet Remote Control
CAT-5 cable, or remotely from a computer connected to the LAN. To access the PortaNet using Internet Explorer, enter the IP address of the unit in the address bar. Keep in mind that the PortaNet factory IP address is 192.168.100.100 and it could be necessary to modify the network configuration...
Page 46 The first time the user accesses the PortaNet web page, an OCX file has to be downloaded and installed on the computer. Microsoft Internet Explorer can be configured to block OCX objects installation and/or execution. So, depending on the configuration of the web browser, a message like the following might appear when first accessing the PortaNet web page: Go to Internet Options in IExplorer, click on ‘Security’...
Page 47 OCX file when first accessing the web page of the unit, please disable UAC (User Access Control) on Windows Vista. Once the OCX file has been installed in the computer, UAC can be enabled again. PortaNet User Manual 47 of 156...
Page 48: Viii.1 Getting Started
VIII.1 Getting Started To access the PortaNet from the Internet Explorer enter the IP address of the unit in the address bar as shown here: The user can choose whether to monitor or to control PortaNet from the Web Page. Bear in mind that only one page at the same time can control the unit.
Page 49 The Web page is arranged in the following main areas: A. General Configuration area. B. Keypad locking control. C. Audio keypad remote control. D. Audio encoding configuration and communication control. E. Alarms area F. Monitor area. PortaNet User Manual 49 of 156...
Page 50: Viii.1.1 Extra Options In The Login Dialog Box
Timeout: If an acknowledgment has not occurred in a specified amount of time, the timeout ends the waiting loop. In some network conditions could be necessary to increase the time out in order to get the PortaNet control. Base Port: When PortaNet ports have been modified, it will be necessary to change this parameter according to the new port configuration in order to get to access to the PortaNet web browser.
Page 51: Viii.2 General Configuration
The right window shows the window dialog to configure the selected port. For example, if we select the LAN interface: VIII.2.1.1 LAN port PortaNet allows the assigning of the IP parameters both manually and automatically (DHCP). Manually User must enter the following IP parameters manually: 4.
Page 52 By setting DHCP, the unit will receive its IP parameters when starting. These IP settings might be different from time to time, that is why PortaNet supports RIP2 protocol. This protocol allows the user to set an ‘internal’ IP address, in order that the unit can be identified regardless of the IP settings provided by the DHCP server.
Page 53 As can be seen from the picture, the DNS information can be obtained from a DHCP Server. VIII.2.1.1.1 Ports It is possible to configure which ports the unit will use when selecting Prodys proprietary protocols for IP communications For more information, please read chapter IX.6.6– Prodys Proprietary Protocols PortaNet User Manual...
Page 54 192.168.1.2, and base port 40011, the following call destination should be entered into the ‘Dial’ window: 192.168.1.2:40011. 4. When establishing a bidirectional call with Prodys IP codecs, two connections are made automatically, one for each direction. For the...
Page 55 IP address 10.1.5.0 and its base port is 40011, in the receiver, the following entry should be configured in its phone book: VIII.2.1.1.2 SNMP configuration It is possible to set the SNMP community. This option is available from version 5.2.1 onwards. PortaNet User Manual 55 of 156...
Page 56: Viii.2.1.2 Isdn Terminal Adaptor Configuration
It is possible to set speed and duplex configuration to the following values: VIII.2.1.2 ISDN Terminal adaptor Configuration The first dialog allows the selection of the ISDN protocol. There are four options: Euro-ISDN, 5ESS, DMS 100 and NAT1: PortaNet User Manual 56 of 156...
Page 57 This option is found in the ISDN set up menus under LNUM (Local Number). • Enabling/disabling G711 ISDN incoming calls This check box allows the user to enable/disable voice calls (G711) over ISDN. • Enabling/Disabling hidden-number ISDN calls PortaNet User Manual 57 of 156...
Page 58: Viii.2.1.3 Rs232 Port
From this option the inputs and outputs of the GPIO port are configured. INPUTS Transparent Under this configuration, the state of the input will be present in its homologous output in the PortaNet connected on the other end. Connect From Book When this input is activated, the PortaNet will proceed automatically to connect the line 1 or line 2 (as configured).
Page 59 DUAL CODEC. Decoder 2 NOT framed The output will be activated when the Decoder 2 is NOT Framed. It is only useful when the PortaNet is working in ISDN mode as a DUAL CODEC. Backup Active The output will be activated when the ISDN Backup is working.
Page 60 Transparent configuration only works with audio algorithms that support ancillary data and have been previously activated. When a GPO is configured to monitor alarms (“Alarm active”), it is possible to select which alarm will enable this output. PortaNet User Manual 60 of 156...
Page 61: Viii.2.2 System Configuration
PLL: This is a special option that allows you to select the PLL reference clock when NET = IP. Redial:It is possible to configure a number of redials. The PortaNet will try the connection in the following cases: 1.- The unit is trying the connection for the first time.
Page 62 . This algorithm comes into scene when receiving audio over IP. This display is active when the audio data is "framed" - Under For more information please read chapter IX.6.7 – Prodys Proprietary Protocol v2. PortaNet User Manual 62 of 156...
Page 63 SYS configuration menu. PortaNet external protocol: The PortaNet Software Development Kit provides a tool to manage the PortaNet units from external applications or devices different than ProdysControl. In this manner, it is possible to customize the control of the units and to integrate them in a global management system.
Page 64: Viii.2.2.1 Timedate
This option allows the user to synchronize time and date by using SNTP protocol (Simple Network Time Protocol). SNTP operates always in the client-server model and for this reason, PortaNet can work as SNTP server or SNTP client. VIII.2.2.2 Password Whenever the web browser is started, it is necessary to enter a security password.
Page 65: Viii.2.2.3 Aux Data
Over ISDN, it is possible to choose between ProntoNet format and Pronto2/3 format (in which the GPIOs information cannot be sent). To be backward compatible with ISDN Pronto2/3 Prodys devices, select Pronto2/3 format. When selecting IP as communication interface, the auxiliary data can be sent via a different path, different from the audio one (the auxiliary data are embedded in the audio frames).
Page 66: Viii.2.2.4 Software Versions
For this to happen, alarms have to be enabled (see chapter VIII.8 Alarms). PortaNet can be fully monitored though SNMP protocol. It is also possible to notify alarm events via email. The user can send alarm information to several email addresses at the same time.
Page 67: Viii.2.2.6 Backup
VIII.2.2.6 Backup Backup Configuration. The PortaNet allows the user to use the ISDN line as a backup when the unit works in IP mode. The backup is enabled by clicking the “Backup” box. For more information about the backup operation see chapter IX.10 – How the backup Works? VIII.2.2.7...
Page 68: Viii.2.2.8 Scheduler
Streaming Control Protocol Timeout: When the link is down for the specified number of seconds, the audio connection is finished automatically by the unit. This avoid situations where the connection is lost, and the unit still shows ‘connected’ on the screen. PortaNet User Manual 68 of 156...
Page 69: Viii.2.2.10 Exporting / Importing The Configuration
These tools are grouped in the following manner: 1.- Protocol. 2.- Transmission parameters. 3.- Reception parameters. 4.- Test tool. PortaNet User Manual 69 of 156...
Page 70: Viii.2.3.1 Protocol
IP. There are five choices; • Proprietary: Prodys proprietary IP streaming protocol. • Proprietary v2: Prodys proprietary IP streaming protocol version 2. • SIP: SIP is a signaling protocol for creating, modifying, and terminating sessions with one or more participants.
Page 71 TBP value. When the packet size needs to be fragmented, keep in mind that the overhead changes for that reason. When it happens it is indicated as follows: PortaNet User Manual 71 of 156...
Page 72 ToS field in the IP header. This field can be used to carry out QoS in the network. Streaming packets Time To Live: Configure the Time To Live parameter. PortaNet User Manual 72 of 156...
Page 73: Viii.2.3.3 Rx
A decisive factor in real time audio streaming is the ‘jitter’, or delay variation. To deal with the jitter in the connection, PortaNet provides a tool which allows the user to modify the size of the reception buffer, and so, to compensate the jitter.
Page 74 This tool is only available when lines are disconnected. How to run the tests: 1.- First of all the user must enter the IP address of the remote PortaNet. This dialog stores the last used IP addresses. 2.- Select the test you wish to perform.
Page 75: Viii.2.3.5 Real Time Monitoring
Once the test is finished, it is possible to export the results to an XML file. VIII.2.3.5 Real Time Monitoring It is possible to monitor the streaming operation in real time by ticking a checkbox. Available from version 5.0.0 onwards. PortaNet User Manual 75 of 156...
Page 76: Viii.3 Call Log
Buffer overflow might be caused by the opposite scheme: The clock at the transmitter side is running quicker than the clock at the receiver side. Prodys PPL adjustment mechanism is aimed at dealing with this clock jitter and thus to compensate for this variation and guarantee proper audio over IP.
Page 77 PortaNet User Manual 77 of 156...
Page 78: Viii.4 Keypad Locking
VIII.4 Keypad locking It is possible to lock the PortaNet keypad remotely. This can be done in three different ways: a. Menu+ Dial + Audio To lock all the keys on the top panel. b. Menu + Dial To lock only the dial and menu keypad, but not the audio control keypad.
Page 79: Viii.4.1 Locking The Keypad From The Portanet Keyboard
KEYPAD PASSWORD: ENABLE + PASSWORD VIII.4.1 Locking the keypad from the Portanet keyboard To Lock the keypad from the PortaNet top panel keyboard, use the following key combinations: “OK” + “*” To lock all the keys on the top surface.
Page 80: Viii.6 Scheduler
How to enable/disable the Scheduler Scheduler dialog checkbox which allows activation/deactivation of the Scheduler. When the Scheduler system is disabled, none of the scheduled calls will be made. In addition, each scheduled call can be enabled/disabled individually. PortaNet User Manual 80 of 156...
Page 81: Viii.6.3 Automatic And Manual Call
Scheduler dialog, by changing the value of the field ‘Manual call priority’. VIII.6.4 Programming the scheduler To add a new automatic call, click on the ‘Add’ button in the Scheduler configuration window. The following window will be displayed: PortaNet User Manual 81 of 156...
Page 82: Viii.6.5 Name
This option allows the programming of call repetitions based on time or date: Time recurrence and Date recurrence. To configure the unit for “Date recurrence” mark the corresponding checkbox in the Scheduler configuration window and click on “Recurrence”. The following window will be displayed: PortaNet User Manual 82 of 156...
Page 83 By clicking on “Preview and edit” tab, the user will obtain a calendar wherein those days when this pattern is active will be coloured on red. PortaNet User Manual 83 of 156...
Page 84 “Ends on”: From here, it is possible to establish the end of this recurrence. It can be never or after an specific number of occurrences. PortaNet User Manual 84 of 156...
Page 85: Viii.6.9 Scheduled Call Configuration
VIII.6.9.1 Manual configuration To configure these parameters manually, clic on “Edit…”. The following dialog will be displayed: From this window the user can enter all the parameters involved in a call establishment. PortaNet User Manual 85 of 156...
Page 86: Viii.6.9.2 Automatic Configuration From The Phone Book
Scheduler list on the Scheduler Configuration Window. Then, by clicking on “Delete”, the select pattern will be deleted. VIII.6.12 Copying and pasting scheduled calls From the Scheduler configuration window, the user can copy and paste previously configured scheduled calls. PortaNet User Manual 86 of 156...
Page 87: Viii.6.13 Monitoring Scheduled Calls
When one call related to one of the patterns defined in the scheduler of the unit is established, the message “SCHEDULED CALL IN PROGRESS” will be displayed on the web page for the duration of the call. PortaNet User Manual 87 of 156...
Page 88: Viii.7 Controlling The Portanet
VIII.7 Controlling the PortaNet From the control area it is possible to select the communication interface, as well as to configure the encoders and control the communications. VIII.7.1 Selecting the NET interface By clicking on the ‘Net’ area: This option is only available when the lines are disconnected.
Page 89: Viii.7.3 Making Calls
By double-clicking on the Tx or Rx connection area the user can access the call menu window: Depending on the selected communication interface, IP or ISDN, different options appear: When NET = ISDN, the following window is displayed: PortaNet User Manual 89 of 156...
Page 90 The user can enter the ISDN number or can select an index from the Phone Book. The encoder can be configured from this dialog as well. To make the call click on “Dial”. When NET = IP, the following window is displayed: PortaNet User Manual 90 of 156...
Page 91 The user can enter the IP address or can select an index from the Phone Book. The encoder can be configured from this dialog as well. It is also possible to discover automatically all Prodys IP codecs connected to the IP network: In order to make easy the dialling operation over IP networks, a new facility was included in the Dial window.
Page 92: Viii.7.4 Disconnecting The Line
“Disconnected”: The line is detected physically but no connection is being made. Beside the text appear the disconnection codes. “Calling”: In the process of making a connection. “RING”: Receiving a call on the line. PortaNet User Manual 92 of 156...
Page 93: Viii.7.6 Decoder Status
The Decoder status is shown on the right side of the Audio Mode area: The Decoder status: “Searching”: The decoder is not synchronized. “Framed” : The decoder is synchronized. “Idle”: The line is disconnected. “Not available”: Decoder not available. PortaNet User Manual 93 of 156...
Page 94: Viii.8 Alarms
SNMP traps or emails to notify alarms information. VIII.8.1 Selecting Alarms The unit supports many different alarms. The selection menu is opened by clicking over the Alarm area. PortaNet User Manual 94 of 156...
Page 95 Decoder needs some time to detect the incoming compression mode. Line Disconnected: Line 1/2 has been disconnected unexpectedly, manually disconnected or both. Backup Active: The ISDN backup line is working. General: In internal hardware error was detected by the software. PortaNet User Manual 95 of 156...
Page 96: Viii.8.2 Monitoring Alarms
VIII.8.3 Alarms History The alarms are saved on the non volatile memory of the PortaNet. It means that it is possible to know what happened on the past even if the unit was disconnected of the network. The alarms history can be showed by clicking over the lamp or over “History”...
Page 97: Viii.8.4 Alarms Notification
SNMP trap will be sent when an alarm is activated or deactivated, with the time and type of alarm. For this to happen, alarms have to be enabled (see chapter VIII.2.2.5 - Alarms. PortaNet can be fully monitored though SNMP protocol.
Page 98: Viii.8.4.2 Email
From the alarm dialog the user can enter several e-mail addresses where this information will be sent, to inform about the changes in the status of any alarm. It is also possible to define the sender address of the email. PortaNet User Manual 98 of 156...
Page 99: How Does The Portanet Work
This chapter is therefore a practical guide to help in understanding just how the PortaNet unit works under different configurations, especially the more unusual ones. IX.1 Selecting the communications interface Firstly, when we refer to the ‘communications interface’...
Page 100: Ix.3 Portanet Working As A "Dual Codec" Over Isdn
(Line 1 or Line 2 as seen by the PortaNet) it is possible to send an audio signal encoded with any of the available codec algorithms. The menu offers the option to configure Encoder 1 and Encoder 2 separately with MONO signals on each channel.
Page 101: Ix.4 Portanet Working As A "Dual Codec" Over Ip
This configuration can be set both from the menu and from the Web Page. PortaNet is aimed to be used as a MONO audio codec. To configure the unit to be used in STEREO, please read the chapter “Configuration Examples”.
Page 102: Ix.5 About How The Decoder Works And Automatic Searching
The PortaNet Decoder system doesn’t need to be configured as it is totally automatic. However, it is necessary to point out some aspects of how it works as it depends on the format of incoming data. The PortaNet is able to synchronise automatically to the following algorithms under the following conditions:...
Page 103 Encoder to the same algorithm. 3. If we want the Encoder to switch to the algorithm detected by the Decoder, the Encoder should simply be set to AUTO mode. PortaNet User Manual 103 of 156...
Page 104: Ix.6 The Portanet Operating As Ip Codec (Proprietary Protocols)
IX.6 The PortaNet operating as IP codec (Proprietary Protocols) The operation of the PortaNet as an IP codec offers three operational modes: UNICAST, MULTICAST and MULTIUNICAST IX.6.1 UNICAST communications The term UNICAST is used in the networking world to refer to the connection to a single destination.
Page 105: Ix.6.3 Establishing A Unicast Connection From The Portanet
As we have already mentioned, the audio data connection is bi-directional (as in an ISDN codec) and we need two connections, one in each direction. For this, the PortaNet that receives and accepts the call will automatically call back to the originating PortaNet and establish a reverse connection.
Page 106 “Prodys eXtended Real Time Protocol (PX-RTP) or SAP (according to the new standard for IP compatibility) will be used. The PortaNet transmitter cannot be in automatic encoding mode. To guarantee a constant delay all the units must synchronise their clocks.
Page 107: Ix.6.5 Multi-Unicast
Depending on the compression mode, up to 10 Tx connections will be available: • MPEG L2, L3 y AAC: Up to 10 Tx + 1 Rx. • PCM, G711, G722, APTX: Up to 3 Tx + 1 Rx. PortaNet User Manual 107 of 156...
Page 108: Ix.6.6 Prodys Proprietary Set Of Protocols
(automatic audio synchronisation in all modes). • Prodys Real Time Protocol (P-RTP): This is a protocol based on UDP used for the transmission of audio. • Prodys eXtended Real Time Protocol (PX-RTP). This is a protocol based on UDP used for the transmission of multicast audio.
Page 109: Ix.6.7 Proprietary (Set Of Protocols) V2
-Rx occupation: With average, maximum and minimum usage. Very low percentage of buffer occupation will cause audio interruptions and drop- outs. -Jitter: High jitter values will match with low buffer occupation. -Lost and disordered packets. This protocol is available from version 5.2.1 onwards. PortaNet User Manual 109 of 156...
Page 110 Data from each connection is stored independently so that it is possible to access data from connections other than the current one. In addition, it is possible to delete, export or import data from any previous call. PortaNet User Manual 110 of 156...
Page 111: Ix.6.8 Prodys Ports For Prodys Proprietary Protocols (V1 & V2)
IX.6.8 PRODYS PORTS for Prodys Proprietary protocols (v1 & v2) These are the default ports used by Prodys IP Codecs for their IP connections: HeraFlash & Prodys Control UDP:50013 Web Page TCP 80: HTTP TCP 50011: Web Page TCP 50017: ProdysControl...
Page 112 SIP Protocol manages by itself to negotiate the convenient communication details with the remote party. For Prodys’ former customers performing a call using SIP is much the same as using Prodys’ proprietary protocols given that the SIP configuration is set.
Page 113: Ix.8 Sap
When selecting SAP as communication protocol, only multicast calls will be available (point-to-multipoint). In addition, the user will have to indicate the announcement IP address and port on which the audio streaming is ‘announced’. PortaNet User Manual 113 of 156...
Page 114 Multicast Rx call types will be available. To launch an audio streaming over IP with SAP the user shall select Multicast Tx as call type from the dialing window, and type in the multicast IP address to send the audio to. PortaNet User Manual 114 of 156...
Page 115 To receive this audio streaming, the user shall select the Multicast Rx call type, and will introduce the same Multicast IP address as the transmitter. PortaNet User Manual 115 of 156...
Page 116: Ix.9 Portanet Operating As An Isdn Codec
PortaNet operating as an ISDN codec The PortaNet as ISDN codec is very similar to the Pronto 3, therefore those users that are familiar with the Pronto 3 will find it easy to operate the PortaNet over ISDN. The most important points that a user must have in mind for this mode are as follows: 1.
Page 117: Ix.9.1 Establishing Isdn Calls
The CALL 1 key is for calling on Line 1 and the CALL 2 key is for calling on Line 2. On pressing the CALL 1 key the display prompts you to enter a number. Once the number is entered and the ENTER key is pressed, the PortaNet will go ahead and make the call.
Page 118: Ix.9.3 Restrictions In Isdn Communications
DUAL CODEC only allows two MONO communications. The display shows an error code to indicate the situation. b. PortaNet receives a call in the line 2 and detects that the audio is encoded in DUAL, JOINT STEREO or STEREO mode at 64 Kbps.
Page 119: Ix.10 How The Backup Mode Works
IX.10 How the backup mode works PortaNet when is configured as IP codec (NET = IP) can use the ISDN connection as backup line, that is, the ISDN will be an alternative communication line when the IP line is dropped.
Page 120: Ix.10.1.1 Portanet Master Operation
Backup Line 64 / 128 Kbps As we can see, the PortaNet configured as MASTER monitors the main line and it decides when the backup ISDN line must start to work. The PortaNet SLAVE only works in ISDN depending on if there is communication by it.
Page 121 (64 o 128 Kbps) when the unit starts working in backup mode. The PortaNet will try the connection as many times as it will be necessary until the connection will be established or until it decides that the main line has been recovered.
Page 122: Ix.10.1.2 Portanet Slave Operation
IX.10.1.2 PortaNet SLAVE operation If the PortaNet works as SLAVE, the entry or exit to the backup mode will be guided by different criterions than the defined ones in the MASTER mode. First of all, it is necessary that the Backup option be enabled.
Page 123 This option is only available from the PortaNet web Page: This option is very useful for an 64kbps ISDN link, where sending a stereo signal could involve a lack in the audio quality. Thus, encoding L+R signal, as a mono signal, will provide a much better audio quality.
Page 124: Portanet Blocks
PortaNet Blocks Knowing the different parts that comprise the PortaNet will help the user understand the various operational modes. The following chapter describes the different elements and their relationships. These sections are arranged in two different groups: Communications and audio.
Page 125: X.2 Audio Mic/Line Inputs
There are four MIC/LINE level audio inputs which can be assigned to either communication channel: PortaNet is equipped with four MIC/LINE level audio inputs, and each input can be configured to accept LINE or MIC level signals. There are two mixers, one for...
Page 126: X.3 Audio "International Sound" Input
3. In IP, the compression mode for line 2 is fixed to G722 mode. Audio input diagram All the four inputs of the PortaNet are balanced XLR connector. Three of them are located on the front panel and the fourth one is on the rear panel. All of them can be configured to accept LINE or MIC levels, and to be phantom powered (48 volts.).
Page 127: Headphone Outputs
In other words, it will depend on whether the input is connected to line 1 or line 2. The audio sources for each headphone can be selected from the PortaNet web browser. At the same time, it is possible to define whether some of them will be attenuated depending on which line (program or talkback) its corresponding input t is connected.
Page 128 Attenuation when the MIC/LINE level input goes to Talkback or Program It is possible to define an automatic attenuation on signals that feed the headphone outputs when the corresponding inputs go from Program to Talkback PortaNet User Manual 128 of 156...
Page 129: Attenuation When The Mic/Line Level Input Goes To Talkback Or Program
One of them, called ‘AUX’ is located on the front panel, and the other one, called ‘REC’ is on the rear one. The different configurations and technical specifications are detailed in the chapter V - PortaNet audio outputs. PortaNet User Manual 129 of 156...
Page 130: Operation Examples
Tx must be selected in the headphone configuration matrix. By selecting also the Talkback Rx signal, both the audio contribution and the received audio of the TalkBack line will be added on both ears, as it can be seen from the following diagram: PortaNet User Manual 130 of 156...
Page 131 The corresponding LED should be on RED. 3. In order for the commentators to be able to hear each other, Talkback Tx must be selected in the headphone configuration matrix as it can be seen from the following diagram: PortaNet User Manual 131 of 156...
Page 132: Xi.2 Connecting To An External Mixer
2. One of the inputs must be connected to the TalkBack line by pressing the corresponding Tb key. This input will act as TalkBack audio channel. The other input will be connected to the program line (ON key) and will act as program audio channel. PortaNet User Manual 132 of 156...
Page 133 3. The ‘REC’ and ‘aux’ outputs must be configured from the Auxilliary Outputs menu in the following way: LINE 1 Decoder REC output Program Rx LINE 2 TalkBack Rx Decoder AUX output TalkBack Rx PortaNet User Manual 133 of 156...
Page 134: Xi.3 Stereo Operation Mode
6. The left audio channel of the received audio will be present on the ‘REC’ output, whilst the right audio channel will be present on the ‘AUX’ channel. The output matrix must be configured as follows: PortaNet User Manual 134 of 156...
Page 135 PortaNet User Manual 135 of 156...
Page 136: Problem-Solving Guide
2. The codec at the other end is not working properly. 3. The equipment may be faulty. The easiest way to test it is to make a ‘loop call’, by calling from the unit to itself and check if everything work fine. PortaNet User Manual 136 of 156...
Page 137: Xii.1.3 There Is No Audio Output At Either End
XII.2 ISDN communication problems Here follows some common problems and solutions when communicating via ISDN networks. Applicable to some Prodys Codecs. XII.2.1 Unit cannot make outgoing calls 1. If the equipment is not connected correctly to an ISDN socket, it cannot make or receive any calls.
Page 138: Xii.2.2 Unit Cannot Receive Incoming Calls
XII.3 IP communication problems XII.3.1 Prodys Codec’s Web Page cannot be accessed 1. The cable or the connector are faulty. There are some leds on the rear panel to check the Ethernet link:...
Page 139 2. The IP address of Prodys Codec and the PC from which we are trying to access the web page are not in the same subnet, even although they are connected to the same LAN. The default factory settings for the IP...
Page 140 Go to Internet Options in IExplorer, click on ‘Security’ tab, and set ‘prompt’ when downloading ActiveX signed and unsigned controls at Local and Internet zones. PortaNet User Manual 140 of 156...
Page 141: Xii.3.2 When Connecting Two Audiocodecs In Unicast, There Is No Audio At One End
When connecting two audiocodecs in unicast, there is no audio at one end. Please check the enabling of the full TCP port range (“Base port” + following 30 ports) of any router or firewall between the audiocodecs. Hint: start checking from the disturbed audiocodec on. PortaNet User Manual 141 of 156...
Page 142: Xii.3.3 No Audio When Connecting Two Audiocodecs Using Multicast
1. A decisive factor in real time audio streaming is the ‘jitter’, or delay variation. To deal with the jitter in the connection, PRODYS provides a tool which allows the user to modify the size of the reception buffer, and so, to compensate for the jitter.
Page 143 2. The audio interruptions could be due to a reduction on the bandwidth in the IP connection. With the ‘Test Streaming’ tool from the web page, the user can measure the download and upload bandwidth between two Prodys IP Codecs. Once the user knows the available bandwidth, it is possible to select the proper bit rate for the compression mode.
Page 144 3. Lost and/or disordered packets might be the cause of audio interruptions. To obtain information about these parameters in real time, the Real Time Network Analyzers can be used. For more information about this, please refer to chapter IX.6.7 – Proprietary protocols v2. PortaNet User Manual 144 of 156...
Page 145: Technical Specifications
LINE level outputs: • XLR male connector (REC output) and 6.3mm Jack stereo connector (AUX output). • Bandwidth 20Hz-20kHz (0.3dB). • Maximum output level: +20dBu. • THD+N < 0.005% @ 1kHz. • SNR < 100 dB. PortaNet User Manual 145 of 156...
Page 146: Audio Compression
JStereo /Dual MPEG 1,2 LAYER III (ISO/IEC 11172-3 /13818-3) Fs=48KHz Fs = 32 KHz Fs=24 KHz Rate Mono Stereo/Dual JStereo Mono Stereo/Dual JStereo Mono Stereo/Dual JStereo 15,2 11,3 18,2 18,2 18,2 11,3 11,3 11,3 PortaNet User Manual 146 of 156...
Page 147 Fs=24 KHz Rate Mono Stereo/Dual JStereo Mono Stereo/Dual JStereo Mono Stereo/Dual JStereo 10,6 11,8 11,3 18,4 10,6 13,6 11,3 11,3 11,3 18,4 10,6 13,6 11,3 11,3 11,3 18,4 18,4 11,3 11,3 11,3 18,4 18,4 PortaNet User Manual 147 of 156...
Page 148 Rate ST/Dual ST/Dual ST/Dual aptX ENH 20 bits Fs=48KHz Fs = 32 KHz Rate ST/Dual ST/Dual aptX ENH 24 bits Fs=48KHz Fs = 32 KHz Rate ST/Dual ST/Dual G722 Fs=16KHz Rate G711 Fs=8KHz Rate PortaNet User Manual 148 of 156...
Page 149: Ip Protocols And Compatibility
-Max. current: 2A. RS232 port Sub-D 9 ways Female connector. Power supply. Universal Input Range. AC input range: 100-240 V. Frequency range: 50-60 Hz. Output Power: 30W (with battery in charge status). Optional battery. PortaNet User Manual 149 of 156...
Page 150: Weight And Dimensions
Weight and dimensions Height: 70 mm; Width: 285 mm.; Depth: 243 mm. Weight: 2 Kg. PortaNet User Manual 150 of 156...
Page 151: Connectors
Connectors XIV.1 Audio inputs XIV.2 Headphone outputs XIV.3 Aux output XIV.4 Rec output MALE XLR PortaNet User Manual 151 of 156...
Page 152: Xiv.5 Lan Port
PC. In this case the PC must have a free Ethernet port to connect to and you must use a ‘cross-over’ Ethernet cable. Again, any good IT shop will stock these cables. This time the wiring is as follows: PortaNet User Manual 152 of 156...
Page 153: Xiv.6 Rs 232 Port
XIV.6 RS 232 port The PortaNet acts as a DCE device, therefore the connection to each of the RS232 ports is wired in the following way: PortaNet – Pin 2......Pin 2 PC PortaNet – Pin 3......Pin 3 PC PortaNet – Pin 5......Pin 5 PC The PortaNet ignores hardware handshaking signals.
Page 154: Updating The Firmware
From version 5.2.1 on and using HeraFlashPlus version 2.5.0 or higher, the upgrading can be performed over WAN networks, such as Internet. From version 5.4.1 onwards, all Prodys IP codecs will share the same firmware file, making it more easier to upgrade several different units to the latest firmware version.
Page 155 Press next to start the update process. You will see a warning message telling you that all the contents of the Flash will be erased and that you must back-up this data BEFORE updating the device. By clicking on next, the upgrading process will start. PortaNet User Manual 155 of 156...
Page 156 If everything has gone correctly, at the end of the recording, you will be shown the following message: PortaNet User Manual 156 of 156 interstage Phistersvej 31, 2900 Hellerup, Danmark Telefon 3946 0000, fax 3946 0040 www.interstage.dk...
