V.4 'AUX' output.

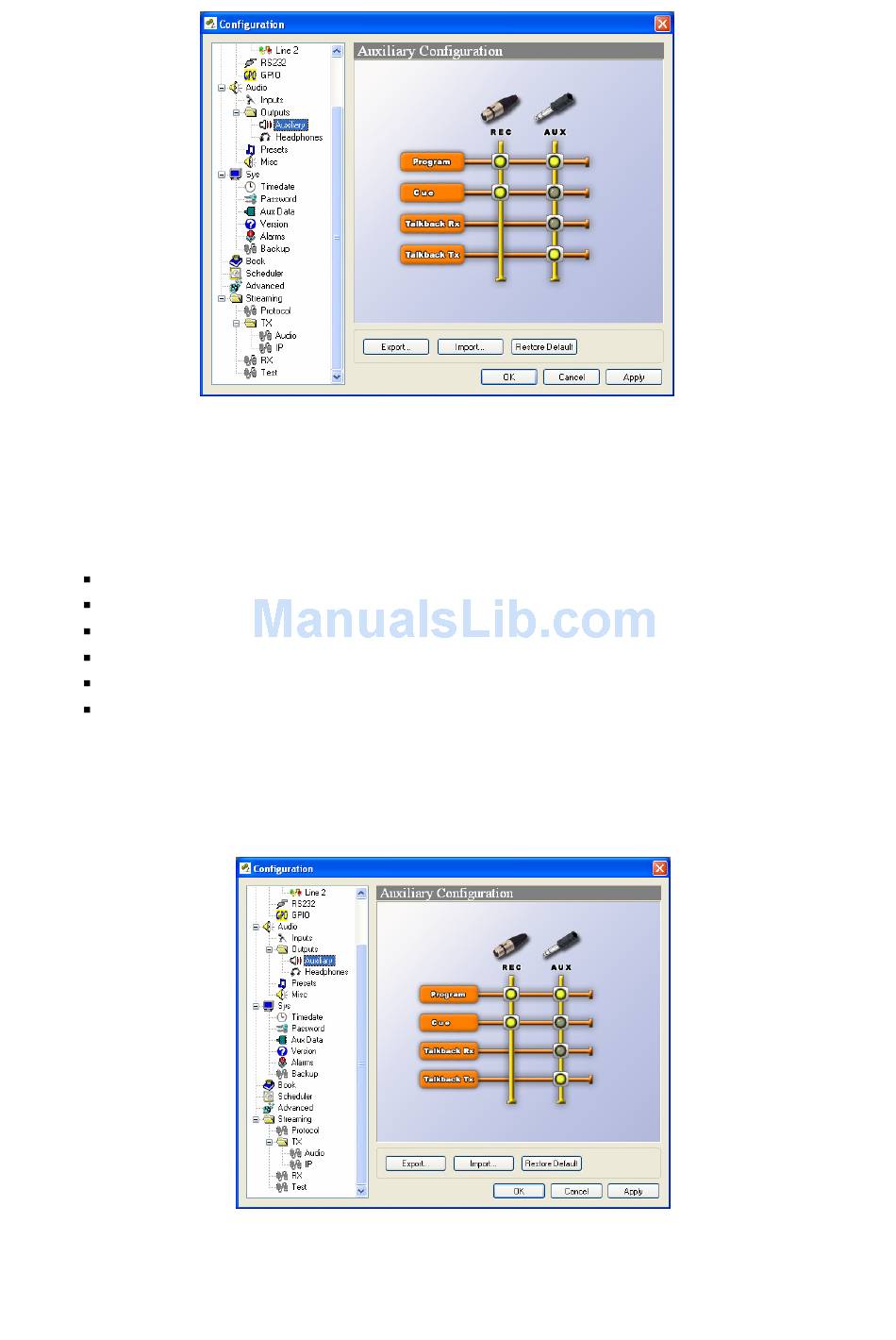

This output supports many different configurations depending on the selected
audio sources in the auxiliary output configuration matrix of the web browser:
V.4.1

Technical specifications

6mm (1/4") jack connector at the front panel.
Bandwidth 20Hz-20kHz (0.3dB).
Maximum output level: +20dBu.
THD+N < 0.005% @ 1kHz.
SNR < 100 dB.
Output impedance < 50 ohms.
V.4.2

Operation modes

Depending on which signals are selected from the auxiliary output configuration,
the AUX output supports different configurations.
PortaNet User Manual 27 of 156
