The audio signals on these outputs can be both the audio received and the audio
contribution to either line.
X.4.1

Headphone outputs

There are three headphone outputs, each one related to the corresponding
MIC/LINE input. That means:
This relationship means that the audio signals present on any headphone output
will depend on the status of its corresponding input. In other words, it will
depend on whether the input is connected to line 1 or line 2.
The audio sources for each headphone can be selected from the PortaNet
web browser. At the same time, it is possible to define whether some of
them will be attenuated depending on which line (program or talkback) its
corresponding input t is connected.
The audio sources that can be selected are: Program, Cue, Talkback Tx,
Talkback Rx and International Sound.
Program, Cue and International Sound can be selected in either
headphone ear independently.

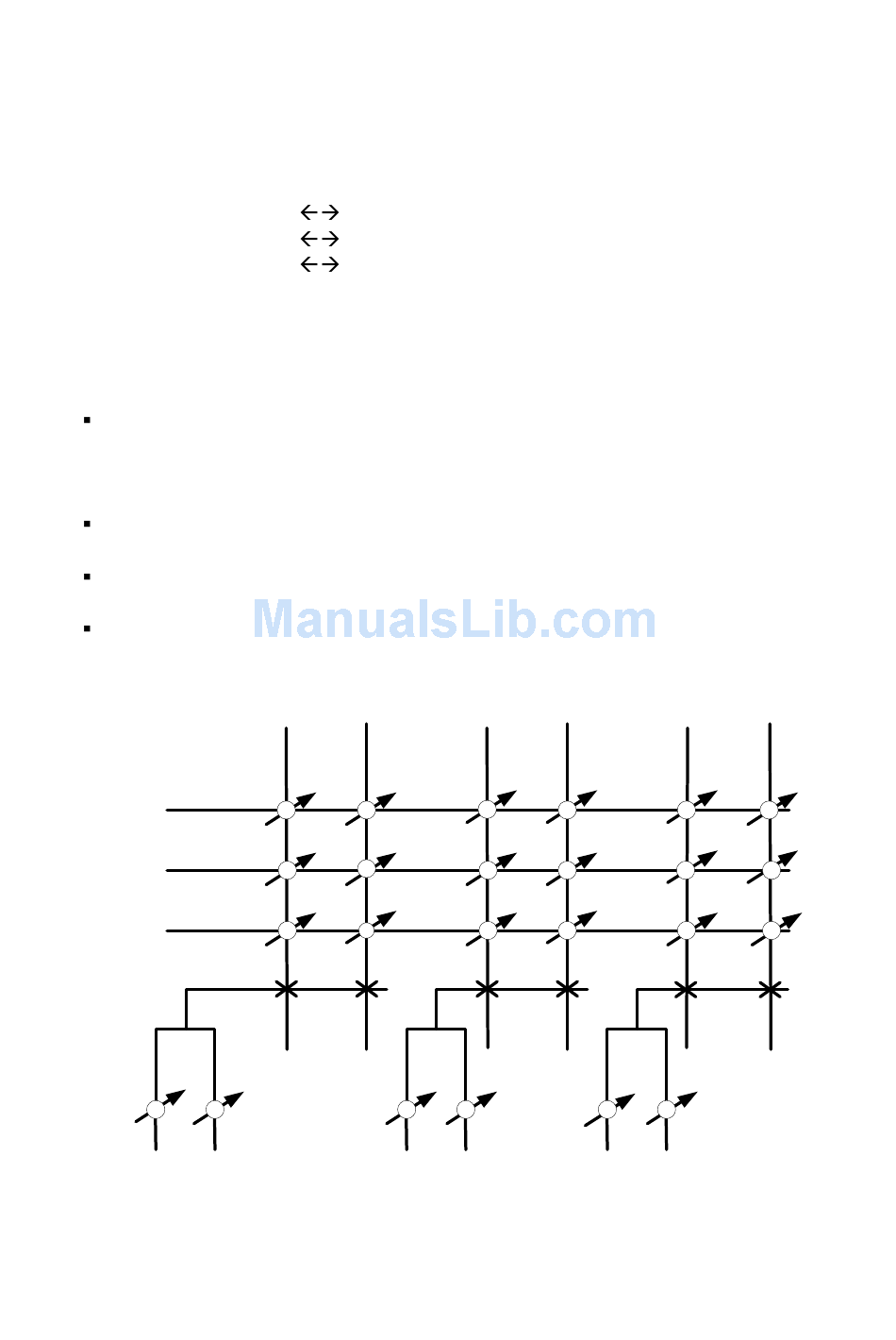

The following diagram shows how the headphone outputs can be
configured:
Program
Cue
Int. Sound
Tb Tx Tb Rx
PortaNet User Manual
HP 1 MIC/LIN 1
HP 2 MIC/LIN 2
HP 3 MIC/LIN 3
HP1L HP1R
Tb Tx
HP2L HP2R
Tb Tx
Tb Rx
HP3L HP3R
Tb Rx
