DSP SIS
Commands

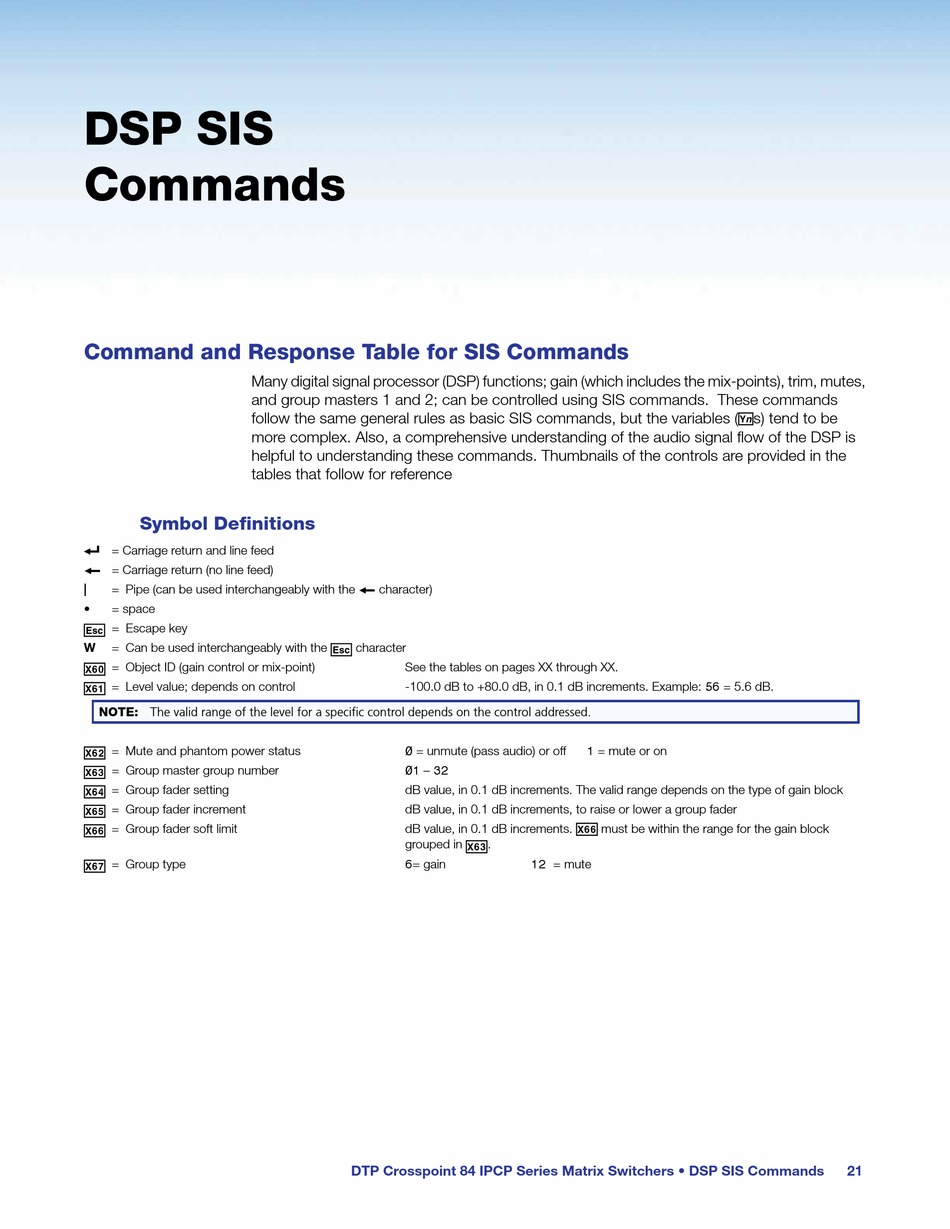

Command and Response Table for SIS Commands

Many digital signal processor (DSP) functions; gain (which includes the mix-points), trim, mutes,
and group masters 1 and 2; can be controlled using SIS commands. These commands
follow the same general rules as basic SIS commands, but the variables ( Y/ s) tend to be
more complex. Also, a comprehensive understanding of the audio signal flow of the DSP is
helpful to understanding these commands. Thumbnails of the controls are provided in the
tables that follow for reference
Symbol Definitions
]
= Carriage return and line feed
}
= Carriage return (no line feed)
| = Pipe (can be used interchangeably with the
• = space
E
= Escape key
W = Can be used interchangeably with the
X6)
= Object ID (gain control or mix-point)
X6!
= Level value; depends on control
NOTE: The valid range of the level for a specific control depends on the control addressed.
X6@
= Mute and phantom power status
X6#
= Group master group number
X6$
= Group fader setting
X6%
= Group fader increment
X6^
= Group fader soft limit
X6&
= Group type
}
character)
E
character
See the tables on pages XX through XX.
-100.0 dB to +80.0 dB, in 0.1 dB increments. Example: 56 = 5.6 dB.
0 = unmute (pass audio) or off
01 – 32
dB value, in 0.1 dB increments. The valid range depends on the type of gain block
dB value, in 0.1 dB increments, to raise or lower a group fader
dB value, in 0.1 dB increments.
X6#
grouped in .
6= gain
DTP Crosspoint 84 IPCP Series Matrix Switchers • DSP SIS Commands
1 = mute or on
X6^
must be within the range for the gain block
12 = mute
