Extron electronics DTP CrossPoint 84 IPCP Programming Manual page 28

Output 1 Trim
Left
60100
Right
60101
Output 2 Trim
Left 60102
Right 60103
Output 3 Trim
Left
60104
Right
60105
Output 4 Trim
Left
60106
Right
60107
* Not used on MA (mono amplifier) model.

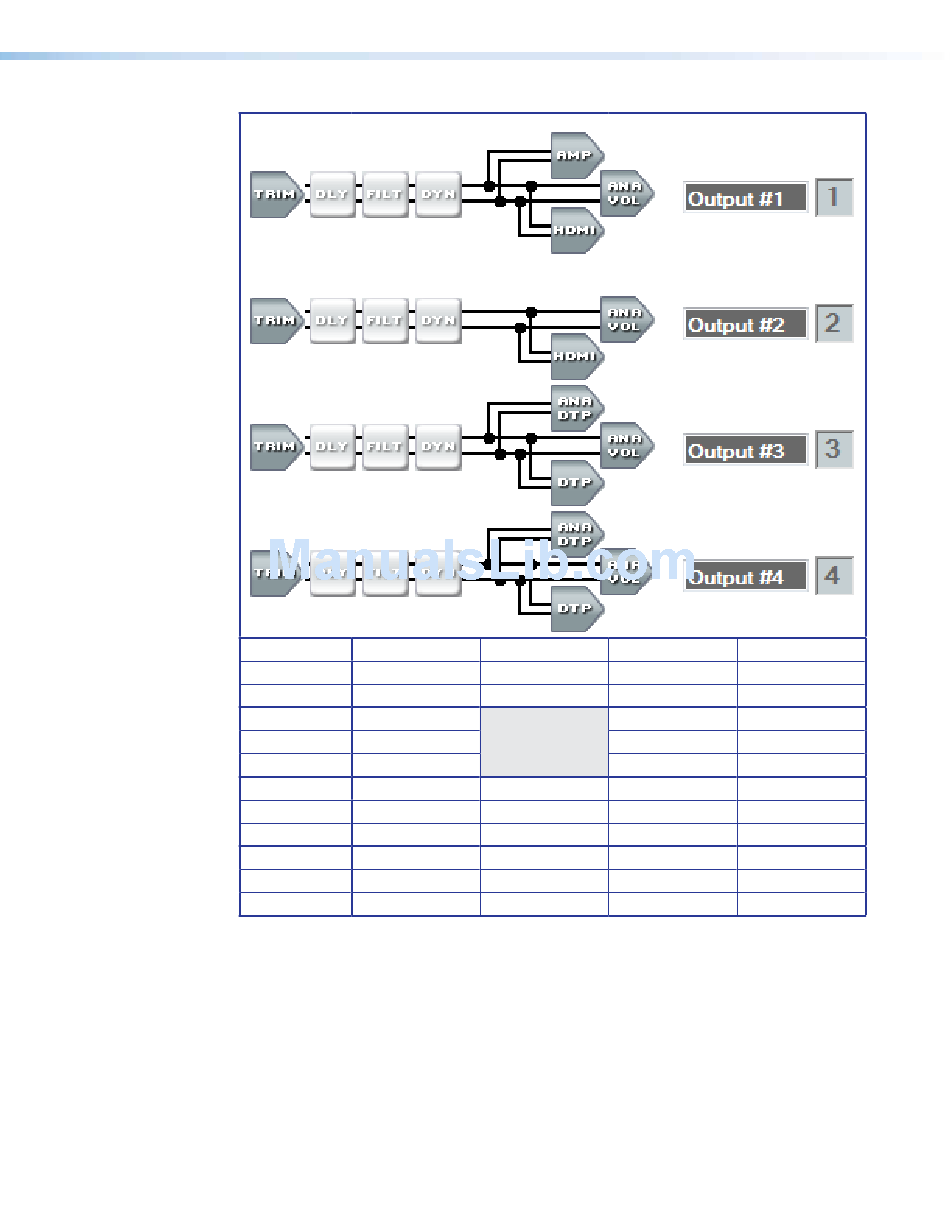

DTP Crosspoint 84 IPCP Series Matrix Switchers • DSP SIS Commands
Line Output Gain Blocks
Amp Output Analog Volume
60300
60301*
Analog Volume
Analog DTP Analog Volume
60304
60305
Analog DTP Analog Volume
60306
60307
HDMI Volume
60000 60200
60001 60201
HDMI Volume
60002 60202
60003 60203
Digital DTP
60004 60204
60005 60205
Digital DTP
60006 60206
60007 60207
26
