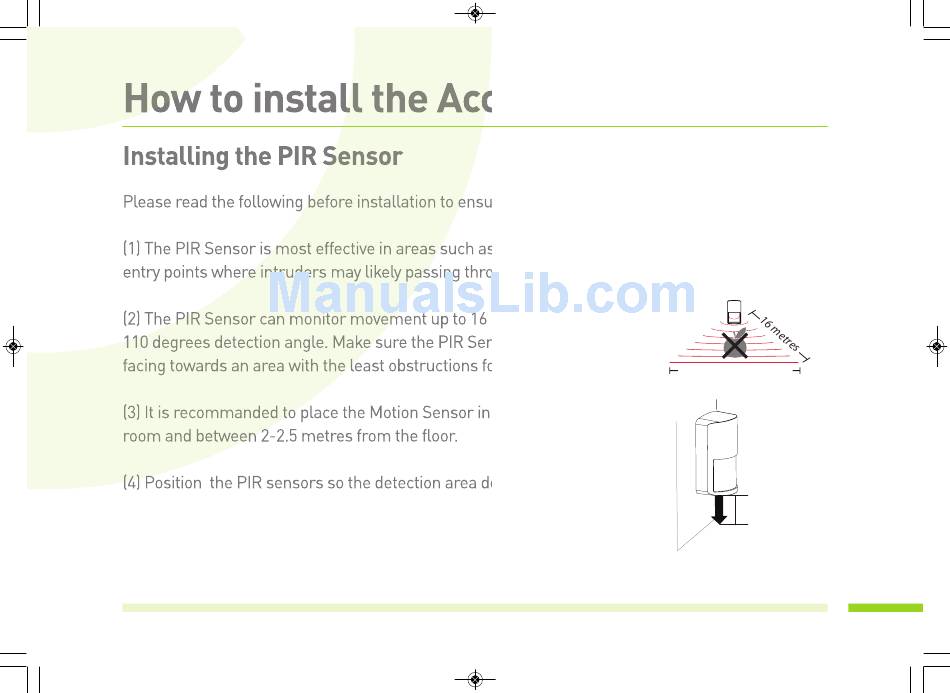

How to install the Accessories

Installing the PIR Sensor

Please read the following before installation to ensure maximum coverage of a monitored area.
(1) The PIR Sensor is most effective in areas such as hallways and
entry points where intruders may likely passing through.
(2) The PIR Sensor can monitor movement up to 16 metres away, with
110 degrees detection angle. Make sure the PIR Sensor is angled
facing towards an area with the least obstructions for best coverage.
110 degrees detection angle
(3) It is recommanded to place the Motion Sensor in the corner of the
room and between 2-2.5 metres from the floor.
(4) Position the PIR sensors so the detection area doesn't point
directly at a window, lamp or heat source which could cause an alarm
2 - 2.5 metres
activation.
Use the double-sided tape to fix the motion sensor, or use the wall
mount screws to fix the device or supplied bracket onto the wall.
