3.6.2 - CUSTOMISING THE ONE - ONE/E MODULE

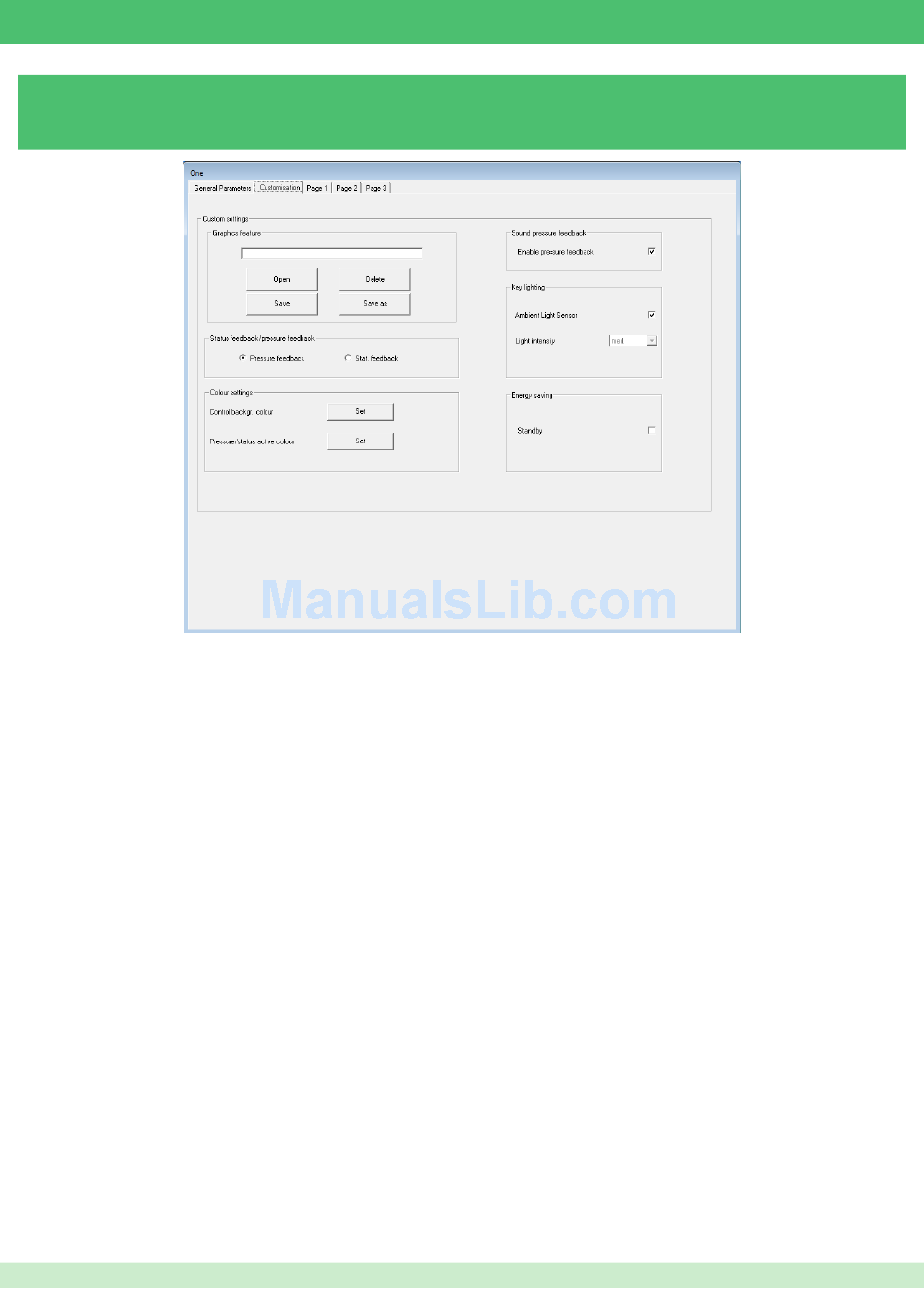

CUSTOM SETTINGS
this menu can be used to load / delete a previously saved graphics view, save a new one or save any changes
GRAPHICS VIEW:
made to the one that is currently open.
By graphics view we mean the button layout on the various One device screens and the colours associated with them. The
Command Confi gurations box settings will not be saved. This function can be used, for example, when you intend to install
several ONE modules in a system and replicate the same graphics confi gurations such as LED provision and colour settings.
Pressure feedback is selected, the light for the button will change colour to indicate
STATUS FEEDBACK / PRESSURE FEEDBACK: if
that it has been pressed, and will then return to its original state. If Status feedback is selected, the button will change colour
according to its current status (active or inactive).
COLOUR SETTINGS: this menu can be used to set all module buttons to the same colour in a single action. This function takes priority over the settings
performed manually on each individual LED.
SOUND PRESSURE FEEDBACK: if this option is activated, the module will emit a sound every time a button is pressed or the active screen changes.
KEY BRIGHTNESS: if the Ambient light sensor function i activated, the key brightness will be adjusted automatically in accordance with the level of light
in the environment. The Light intensity menu can be used to manually select the intensity of the keys from 3 options (high, medium, low).
ENERGY SAVING: if the Standby function is activated, the ONE control device will switch off key lighting after 5 seconds of inactivity, in order to save
energy.
99
