2.21 - MINITOUCH MONITOR ART. 20034607

3.5" MiniTouch with supervisor function. To be connected to the SimpleHome BUS for automation system management, controlling lights,
loads, shutters, climate, scenarios or irrigation, and to the SimpleSafe System for anti-intrusion system viewing and control.
Colour
Magic Light
Display
Viewing angle (right / left / high / low)
Micro SD card slot
Power supply
Current absorption
Size (HxWxD)
O.C. outputs
Relay output
Operating temperature
Weight
On-board thermostat
On-board RFID reader
Mounting of box 503 - 503E or similar
Ethernet port

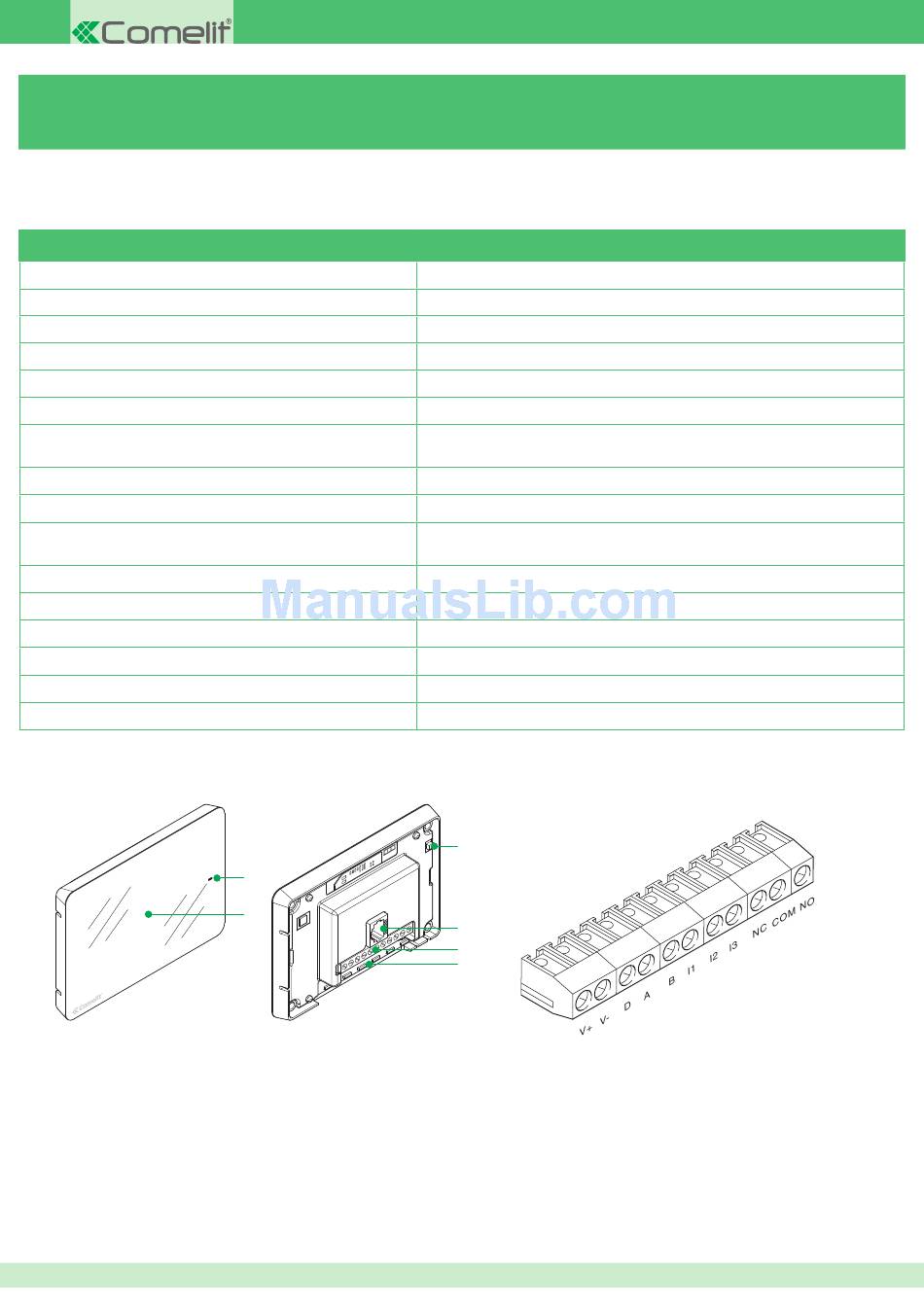

1 RFID reader.
2 3.5" touch screen.
3 Tamper.
4 Ethernet connector (for future use).
5 Terminal block for connection.
6 Magic light.
44
Technical characteristics
1
2
Black
RGB LED illumination
3.5" (7 cm) colour touch screen with 320x240 pixel resolution
50° / 50° / 45° / 50°
YES (for future uses)
• 13.8 Vdc / 25 Vdc
355 mA @ 13.8 Vdc
175 mA @ 25 Vdc
85 x 123 x 28.6 mm
YES (500 mA MAX.)
• 30 Vdc / 5 A
• 250 Vac / 10 A
-15° / +55°C
150 g
YES
YES
YES
YES (for future uses)
3
4
5
6
V+ V-: Power supply terminals
D: SimpleHome bus data terminal
A B: 485 terminals for alarm control panel
NC COM NO: Thermostat relay voltage-free contacts
I1 I2 I3: Open Collector outputs for multi-speed Fan-coil
connection.
