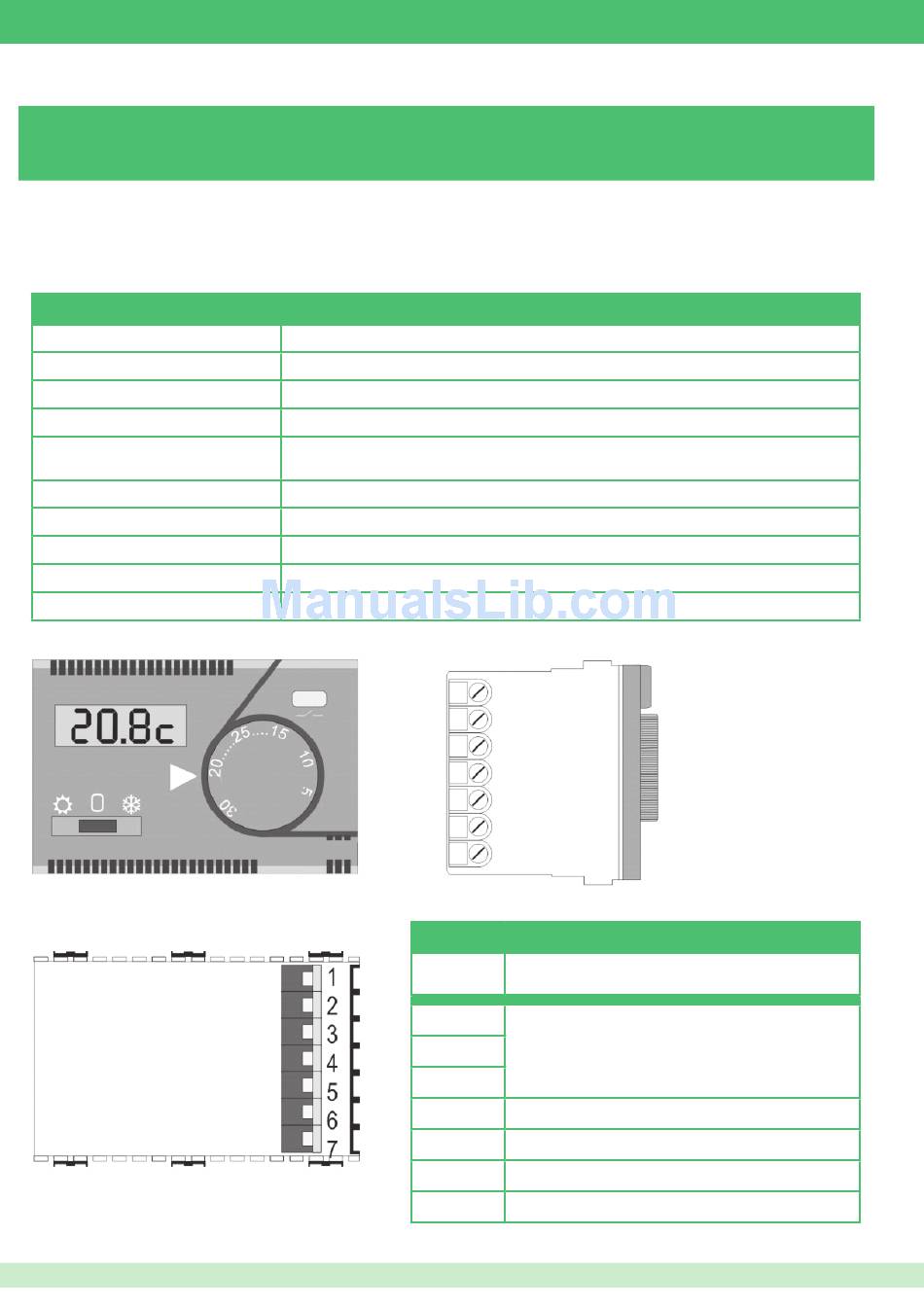

2.7 - ART. 20046709 - SIMPLEHOME FLUSH-MOUNTED LCD THERMOSTAT MODULE

Room thermostat with LCD display, offering the option of connection to the SimpleHome system for supervisor control. It allows temperature
adjustment between 5 and 30°C by means of a knob, and the temperature can be viewed via the LCD display. The device sends a data package
containing the measured temperature value over the bus at regular intervals and, immediately afterwards, measures the room temperature. Then,
depending on the setpoint values, it updates the local relay and sends a remote output activation or deactivation command over the bus.
Power supply voltage
Absorption
Sensor range
Positioning
Applicable standards
Approvals
Operating temperature
Storage temperature
Relative air humidity
Dimensions
Technical characteristics
24 Vdc ± 5%
min. 5.5 mA, max. 20 mA
+5°C to +30°C
In fl ush-mounted boxes compatible with the most common civil series
electromagnetic compatibility: EN 50081-1 (interference emission)
and EN50082-2 (resistance to interference)
CE
0° to 50°C
-10° to +70°C
5 to 95% with no condensation
3 fl ush-mounted modules from the most common civil series
Term.
1
2
3
4
5
6
7
TEMPERATURE MODULE
Function
Local relay intended for controlling a local pump/valve (NC-
C-NO)
Temperature reduction (active if closed at negative)
BUS data line
+24 Vdc power supply
Power supply negative
