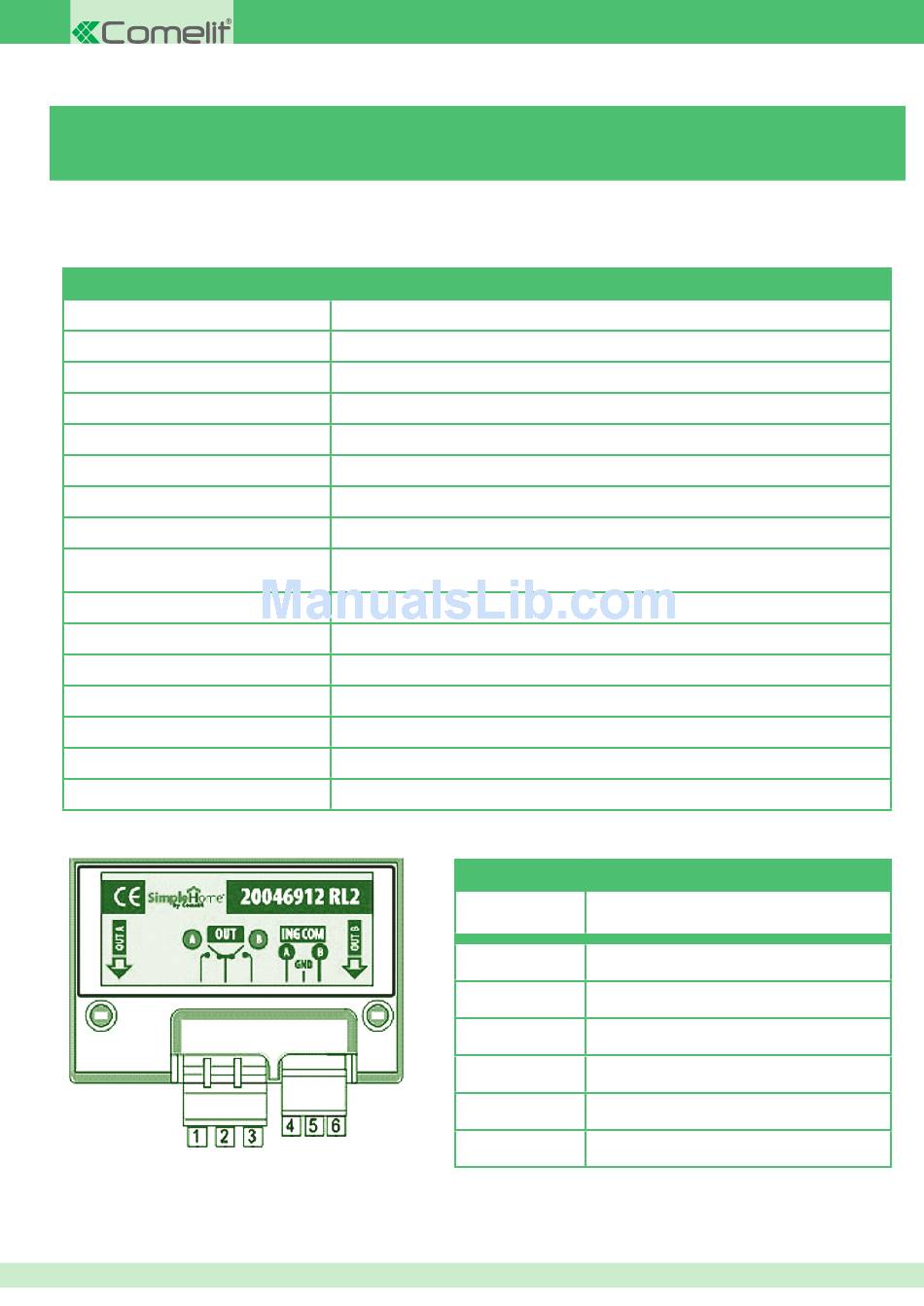

2.4 - ART. 20046912 – SIMPLEHOME FLUSH-MOUNTED INTERFACE MODULE WITH 2 RELAYS (RL2)
Interface with two 6A resistive relays (cosϕ=1) for connection to bus modules with open-collector outputs, for example those controlling a rolling
shutter motor. The outputs on the device are not suitable for controlling particularly heavy loads or halogen and fl uorescent lamps. When controlling
these load types, a support relay must be used at each output.
Power supply voltage
Absorption
Inputs
Outputs
Protection
Indications
Terminals
Positioning
Applicable standards
Approvals
Operating temperature
Storage temperature
Relative air humidity
Accessories included
Weight
Dimensions
14
Technical characteristics
24 Vdc ± 5%
18 mA
2 for interfacing with two open collector outputs for input/output modules on bus
2 relay 230 Vac, resistive 6A (cos ϕ = 1)
against reverse polarity
2 output status indicator LEDs
removable
in fl ush-mounted boxes
electromagnetic compatibility: EN 50081-1 (interference emission)
and EN50082-2 (resistance to interference)
CE
0° to 50°C
-10° to +70°C
5 to 95% with no condensation
CT current transformer
42 g (not including packaging)
41x29x9 mm
Term.
CONNECTION TERMINALS
1 Relay output 6A
2 Common
3 Relay output 6A
4 Relay control + 24 Vdc
5 Relay control common
6 Relay control + 24 Vdc
Function
