3.5.9 - MANAGING SYSTEM MODULES

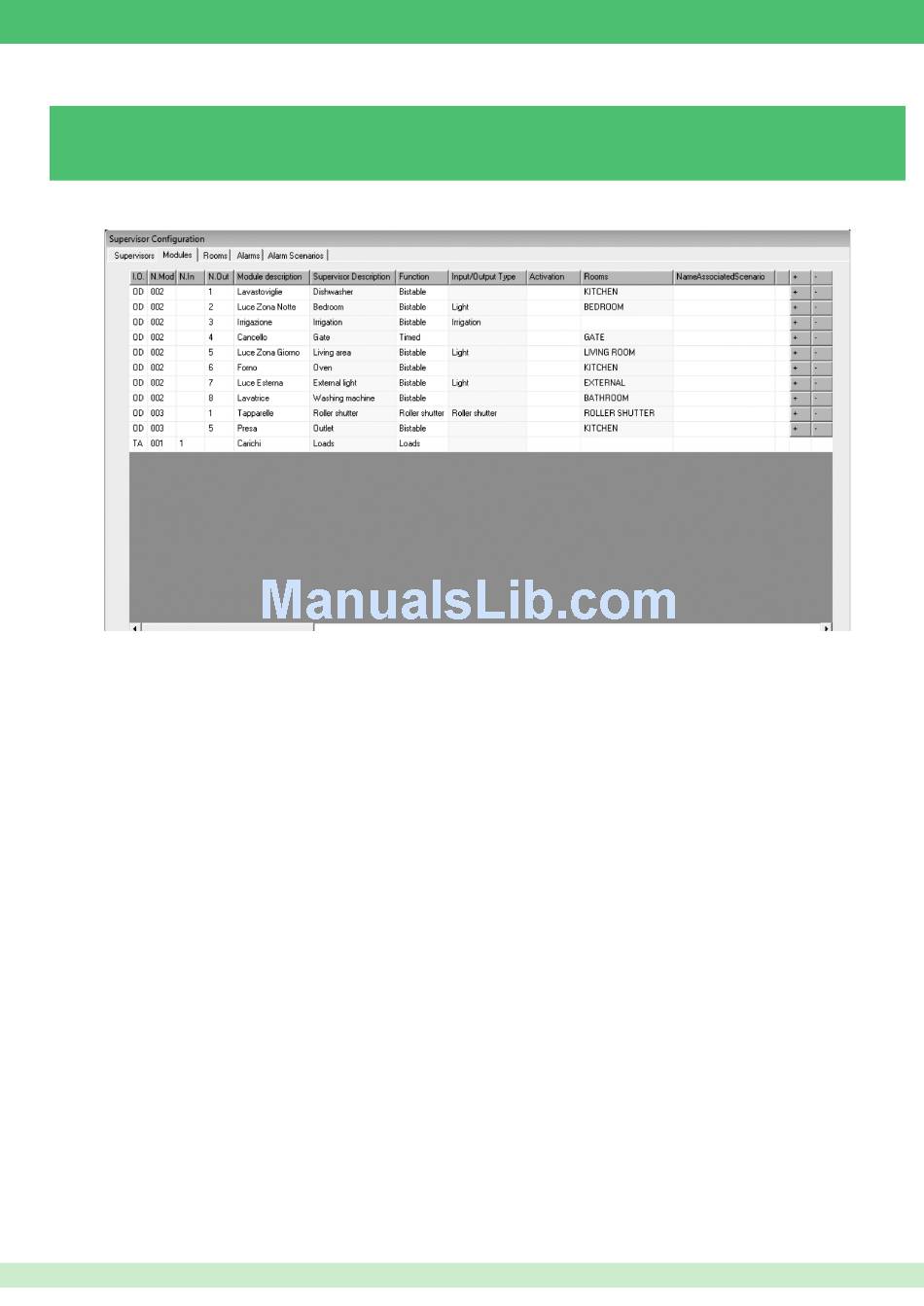

All installed modules are managed on the "Modules" tab.
The editable cells on this screen will be highlighted in yellow.
N.Mod
This column indicates the number assigned to the module within the system.
N.In
This column indicates the number of the input used on the module.
N.Out
This column indicates the number of the output used on the module.
Module description
The description on the module is provided in this column.
Supervisor Description
This column determines the text displayed on the Planux Manager / Minitouch monitor for each module output.
Input/Output Type
Set the usage type for the corresponding module, in the case of load and consumption control module 20046821:
CT if the module only needs to manage load disconnection;
CT+Meter if the module, besides load management, needs to display the consumption or module production data on the
supervisor;
Meter if the module does not control or disconnect the loads but simply generates the graphics used to display consumption data.
Consumption/Production
Set if the selected input records a production (for example a photovoltaic system for energy production) or consumption value.
Cost
Set a tariff per unit of measurement set in the "unit of measurement" fi eld. In the case of a load and consumption module, the cost
per kWh should be entered as the tariff. SimpleProg only has one tariff, while different tariffs can be set on the supervisor according
to time bands and days of the week.
