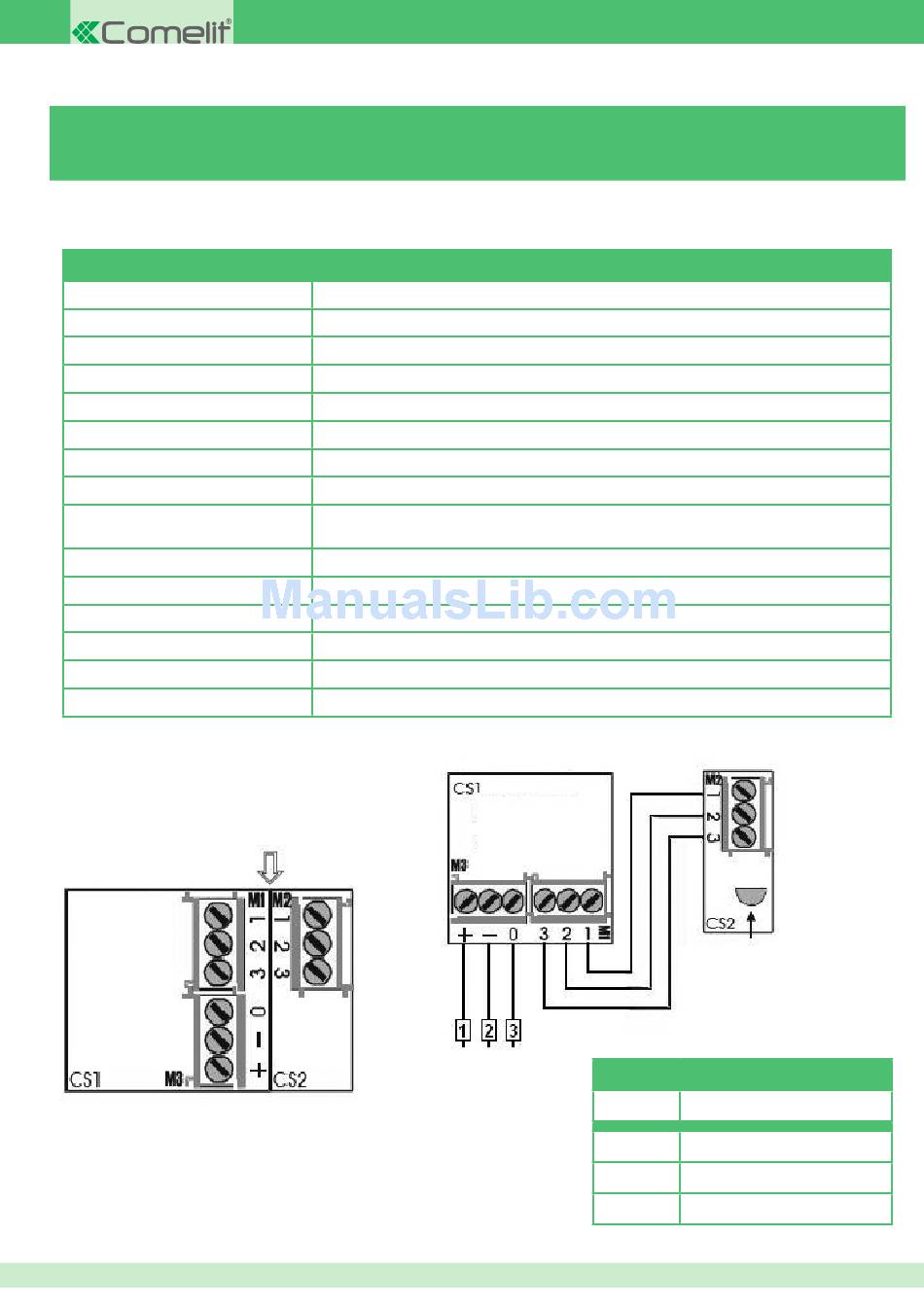

2.6 - ART. 20046708 - SIMPLEHOME TEMPERATURE SENSOR MODULE
WITH 0-10 V OUTPUT, FLUSH-MOUNTED (TEMP)
Temperature sensor with standard 0-10 V output for connection to the fl ush-mounted module with 2 x 0-10 V analogue inputs (20046707).
The dimensions are designed so that the product can be fi tted in the most common civil series, for example inside a button blank.
Power supply voltage
Output voltage
Absorption
Sensor range
8-bit reading resolution
9-bit reading resolution
10-bit reading resolution
Positioning
Applicable standards
Approvals
Operating temperature
Storage temperature
Relative air humidity
Weight
Dimensions
TO PREVENT THERMAL INFLUENCE OF
THE COMPONENTS ON THE ELECTRONICS
CARD, KEEP THE MEASURING ELEMENT
SEPARATE, IN LINE WITH THE "PRE-CUT"
PART
VIEW FROM TOP
Specifi cations are subject to change without notice.
18
Technical characteristics
24 Vdc ± 5%
0-10 Vdc
5 mA
-20°C to +45°C
1.00°C
0.50°C
0.25°C
in fl ush-mounted boxes
electromagnetic compatibility: EN 50081-1 (interference emission)
and EN50082-2 (resistance to interference)
CE
0° to 50°C
-10° to +70°C
5 to 95% with no condensation
10 g (not including packaging)
19x32x11 mm
TEMPERATURE
SENSOR
20046708
TEMPERATURE
MEASURING
SENSOR
CONNECTION TERMINALS
Term. Function
1 +24 Vdc power supply
2 Power supply negative
3 0-10 Vdc output
