This window is used for SIMPLEHOME system programming:
To create the fi rst confi guration for the system, proceed as follows:
1) After fi tting the bus line and connecting the SIMPLEHOME/RS232 interface to the bus on one side and to the PC on the other, remove the bus
terminals from all the modules so that when programming begins none of the modules are connected, apart from the power supply units;
2) write the "serial number" on the label of each module in the range: this address must always be something other than the number 1 (the fi rst time
they are powered up, all modules have the number 1 as their serial number) and different for each device;

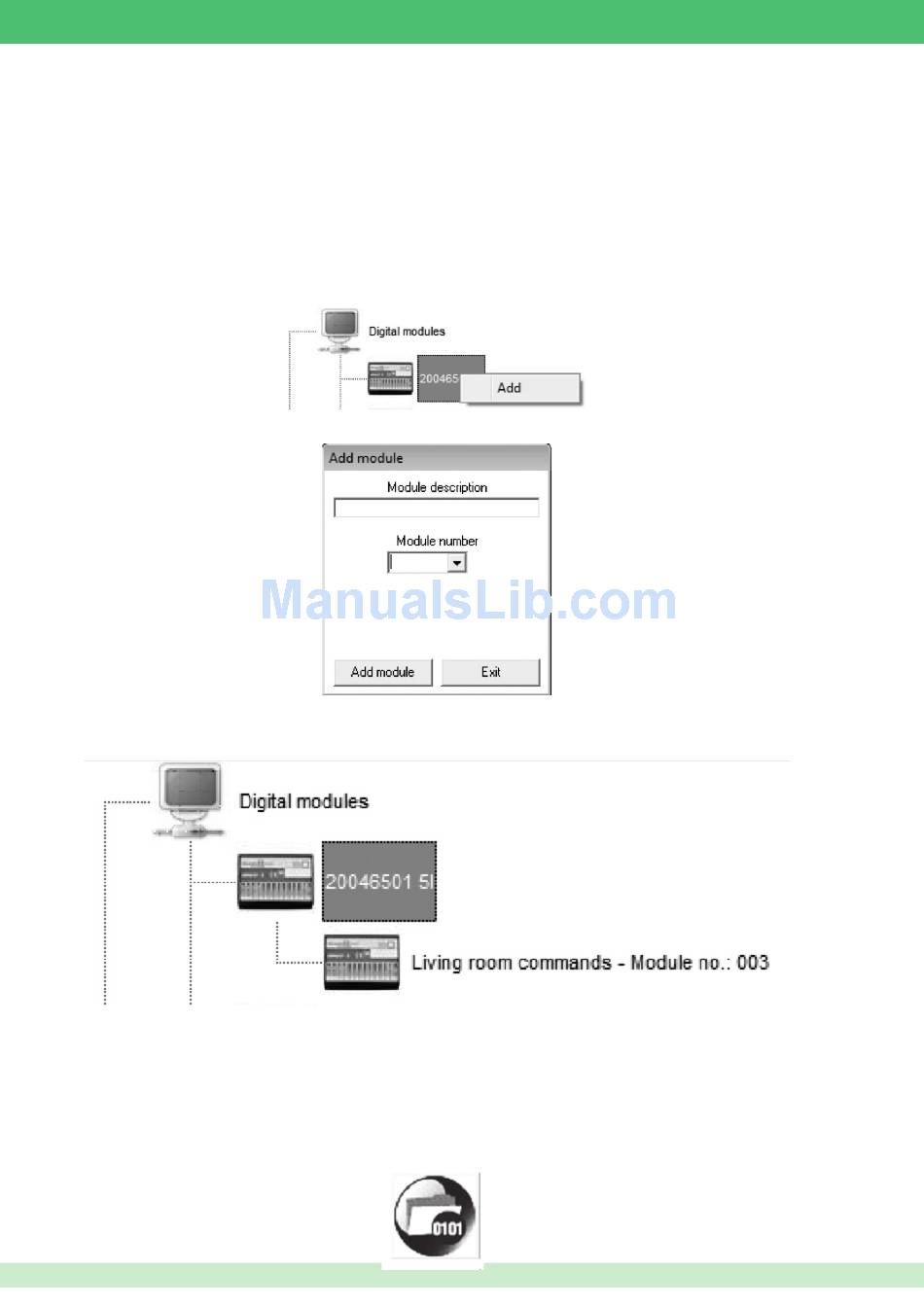

3) make a note of the module you wish to program and then add it to the "tree menu" screen as follows: identify the device type (e.g. digital or
analogue, number of inputs and outputs) and move the mouse pointer to the corresponding item, then right-click on "Add module" (in the example
below, the fl ush-mounted digital module with 5 inputs will be added):
4) when the following window appears, enter the desired serial number (in this case) in the "Module number" box and write a short description of it;
then confi rm by clicking the "Add" button:
N.B. any module added can always be deleted simply by hovering over it with the mouse pointer and right-clicking on the command "Delete
module".
5) at this point the screen will be updated to show the new device and its serial number will be listed alongside the description:
6) physically connect the device to the bus via the removable terminal and then click the "SERIAL NUMBER PROGRAMMING" button in the top
left-hand corner of the "tree menu" screen;
