Comelit simplehome Technical Manual page 103

TYPE OF MESSAGE
the module sends a command to the addressee, controlling the output for which it was programmed.
NORMAL:
For example, if you send a normal command to a timed output, the output will be activated for the set time; if you send a normal
command to an output set as bistable, the output inverts its status.
the module sends a "forcing ON" command and the output is then activated independently of the programming, remaining
SET:
active until a new command is sent. The SET command does not affect outputs set as "Rolling shutter".
For example, if you want to send an activation command to a group of lights, the SET command type must be set; this switches
on any lights which are off and leaves those already switched on running. If a SET is sent to an output set as timed, the output
is activated and will remain active until a new command is received.
the module sends a "forcing OFF" command and the output is then deactivated independently of the programming,
RESET:
remaining inactive until a new command is sent. If the RESET command is sent to an output programmed as "Rolling shutter",
the relay is not activated and the shutter to which it is connected will not move.
For example, to send a deactivation command to a group of lights, the RESET command type must be set; this switches off any
lights which are on and leaves those already switched off inactive.
the module sends the activation command to the set analogue output, bringing the output to the last value.
ANALOGUE ON:
The module sends the off command to the set analogue output.
ANALOGUE OFF:
can be used to bring the brightness or analogue output to the set value which appears alongside it.
SET ANALOGUE:
this command is used to set the colour of an RGB light as desired, using the fi eld which appears alongside it.
SET RGB:

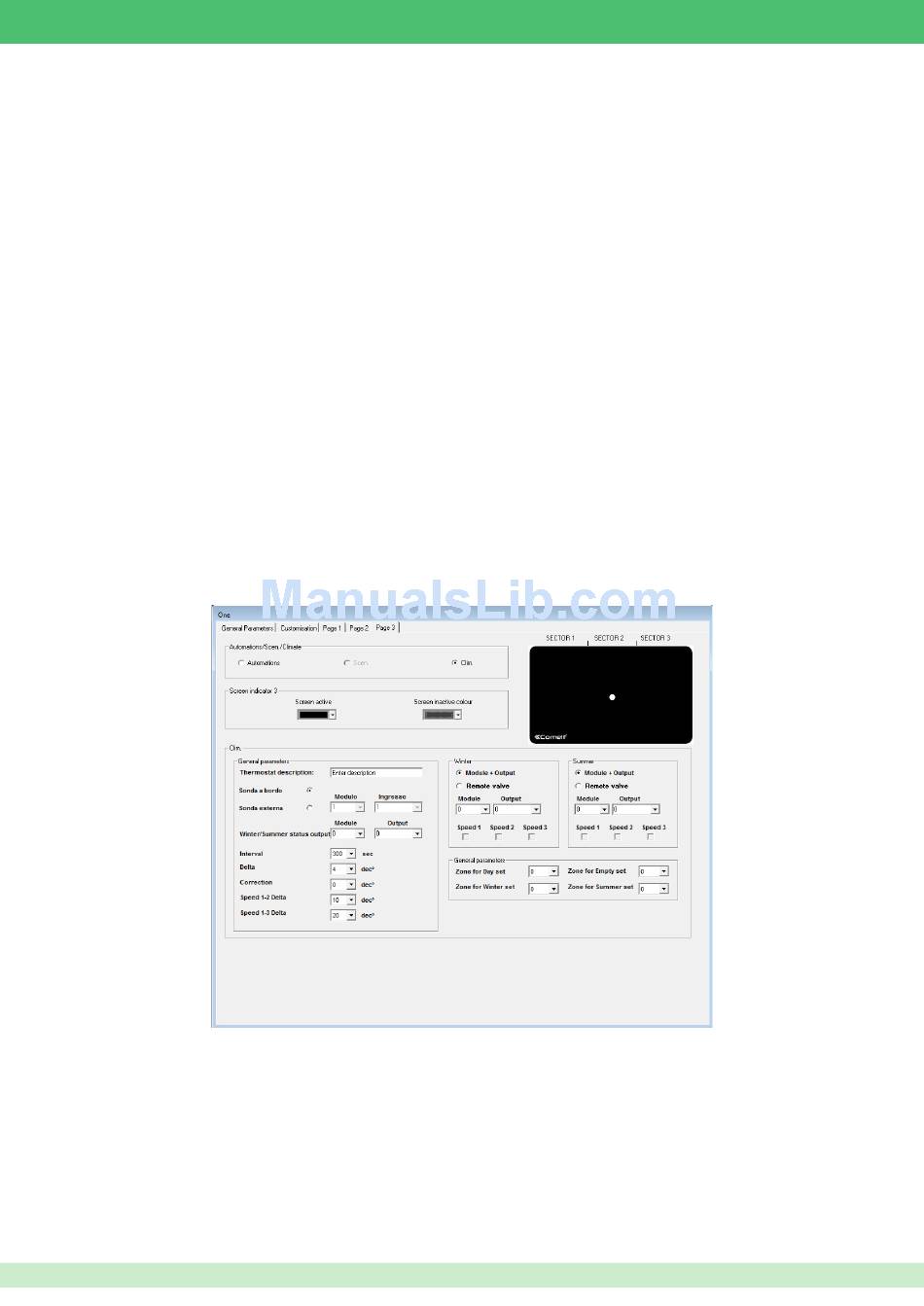

3.6.3.3 - CLIMATE MANAGEMENT
The climate management screen can be used to control the temperature sensor on board the ONE module or an external sensor,
for temperature adjustment up to +3° / -3°C in steps of 0.5°C in relation to the last set point selected, using the thermostat
adjustment screen.
AUTOMATIONS/SCENARIO/CLIMATE:
this menu can be used to customise the colour of the screen indicator (this appears in the top right-hand
SCREEN 3 INDICATOR:
corner of the device), assigning one colour to the screen when it is active and another when the screen is inactive.
Thermostat description: enter a description of the climate zone which appears on the supervisor.
On-board sensor: select this option if you intend to use the temperature sensor on board the ONE module.
External sensor: select this option if you intend to use an external sensor. In this case, you will have to specify the number of the
module and the number of the input to which the sensor is connected (e.g sensor art. 20004100).
select the Climate function in this menu.
103
