2.5 - ART. 20046707 – SIMPLEHOME FLUSH-MOUNTED MODULE WITH 2 x 0-10 V ANALOGUE INPUTS (2I)
Flush-mounted interface for automation system with two 0-10 V analogue inputs.
Allows interfacing between the home automation system and analogue inputs, such as those originating from temperature sensors or voltage/
current transformers.
Power supply voltage
Absorption
Inputs
Max. input cable length
Protection
Indications
Terminals
Positioning
Applicable standards
Approvals
Operating temperature
Storage temperature
Relative air humidity
Weight
Dimensions
green (bus)
N.B. The module must be programmed via the BUS line, using the SimpleHome/RS232 interface (20022611) and the SimpleProg programming
software.
16
Technical characteristics
24 Vdc ± 5%
5 mA
2 analogue, 0-10 V
2 m
against reverse polarity
1 bus status indicator LED: when fl ashing, indicates data transmission via bus, when lit steadily
indicates lack of power supply negative or incorrect device connection
removable for BUS connection
in fl ush-mounted boxes
electromagnetic compatibility: EN 50081-1 (interference emission)
and EN50082-2 (resistance to interference)
CE
0° to 50°C
-10° to +70°C
5 to 95% with no condensation
24 g (not including packaging)
41x29x9 mm
red (+)
blue (-)

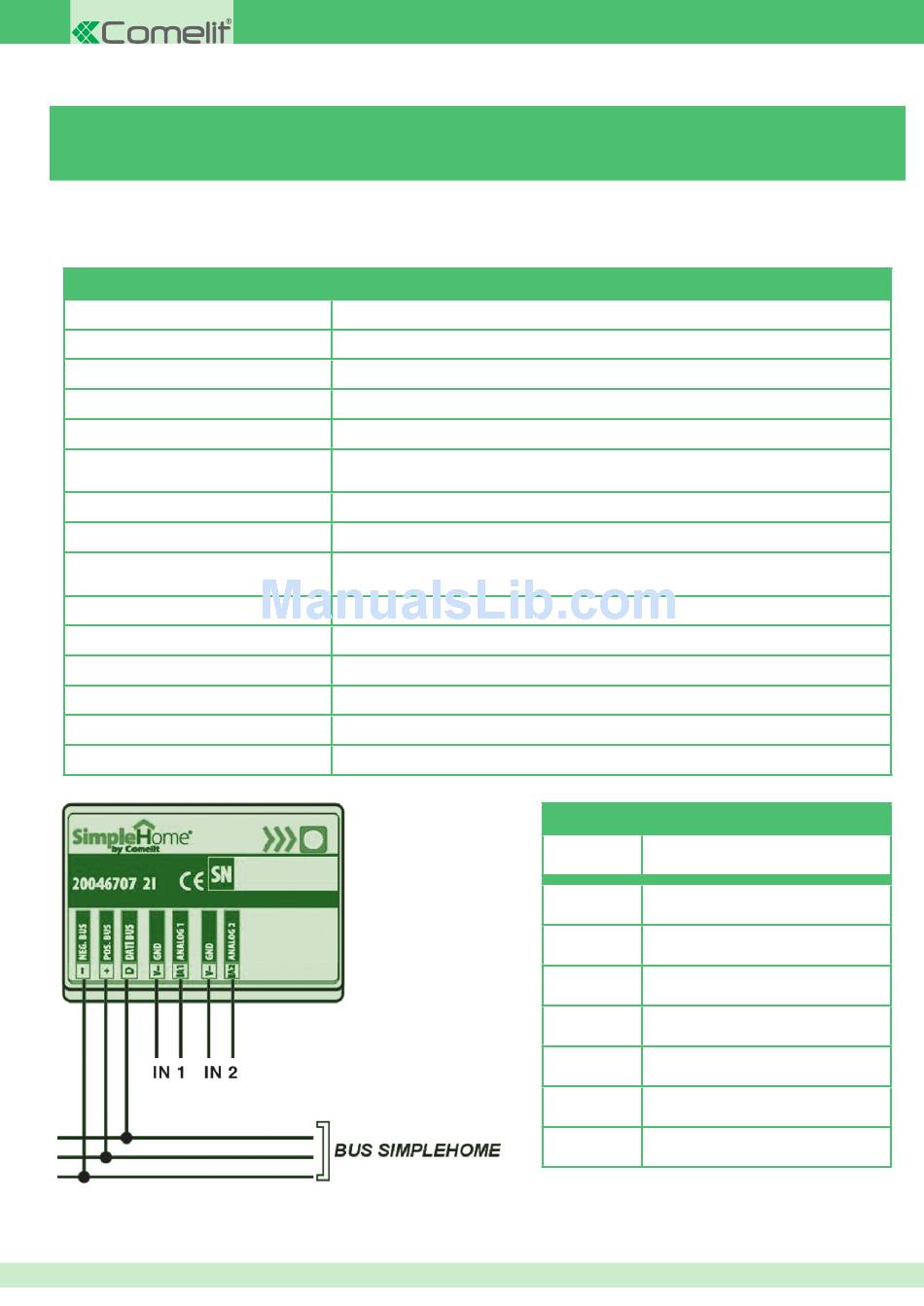

CONNECTION TERMINALS
Term. Function
- BUS power supply negative
+ BUS power supply +24 Vdc
D BUS data line
V- GND
IA1 Input 1 (0-10 V)
V- GND
IA2 Input 2 (0-10 V)
