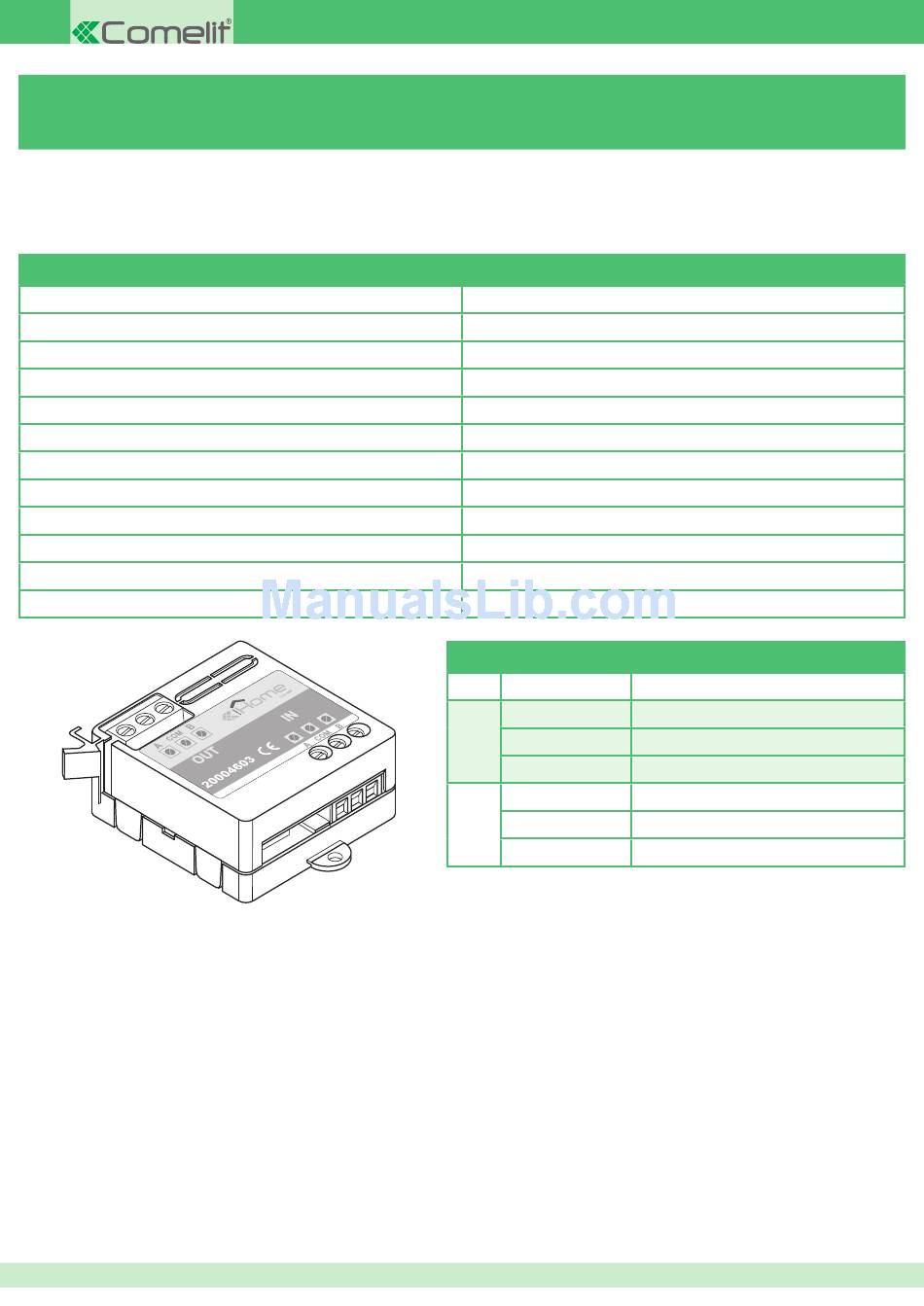

2.17 - ART. 20004603 – MODULE WITH 2 RELAYS
SimpleHome module Art. 20004603 has two 10A relay outputs which are activated from +24 Vdc transistor outputs found, for example, on
modules 20004601 or 20046502.
Module Art. 20004603 allows fl ush mounting in residential series boxes or on DIN rails.
N.B. the module cannot be connected directly to the SimpleHome BUS
Relay activation voltage
Relay activation current
Absorption
Outputs
Indications
Positioning
Approvals
Operating temperature
Storage temperature
Relative air humidity
Weight
Dimensions
38
Technical characteristics
+24 Vdc
14 mA per relay
MAX. 30 mA
• 2 10A N.O. relay outputs (230 Vac), resistive loads
• 2 LEDs (red) indicating relay active
On DIN rail or in fl ush-mounted boxes
CE
0° to 50°C
-10° to +70°C
5 to 95% with no condensation
70 g (not including packaging)
58x53x18 mm (1 DIN module)
IN
OUT
CONNECTION TERMINALS
Terminal
A
COM
B
A
COM
B
Function
Input 1 +24 Vdc
Input common
Input 2 +24 Vdc
Relay output 1
Output common
Relay output 2
