NAT configuration examples

Outbound one-to-one static NAT configuration example

Network requirements
Configure static NAT to allow the host at 10.110.10.8/24 to access the Internet.

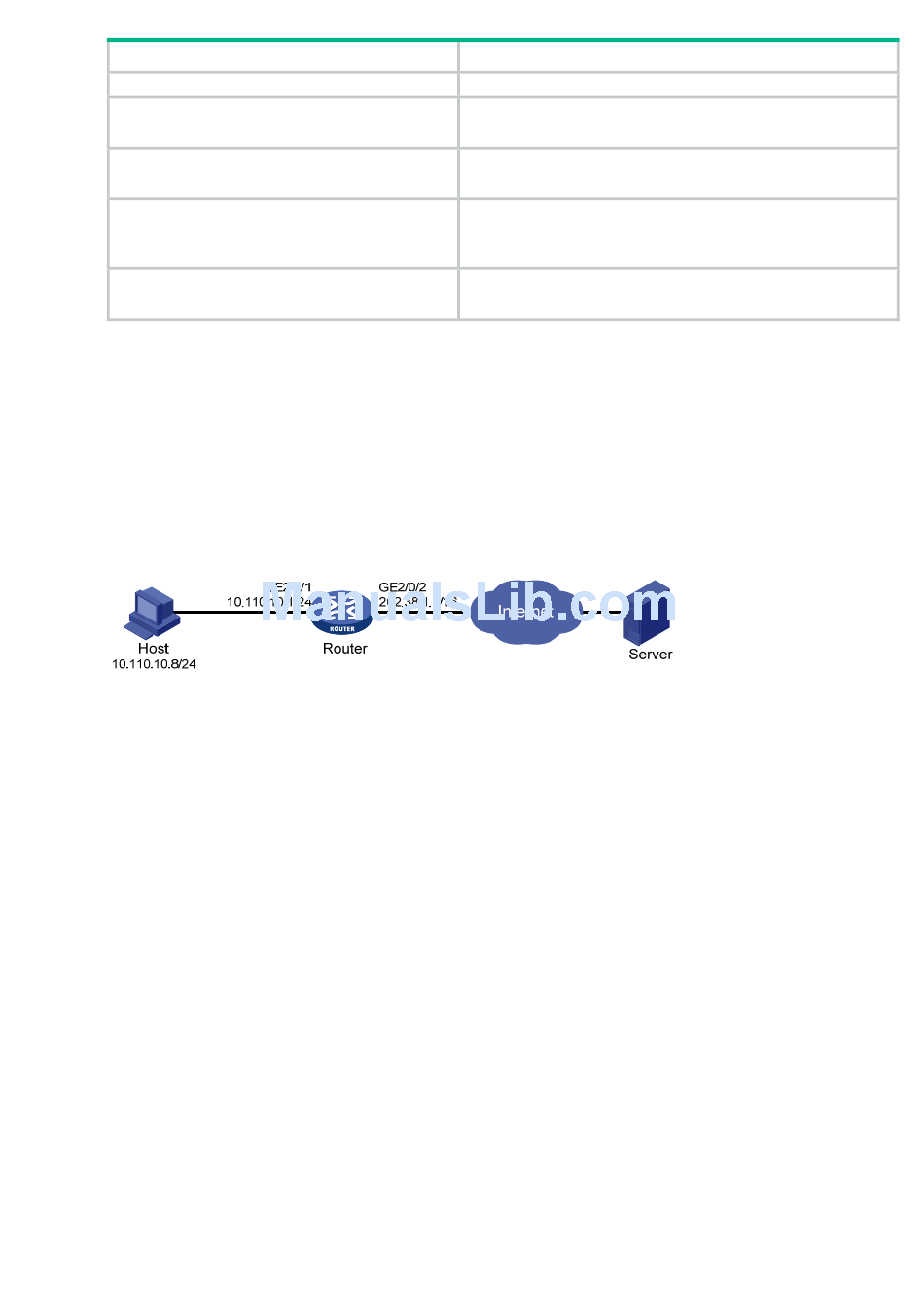

Figure 63 Network diagram
Configuration procedure
# Specify IP addresses for the interfaces on the router. (Details not shown.)
# Configure a one-to-one static NAT mapping between the private address 10.110.10.8 and the
public address 202.38.1.100.
<Router> system-view
[Router] nat static outbound 10.110.10.8 202.38.1.100
# Enable static NAT on GigabitEthernet 2/0/2.
[Router] interface gigabitethernet 2/0/2
[Router-GigabitEthernet2/0/2] nat static enable
[Router-GigabitEthernet2/0/2] quit
Verifying the configuration
# Verify that the host at 10.110.10.8/24 can access the server on the Internet. (Details not shown.)
# Display static NAT configuration.
[Router] display nat static
Static NAT mappings:
Totally 1 outbound static NAT mappings.
IP-to-IP:
Local IP
Global IP
Config status: Active
Global flow-table status: Active
: 10.110.10.8
: 202.38.1.100
