mundoclima MUCO-H6T Service Manual page 72

MUCO-60-H6T

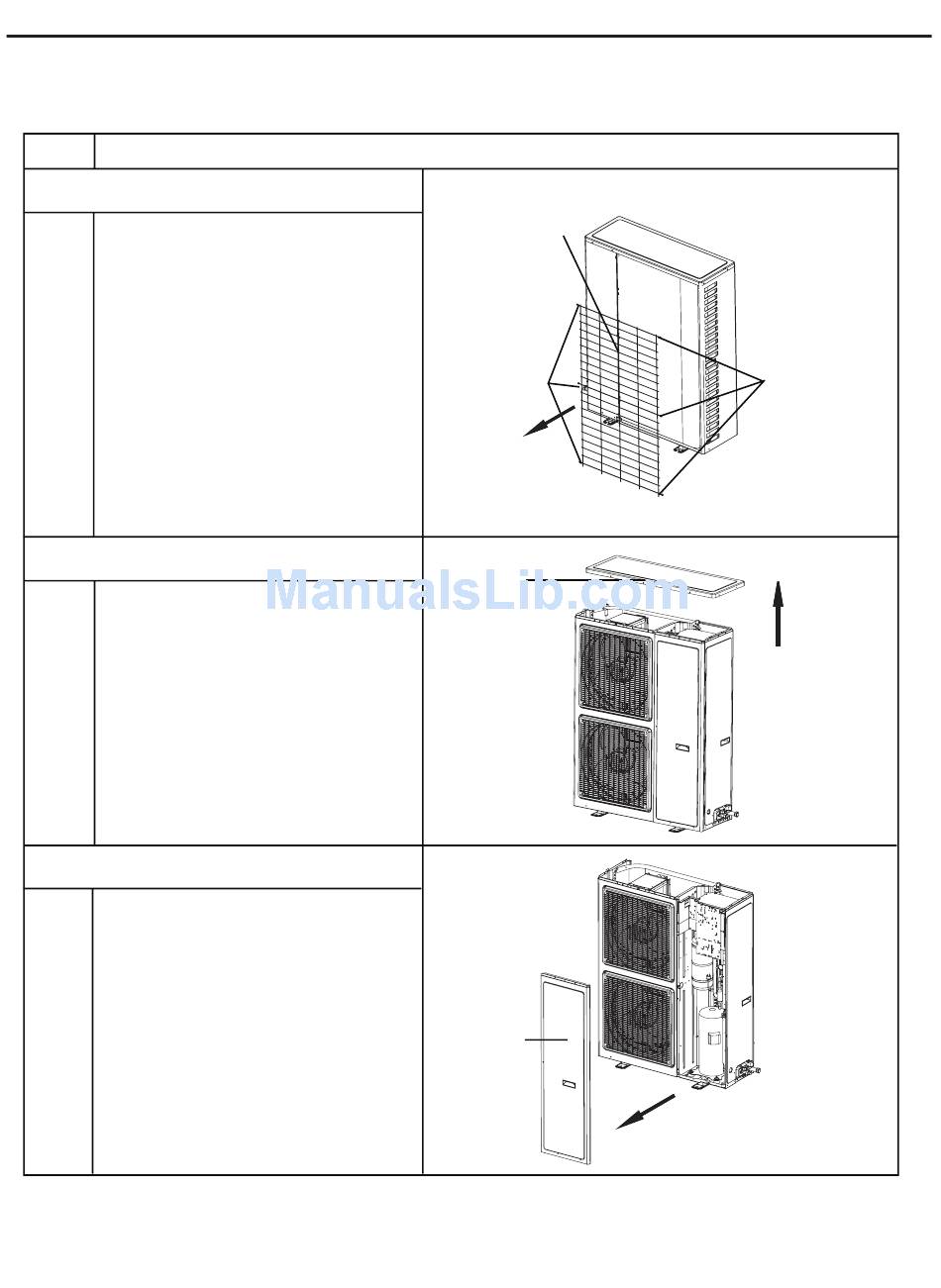

Steps
1. Remove the rear grille
Remove the tapping screws connecting the
back grille with the back-side plate, the front
case and the chassis. Remove the back
grille.
2. Remove the top cover
Remove the screws fixing the top cover.
Raise the top cover to remove it.
3. Remove the front side plate
Remove the 3 tapping screws fixing the
front side plate. Take the front side plate
outward to remove it.
Procedure
rear grille
screws
top cover
front side plate
72
Service Manual
screws
