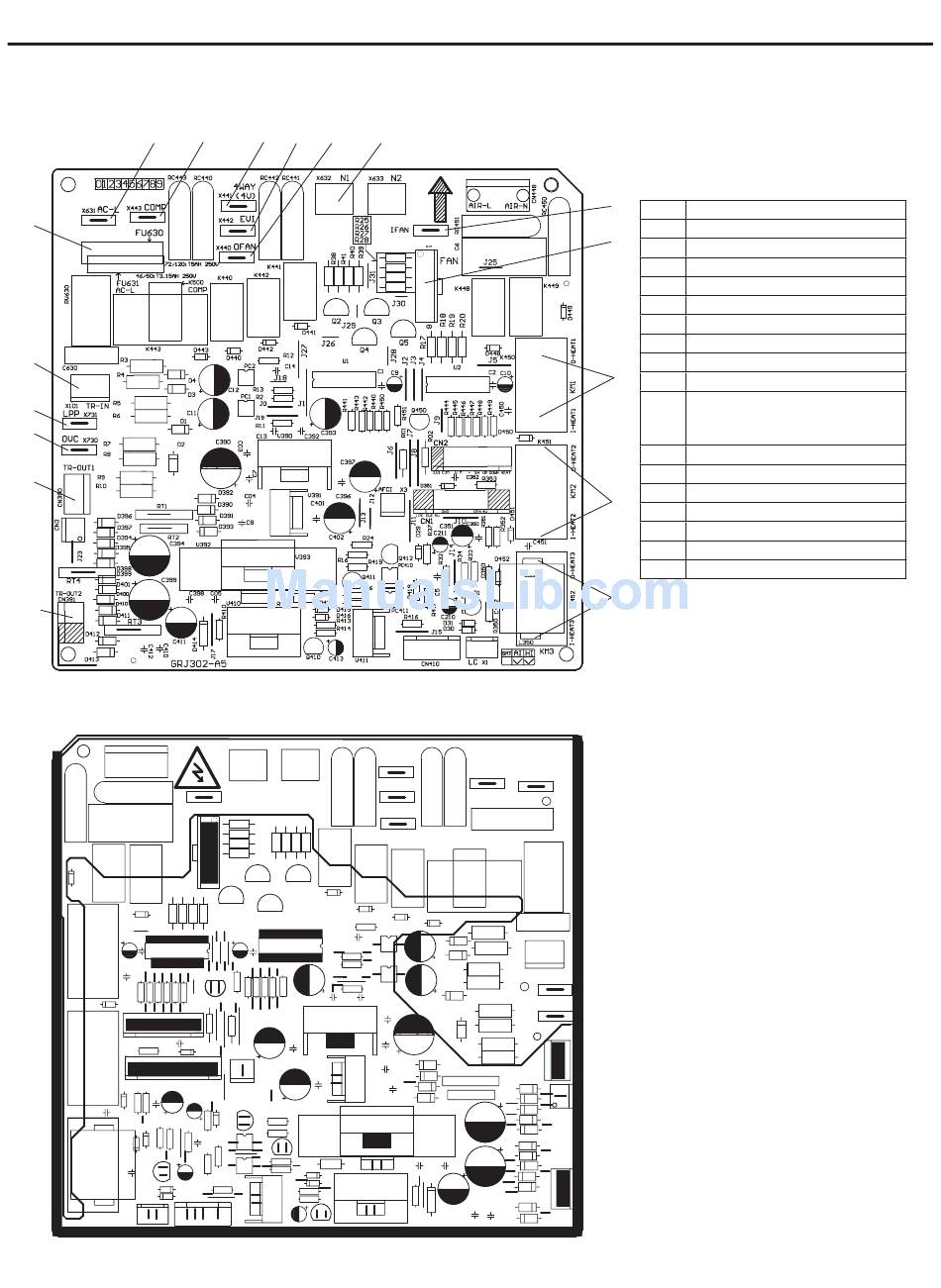

5.2 PCB Printed Diagram

MUCO-48-H6T
7
8
● Top view
6
5
4
3
2
1
● Bottom view
9 11 12
10
13
14
15
16
17
17
Service Manual
No. Name
1 Output terminal 2 of transformer
2 Output terminal 1 of transformer
3 Terminal of high pressure switch
4 Terminal of low pressure switch
5 Input terminal of transformer
6 Fuse
7 Terminal of live wire
8 Control terminal of compressor
9 Control terminal of 4-way valve
Control terminal of electric
10 heating belt (only for the model
with this function)
11 Control terminal of outdoor fan
12 Terminal of neutral wire
13 Live wire terminal of indoor fan
14 Needle stand of indoor fan
15 Wiring terminal 1 of E-heater
16 Wiring terminal 2 of E-heater
17 Wiring terminal 3 of E-heater
