mundoclima H7 Series Installation And Owner's Manual
High pressure duct inverter split-type room air conditioner
Hide thumbs
Also See for H7 Series:
- Installation and owner's manual (70 pages) ,
- Service manual (63 pages) ,
- Service manual (80 pages)
Related Manuals for mundoclima H7 Series
Summary of Contents for mundoclima H7 Series

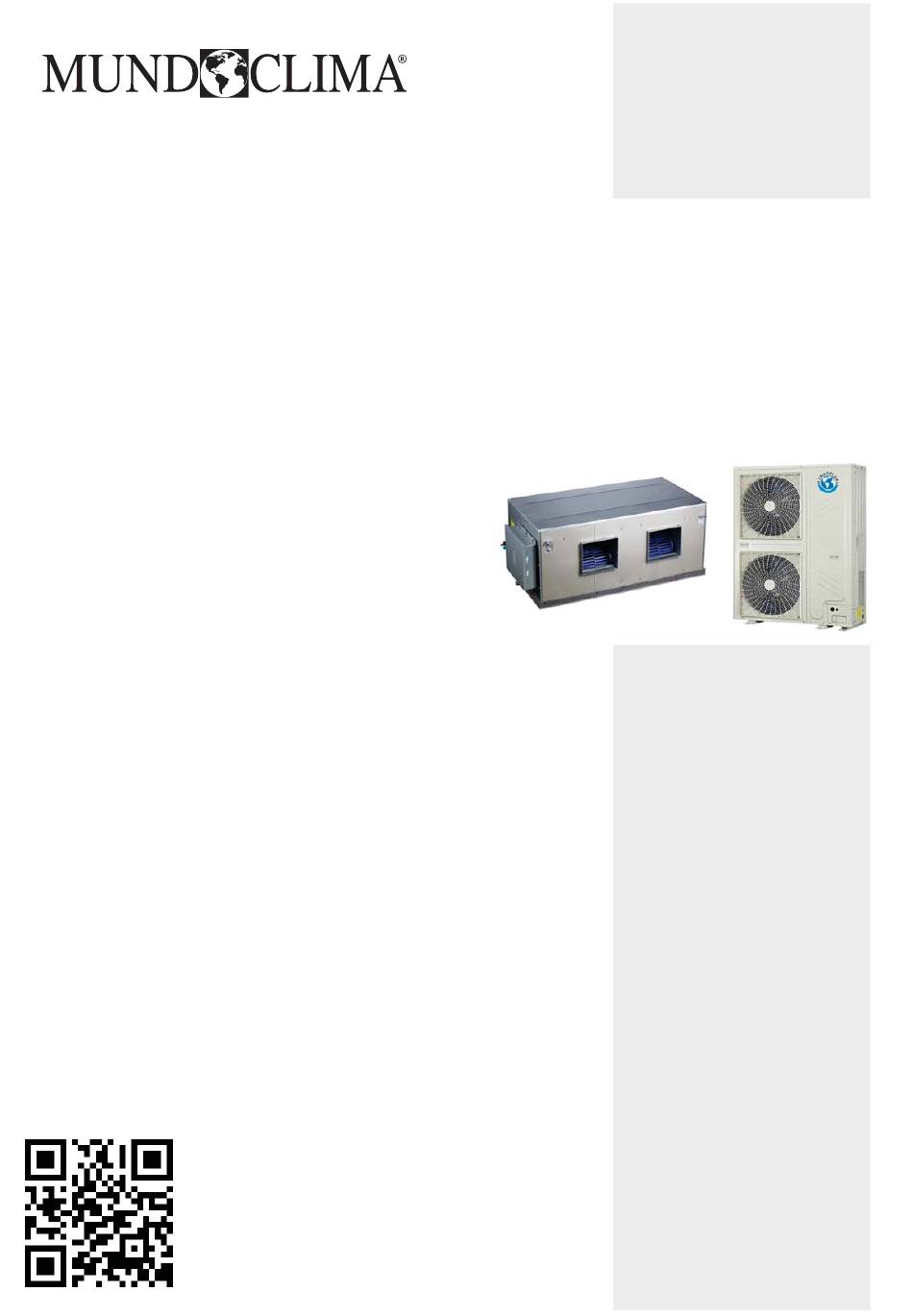

- Page 1 HIGH PRESSURE DUCT SERIE H7 Installation and owner's manual and information requirements MUCHR-96-H7T Thank you very much for purchasing our products. CL20259 Please read this manual carefully before installing English and using the unit. www.mundoclima.com...
-
Page 2: Table Of Contents
Installation and owner's manual CONTENTS Installation manual ..................3 Owner's manual ..................18 Wired controller ..................28 EU 2016/2281 Information requirements (for units > 12kW) CONTENTS Information requirements for air-to-air air conditioners ......35 Information requirements for heat pumps ..........36 /DWKZd Ed Thank you for selectiong super quality Air Conditiones. -
Page 3: Installation Manual
INSTALLATION MANUAL Please read this manual carefully before installing and using the unit. INVERTER SPLIT-TYPE ROOM AIR CONDITIONER The design and specifications are subject to change without prior notice for product improvement. Read This Manual: Inside you will find many helpful hints on how to use and maintain your air conditioner properly. - Page 4 INSTALLATION MANUAL Install according to this installation instructions strictly. CONTENTS PAGE If installation is defective, it will cause water leakage, electrical PRECAUTIONS .................4 shock and fire. INSTALLATION INFORMATION ............5 When installing the unit in a small room, take measures ACCESSORIES ...................6 against to keep refrigerant concentration from exceeding...
- Page 5 INSTALLATION MANUAL If the refrigerant leaks during installation, ventilate the area There are inflammable materials or gas. immediately. There is acid or alkaline liquid evaporating. Toxic gas may be produced if the refrigerant comes into the place contacting with fire. Other special conditions.
- Page 6 INSTALLATION MANUAL ACCESSORIES Please check whether the following fittings are of full scope. If there are some spare fittings , please restore them carefully. Accessory name of Qty. Shape Purpose indoor unit Installation and owner's This manual manual Sealing tape Sealed tube interface Connect to water drainage Water connective pipe...
- Page 7 INSTALLATION MANUAL INDOOR UNIT INSTALLATION 1.2 Install the main body Installing 10 hanging screw bolts. (4 bolts) Installation place Please refer to the following figures for positioning 4 screw bolts. The indoor unit should be installed in a location that meets the Evaluate the ceiling construction and please install with following requirements: hanging screw bolts.
- Page 8 INSTALLATION MANUAL 1.2.4 Steel roof beam structure Install and use directly the supporting angle steel. Hanging screw bolt Supporting Hanging bolts angle steel Overhanging the indoor unit (1) Overhang the indoor unit onto the hanging screw bolts with block. (2) Position the indoor unit in a flat level by using the level indicator, unless it may cause leakage.
- Page 9 INSTALLATION MANUAL The positioning of ceiling hole, indoor unit and hanging screw bolts Pendant bolt hole 4-12x25 Gas side liquid side outlet Air outlet duct connection screw hole location diagram 1138 Return air duct rivet screw hole location diagram Unit: mm NOTE All the figures in this manual are for explanation purpose only.
- Page 10 INSTALLATION MANUAL Fan performances Static pressure curve For Setting Static pressure For Setting Static pressure ENC2 Code 51~80 81~120 121~150 High static pressure High static pressure 0~50 Factory Setting Factory Setting Static curve (ENC2) 0 Static curve (ENC2) 2 High air High air Medium air Medium air...
- Page 11 INSTALLATION MANUAL OUTDOOR UNIT INSTALLATION Figure of body size Precautions for selecting the location 1) Choose a place solid enough to bear the weight and vibration of the unit, where the operation noise will not be amplified. 2) Choose a location where the hot air discharged from the unit or the operation noise will not cause a nuisance to the neighbours of the user.
- Page 12 INSTALLATION MANUAL 2.3 Installation guidelines 2.4 Outdoor unit installation Where a wall or other obstacle is in the path of outdoor unit inlet or outlet airflow, follow the installation guidelines below. 1) Installing outdoor unit For any of the below installation patterns, the wall height on the When installing the outdoor unit, refer to "Precautions for outlet side should be 1200mm or less.
- Page 13 INSTALLATION MANUAL INSTALL THE REFRIGERANT PIPE 3.1 Flaring the pipe end 1) Cut the pipe end with a pipe cutter. All field piping must be provided by a licensed refrigeration 2) Remove burrs with the cut surface facing downward so that the technician and must comply with the relevant local and chips do not enter the pipe.
- Page 14 INSTALLATION MANUAL 3.3 Purging air and checking gas leakage Pipe length Up to 15m More than 15m When piping work is completed, it is necessary to purge the Run time Not less than 10 min Not less than 15min air and check for gas leakage. *2.
- Page 15 INSTALLATION MANUAL CONNECT THE DRAIN PIPE 2) Be sure to insulate both the gas and liquid piping. Use separate thermal insulation pipes for gas and liquid 4.1 Install the drain pipes. refrigerant pipes. See the figure below. Keep piping as short as possible and slope it downwards at a gradient of at least 1/100 so that air may not remain trapped inside the pipe.
- Page 16 INSTALLATION MANUAL ELECTRIC WIRING WORK The specification of power Indoor unit Outdoor unit General instructions All field wiring and components must be installed by a licensed Power 380-415V 3N~ 50Hz 220-240V~ 50Hz electrician and must comply with relevant European and national regulations.
- Page 17 INSTALLATION MANUAL PRECAUTIONS ON REFRIGERANT LEAKAGE 6.1 Important information for the used refrigerant This air conditioner(A/C) adopts inncouous and nonflammable refrigerant. The locating room of the A/C should big engough that any refrigerant leakage is unable to reach critical thickness. This product has the fluorinated gas, it is forbidden to release to air.
-
Page 18: Owner's Manual
OWNER´S MANUAL Please read this manual carefully before installing and using the unit. INVERTER SPLIT-TYPE ROOM AIR CONDITIONER The design and specifications are subject to change without prior notice for product improvement. Read This Manual: Inside you will find many helpful hints on how to use and maintain your air conditioner properly. - Page 19 OWNER'S MANUAL OUTDOOR UNIT INDOOR UNIT Fig.1 INDOOR UNIT OUTDOOR UNIT Connecting pipe Air outlet Air inlet Air inlet Air filter (on some models) Air inlet (side and rear) Electric control cabinet Air outlet Wire controller Drain pipe NOTE All the pictures in this manual are for explanation purpose only. They may be slightly different from the air conditioner you purchased(depend on model).The actual shape shall prevail.
- Page 20 OWNER'S MANUAL CONTENTS PAGE Never use a flammable spray such as hair spray,lacquer or paint near the unit. IMPORTANT SAFETY INFORMATION............9 It may cause a fire. PARTS NAMES..................Never touch the air outlet or the horizontal blades while AIR CONDITIONER OPERATIONS AND PERFORMANCE......the swing flap is in operation.
- Page 21 OWNER'S MANUAL In order to avoid injury, do not remove the fan guard of This appliance is not intended for use by persons the outdoor unit. (including children) with reduced physical, sensory mental capabilities, lack experience Do not operate the air conditioner with a wet hand. knowledge, unless they have been given supervision or An electric shock may happen.
- Page 22 OWNER'S MANUAL 4. HINTS FOR ECONOMICAL OPERATION 3. AIR CONDITIONER OPERATIONS AND PERFORMANCE The following should be noticed to ensure an economical operation. Use the system in the following temperature for safe and (Refer to corresponding chapterfor details) effective operation.The Max operation temperature for the air conditioner.(Cooling/Heating) Adjust the air flow direction properly to avoid winding toward your body.
- Page 23 OWNER'S MANUAL Maintenance after a long stop period Clean the air filter (Vacuum cleaner or pure water may be used to clean the air filter. If the dust accumulation is too heavy , (eg. at the beginning of the season) please use soft brush and mild detergent to clean it and dry out Check and remove everything that might be blocking inlet and in cool place) .
- Page 24 OWNER'S MANUAL Symptom 3.2: Indoor unit, outdoor unit The air-in side should face up when using vacuum cleaner. (Refer to Fig.5-4) When the system is changed over to heating operation after The air-in side should face down when using water. (Refer to defrost operation Moisture generated by defrost becomes Fig.5-3) steam and is exhausted.
- Page 25 OWNER'S MANUAL 7. TROUBLESHOOTING 7.1. Troubles and causes of air conditioner CAUTION If one of the following malfunctions occur, stop operation, shut Please cut off the power supply when appearing the off the power, and contact with your dealer. above malfunction, check if the voltage provided is out of The operation lamp is flashing rapidly (5Hz).
- Page 26 OWNER'S MANUAL Table 7-2 Outdoor unit error codes Fault Recovery Failure or Protection Type Display Function Instruction Code Mode 1. When stand by, LED displaying the amount of indoor units online COMM.Fault between DSP and chip Recoverable which communicate with outdoor units. COMM.Fault between communication chip and 2.
- Page 27 OWNER'S MANUAL 7.2. Troubles and causes of wire controller Before asking for serving or repairing , check the following points. (Refer to Table 7-4) Table 7-4 Symptoms Solution Causes Check whether the MODE When the automatic mode is indicated on the display is selected, the air conditioner will "AUTO"...
-
Page 28: Wired Controller
WIRED CONTROLLER ● This manual gives detailed description of the precautions that should be brought to your attention during operation. ● In order to ensure correct service of the wired controller please read this manual carefully before using the unit. ●... - Page 29 WIRED CONTROLLER Owner's manual Safety precautions 7KLV PDQXDO JLYHV GHWDLOHG GHVFULSWLRQ RI WKH SUHFDXWLRQV WKDW VKRXOG EH EURXJKW WR \RXU DWWHQWLRQ GXULQJ RSHUDWLRQ The following contents are stated on the product and the operation ,Q RUGHU WR HQVXUH FRUUHFW VHUYLFH RI WKH ZLUHG UHPRWH manual, including usage, precautions against personal harm and FRQWUROOHU SOHDVH UHDG WKLV PDQXDO FDUHIXOO\ EHIRUH XVLQJ WKH property loss, and the methods of using the product correctly and...
- Page 30 WIRED CONTROLLER $IWHU ILQLVK DGMXVWLQJ WKH WLPHU RQ VHWWLQJ SUHVV WKH &$87,21 EXWWRQ RU ZDLW IRU VHFRQGV WR FRQILUP DQG H[LW WKH WLPHU RQ VHWWLQJ 7KH ZLUHG UHPRWH FRQWUROOHU ZLOO QRW UHFHLYH WKH VZLQJ 8QGHU WKH WLPHU RQ VHWWLQJ VWDWXV SUHVV WKH WLPHUFORFN FRQWUROOLQJ LQVWUXFWLRQ VHWWLQJ EXWWRQ WKHQ HQWHU LQWR WKH WLPHU RII VHWWLQJ )RU WKH LQGRRU XQLW ZLWK VZLQJLQJ IXQFWLRQ \RX FDQ...
- Page 31 WIRED CONTROLLER $LU ILOWHU FOHDQQLQJ UHPLQGLQJ IXQFWLRQ 7KH ZLUHG UHPRWH FRQWUROOHU UHFRUGV WKH WRWDO UXQQLQJ WLPH RI WKH LQGRRU XQLW ZKHQ WKH DFFXPXODWHG UXQQLQJ WLPH UHDFKHV WKH SUHVHWWHG YDOXH WKH DLU ILOWHU RI WKH LQGRRU XQLW QHHG WR EH FOHDQHG /RQJ SUHVV IRU VHFRQGV DQG UHVHW WKH UHPLQGLQJ LFRQ DQG WKH ZLUHG UHPRWH FRQWUROOHU ZLOO...
- Page 32 WIRED CONTROLLER Installation manual Safety precautions Installation Location Read the safety precautions carefully before installing the unit. Do not install the unit in a place with much oil, steam, sulfide gas. Otherwise, the Stated below are important safety issues that must be obeyed. product may deform and fail.
- Page 33 WIRED CONTROLLER 4.Back cover installation Buckling position Back cover 5.Wiring A.Wiring, three outletting positions Top side Upper left wire outlet wire outlet Left middle side wire Front cover Straight head screwdriver outlet Fig.5 Cutting place of top Cutting place of upper Cutting place of left side wire outlet left wire outlet...
-
Page 34: Information Requirements For Air-To-Air Air Conditioners
EU 2016/2281 Information requirements (for units > 12kW) CONTENT Information requirements for air-to-air air conditioners ........Information requirements for heat pumps ............ - Page 35 INFORMATION REQUIREMENTS INFORMATION REQUIREMENTS Cooling - Information requirements for air-to-air air conditioners ,QIRUPDWLRQ UHTXLUHPHQWV IRU DLU WR DLU DLU FRQGLWLRQHUV 0RGHO V 08&+5 7HVW PDWFKLQJ LQGRRU XQLWV IRUP 'XFW 08&+5 2XWGRRU VLGH KHDW H[FKDQJHU RI DLU FRQGLWLRQHU $LU ,QGRRU VLGH KHDW H[FKDQJHU RI DLU FRQGLWLRQHU $LU 7\SH FRPSUHVVRU GULYHQ YDSRXU FRPSUHVVLRQ ,I DSSOLFDEOH GULYHU RI FRPSUHVVRU HOHFWULF PRWRU ,WHP...
- Page 36 INFORMATION REQUIREMENTS Heating - Information requirements for heat pumps ,QIRUPDWLRQ UHTXLUHPHQWV IRU KHDW SXPSV 0RGHO V 08&+5 7HVW PDWFKLQJ LQGRRU XQLWV IRUP 'XFW 08&+5 2XWGRRU VLGH KHDW H[FKDQJHU RI KHDW SXPS $LU ,QGRRU VLGH KHDW H[FKDQJHU RI KHDW SXPS $LU ,QGLFDWLRQ LI WKH KHDWHU LV HTXLSSHG ZLWK D VXSSOHPHQWDU\ KHDWHU QR ,I DSSOLFDEOH GULYHU RI FRPSUHVVRU HOHFWULF PRWRU 3DUDPHWHUV VKDOO EH GHFODUHG IRU WKH DYHUDJH KHDWLQJ VHDVRQ SDUDPHWHUV IRU WKH ZDUPHU DQG FROGHU KHDWLQJ VHDVRQV DUH RSWLRQDO...
- Page 38 ASK FOR MORE INFORMATION Phone: (+34) 93 446 27 81 eMail: info@mundoclima.com TECHNICAL ASSISTANCE Phone: (+34) 93 652 53 57 www.mundoclima.com...
