11. Removal Procedure

Caution: discharge the refrigerant completely before removal.

Steps

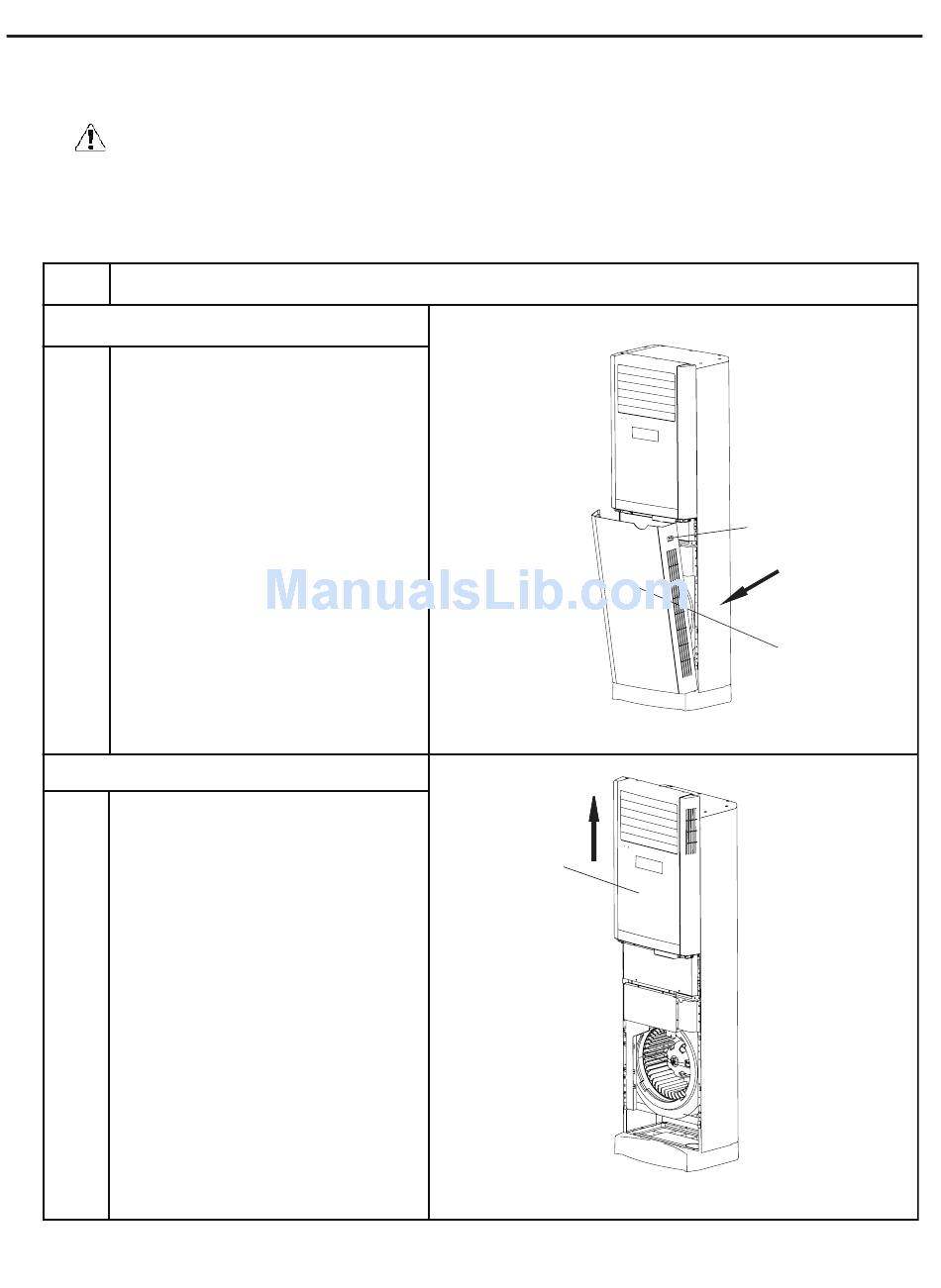

1. Remove air-inlet panel

Remove the screw stopper; remove the

screws fixing air-inlet panel and pull the

upper part of air-inlet panel outwards.

2. Remove air-outlet panel

Remove the screws fixing the top and

lower part of air-outlet panel; push the

air-outlet panel upwards slightly and

then remove the air-outlet panel.

Procedure

air-outlet panel

screw

air-inlet panel
